Home
>>
Mercedes Benz
>>
2013
>>
SLK 250 (172.477) L4-1.8L Turbo (271.861)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

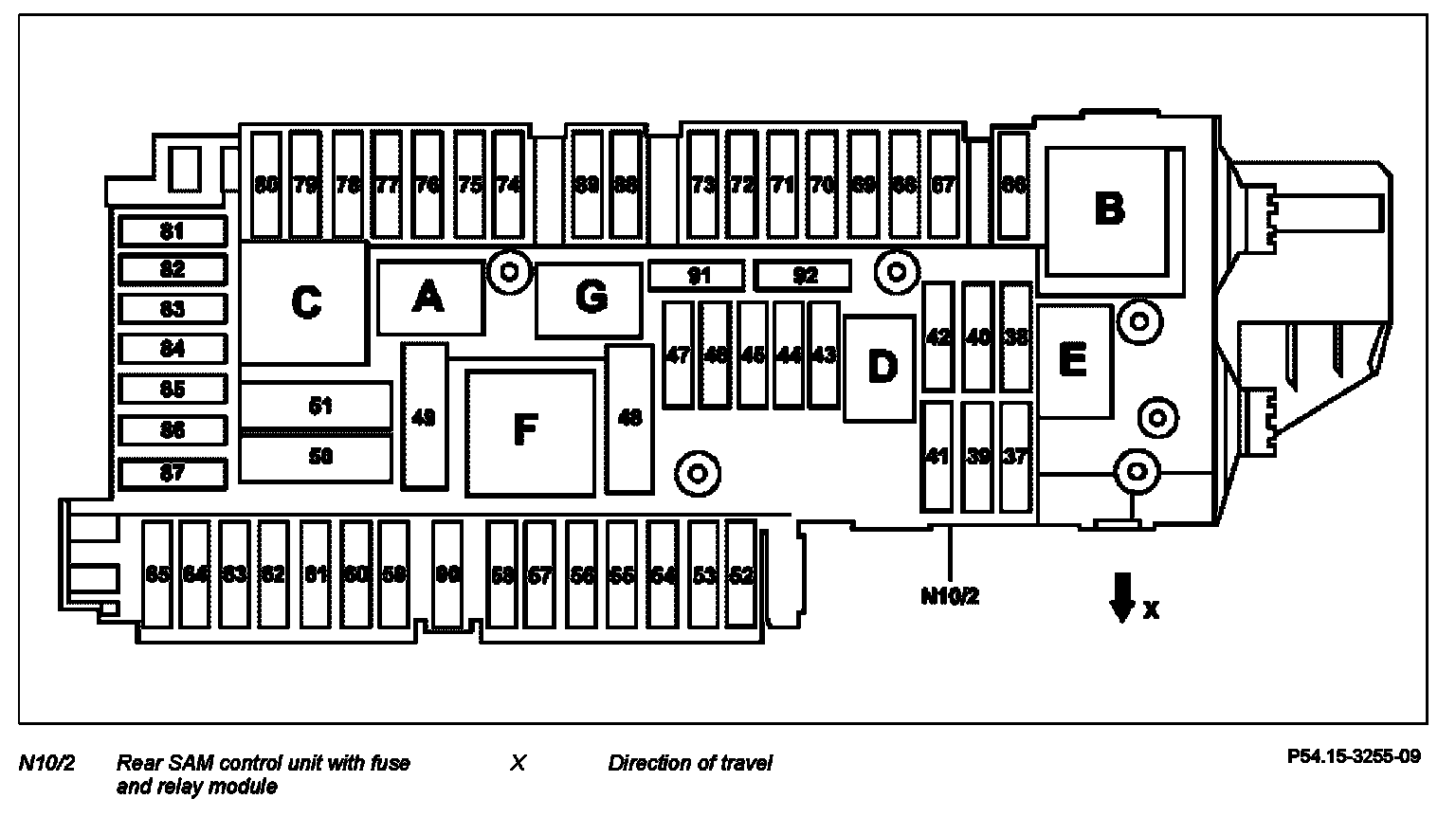

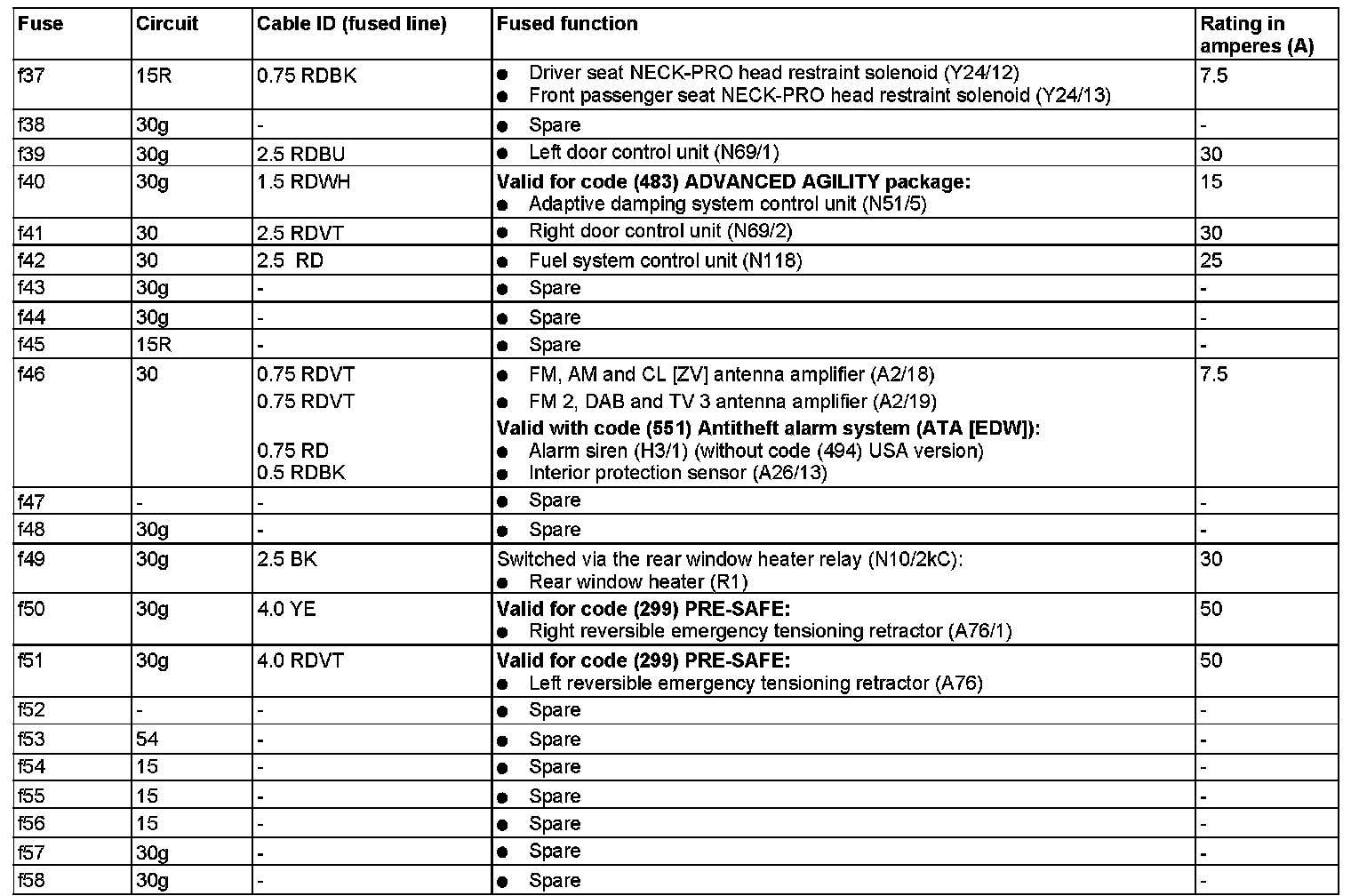

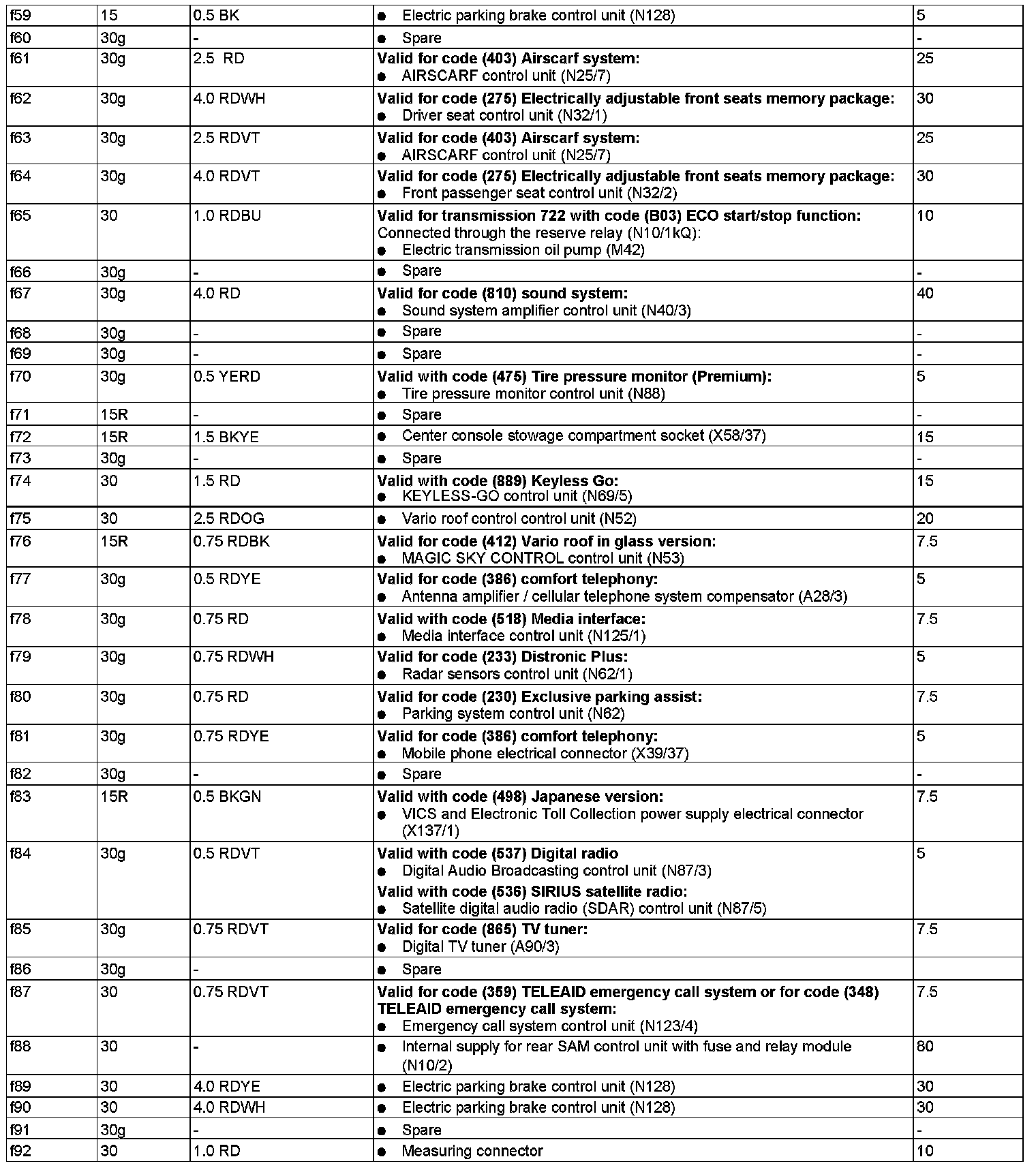

GF54.15-P-1256-06RD Fuse Assignment of Fuse and Relay Box In Trunk
GF54.15-P-1256-06RD Fuse Assignment of Fuse and Relay Box In Trunk
GF54.15-P-1256-06RD Fuse Assignment of Fuse and Relay Box In Trunk
