SLK 250 (172.477) L4-1.8L Turbo (271.861)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
Rear Axle Toe-In
Rear Axle Toe-In

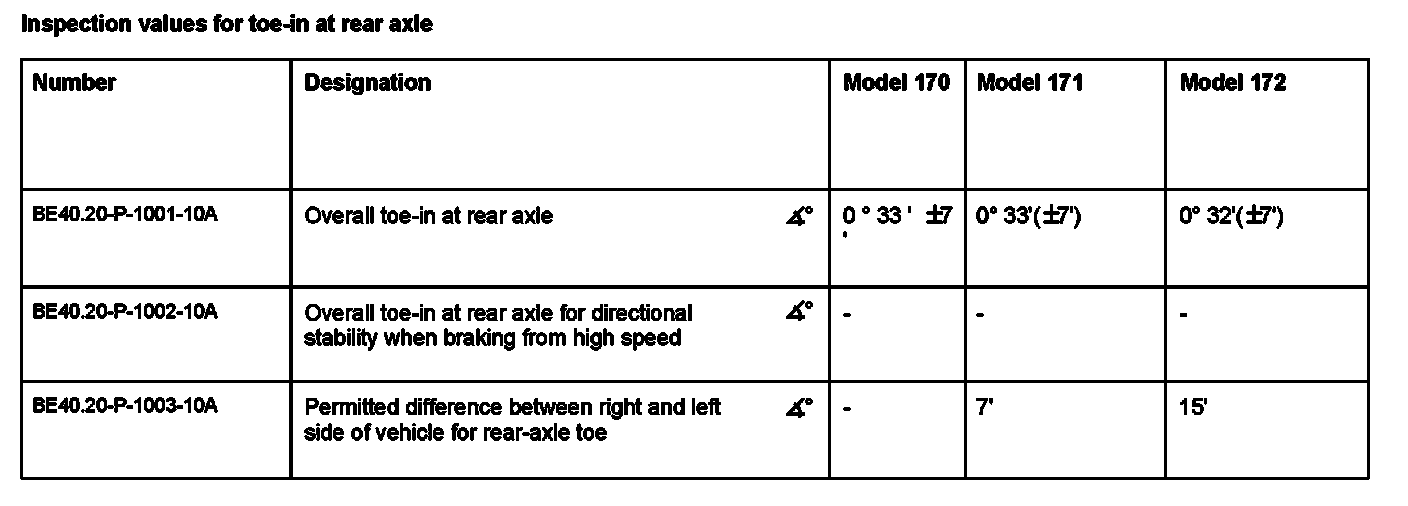

BE40.20-P-1001-10A Inspection Values For Toe-In at Rear Axle
