AR00.60-P-1000-01V Lifting Vehicle With Pit Lift or Workshop Jack

AR00.60-P-1000-01V Lifting Vehicle With Pit Lift Or Workshop Jack


Position plunger of inspection pit lift or of floor jack only at described lift support points, otherwise risk of serious damage to axles, major assemblies or body.
Secure lifted vehicle against tilting and falling down using jack stands.

Lift up vehicle at the front

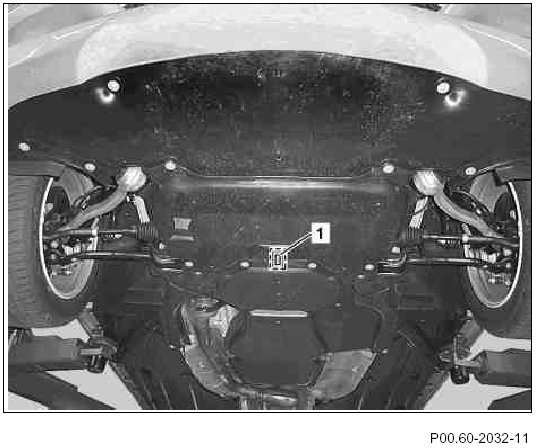

1 Position plunger of inspection pit lift or floor jack at plunger mount (1) at front axle carrier.

Inspection pit lift
gotis://H_00.9_02.0

Floor jack
gotis://H_00.12_01.0

2 Raise vehicle.







Raise vehicle at rear

3 Position plunger of inspection pit lift or floor jack at rear axle differential (50).

Inspection pit lift
gotis://H_00.9_02.0

Floor jack
gotis://H_00.12_01.0

4 Raise vehicle.
