AR00.60-P-0100T Secure Vehicle on Vehicle Lift
AR00.60-P-0100T Secure Vehicle on Vehicle Lift
AR00.60-P-0100T Secure vehicle on vehicle lift

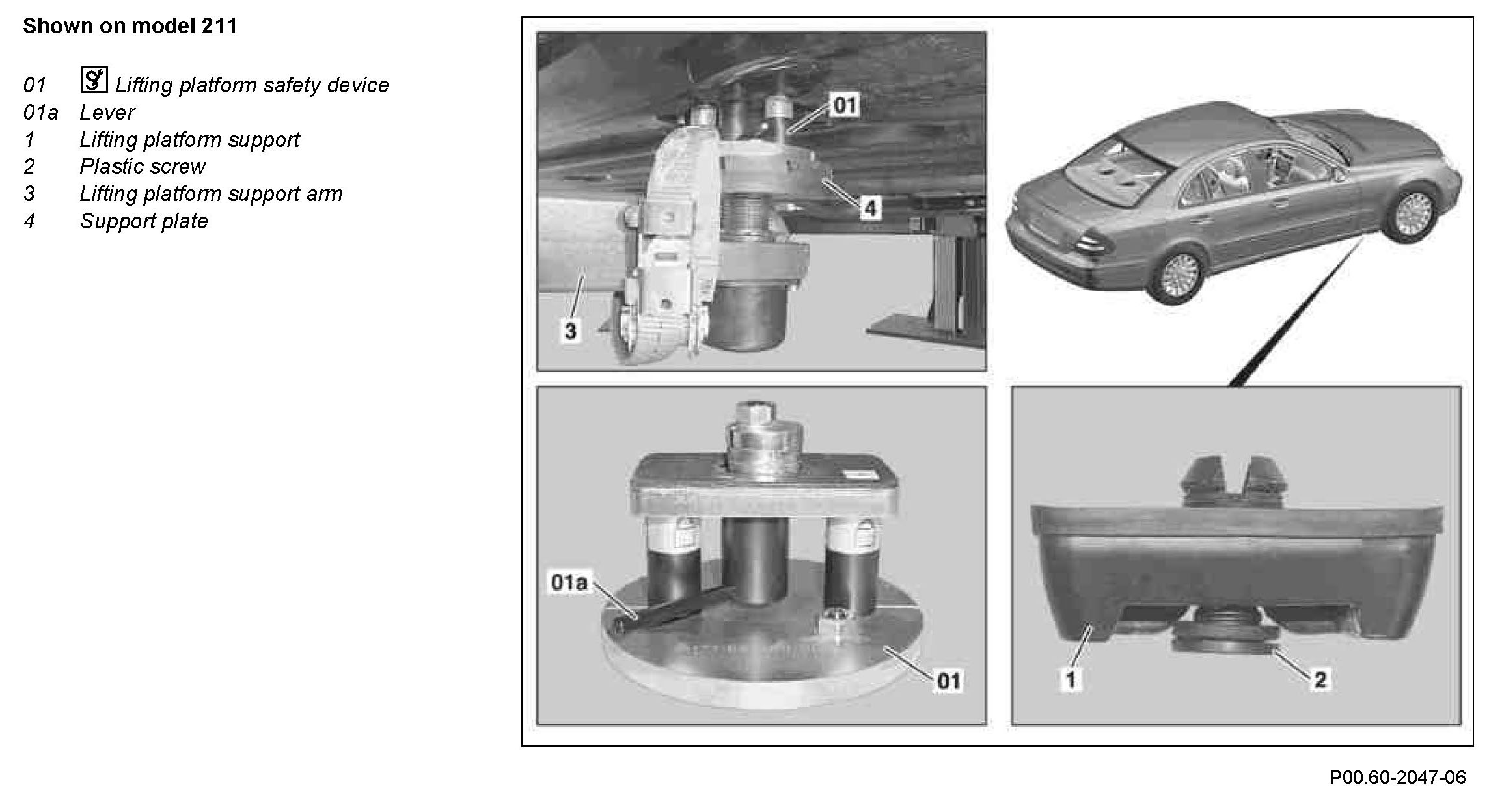

Component Identification:

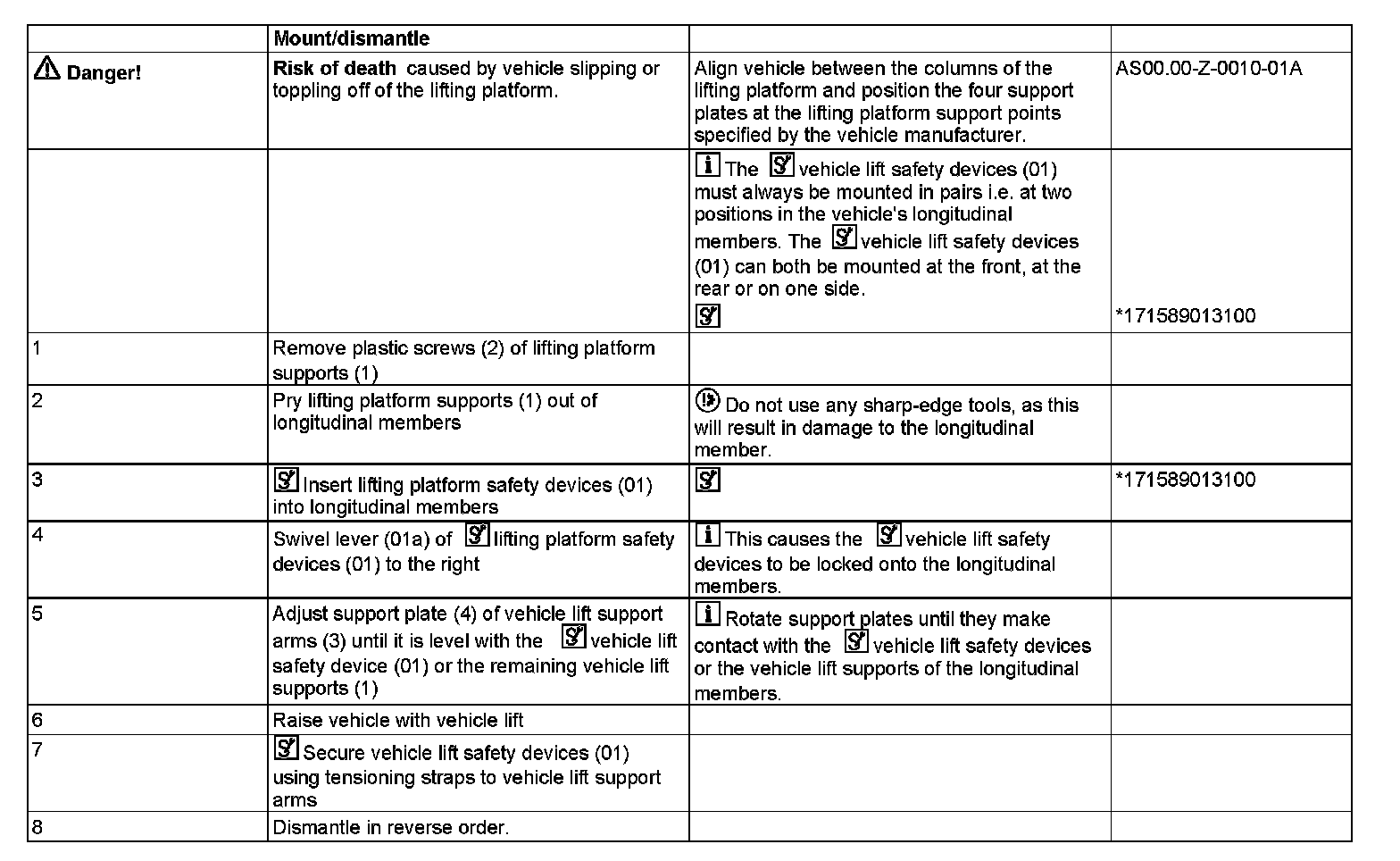

Steps 1-8:

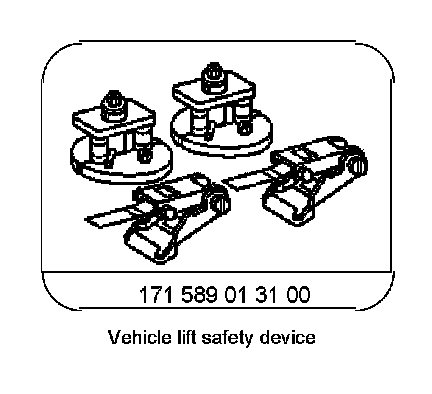

Special Tools:
