Home >> Mercedes Benz >> 2013 >> SL 65 AMG (231.479) V12-6.0L Turbo (279.981) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Rear Axle Toe-In

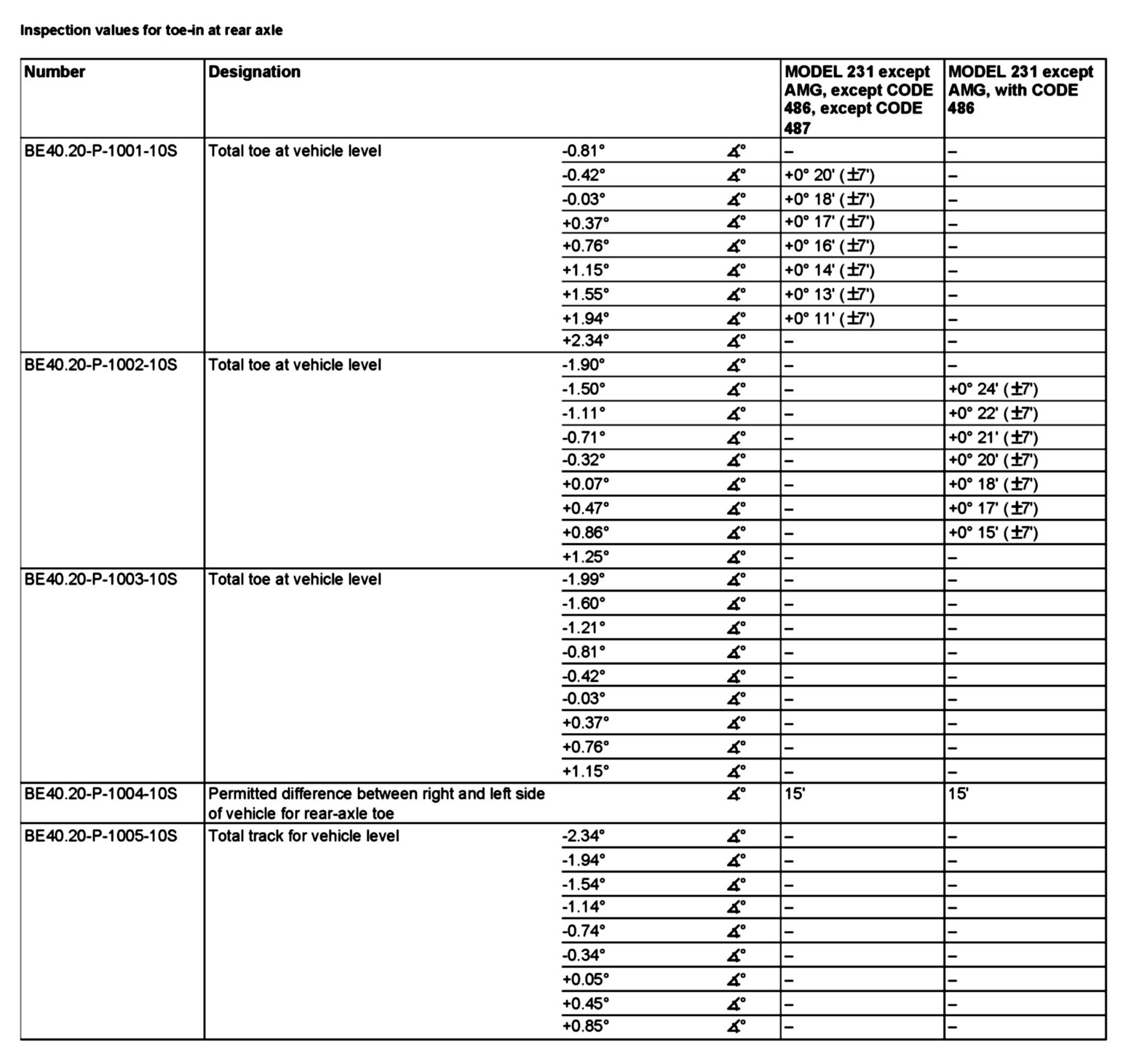

Rear Axle Toe-In



BE40.20-P-1000-10S Rear axle toe-in
