Interior - Center Console/Cup Holder Stays Open

R231 front center console stowage compartment / cupholder remains open

Topic number LI68.20-P-054111

Version 1

Design group 68.20 Center console

Date 11-13-2012

Validity Cleanpoint as of WDD 231 XXX XF 0001536

Reason for change

Complaint:
Front center console stowage compartment / cupholder remains open

Cause:
Insufficient lubrication in the rear of the assembly

Remedy:

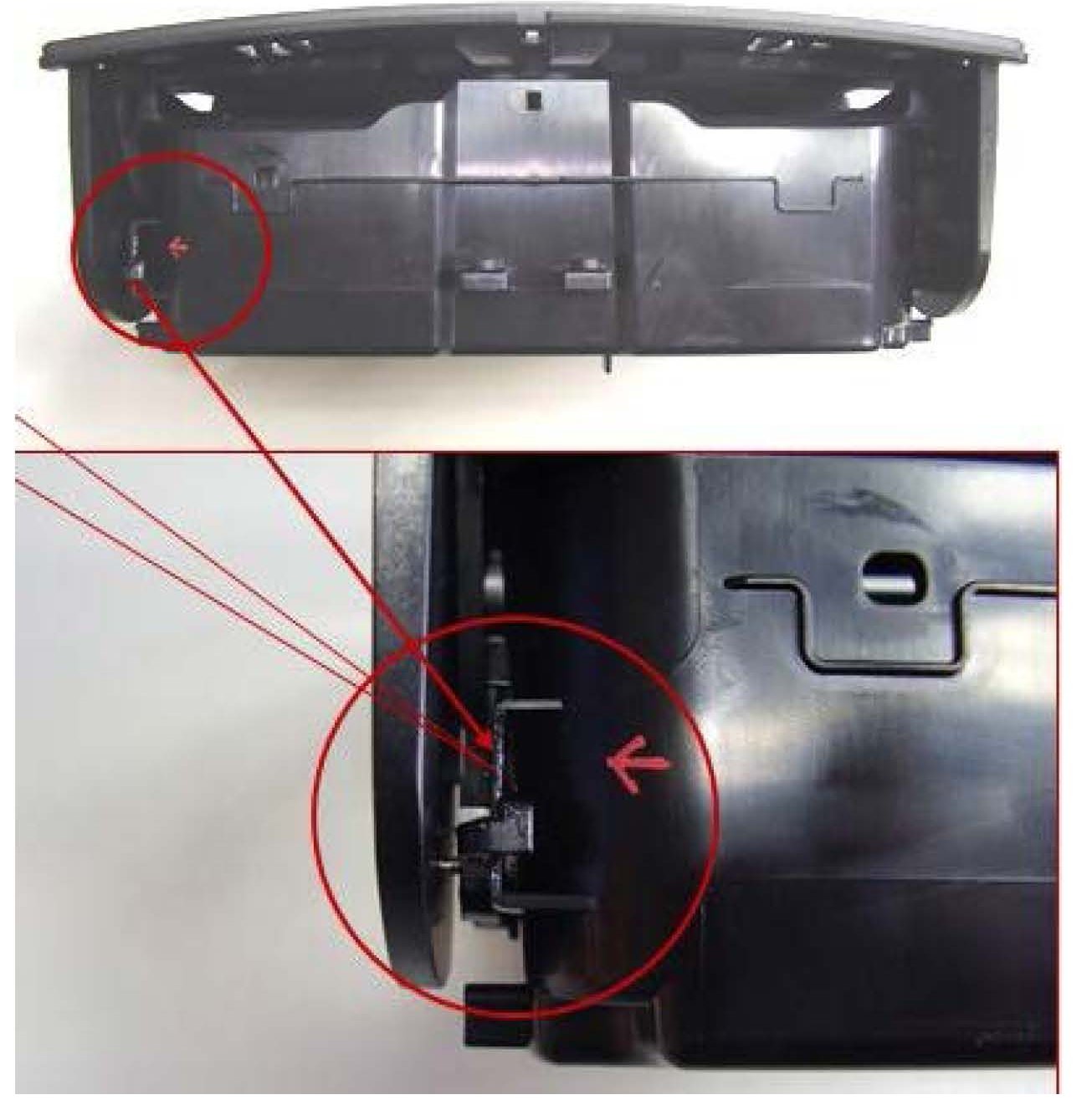

Remove stowage compartment and regrease bar (see picture in attachment).

Cleanpoint as of WDD 231 XXX XF 0001536

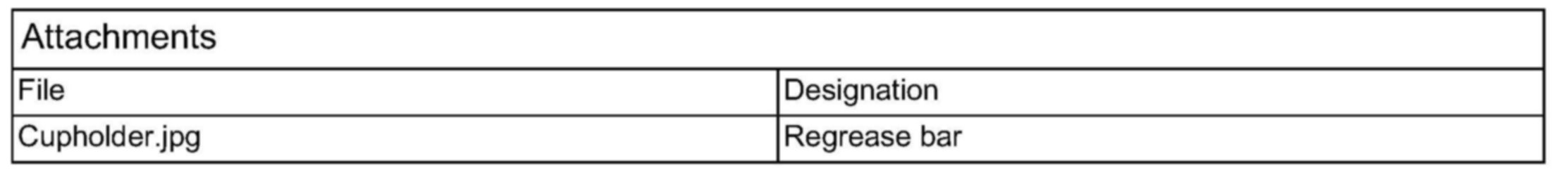

Attachments

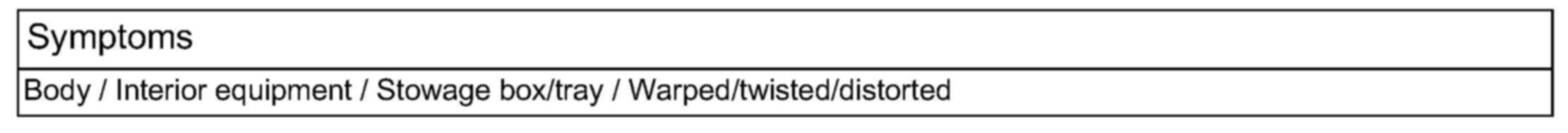

Symptoms

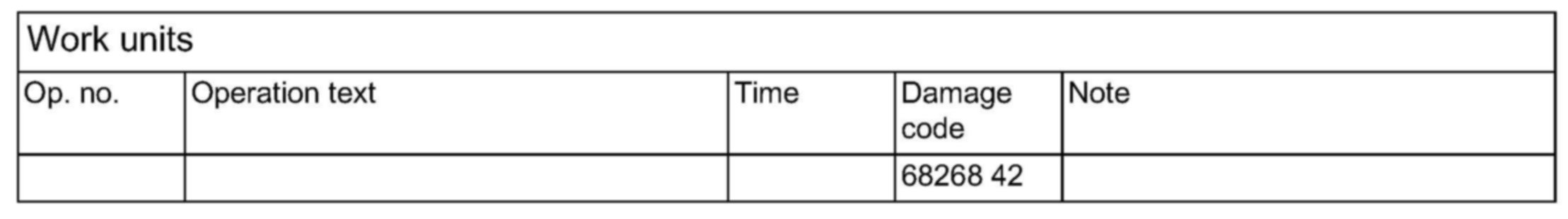

Work units





Attachment
