Home >> Mercedes Benz >> 2013 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Vehicle Level - Front Axle

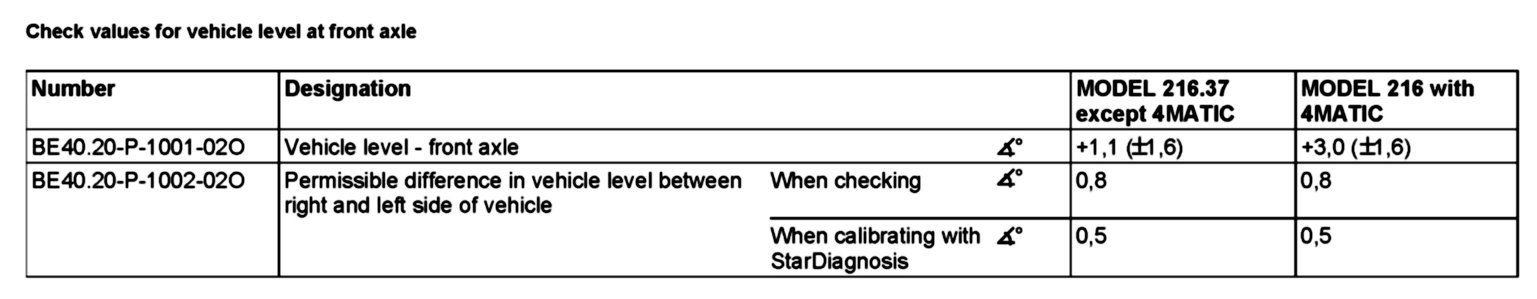

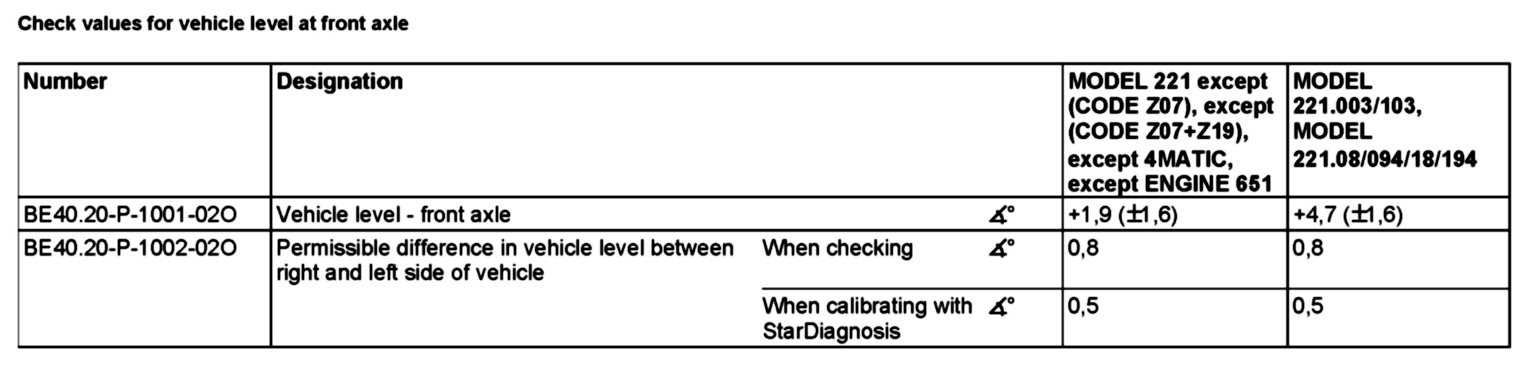

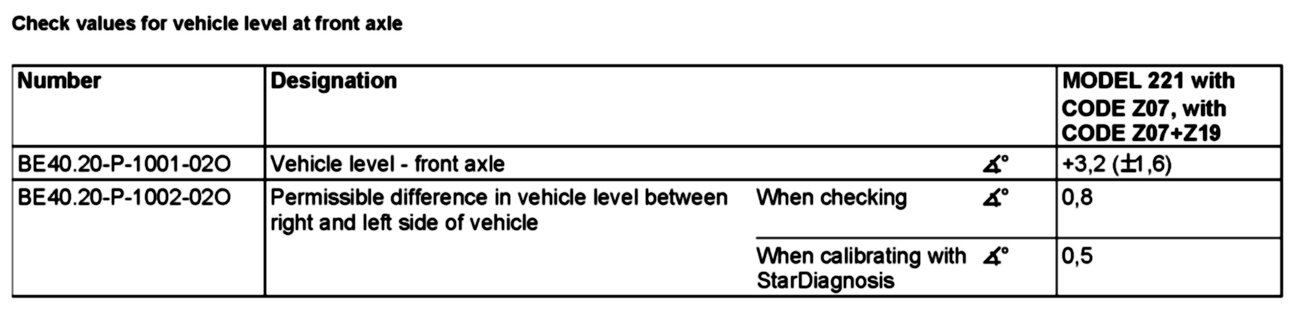

Vehicle Level - Front Axle



BE40.20-P-1000-020 Vehicle level - front axle
