S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
Test Values For Distance and Comparison Measurements on Rear Axle
Test Values For Distance and Comparison Measurements on Rear Axle

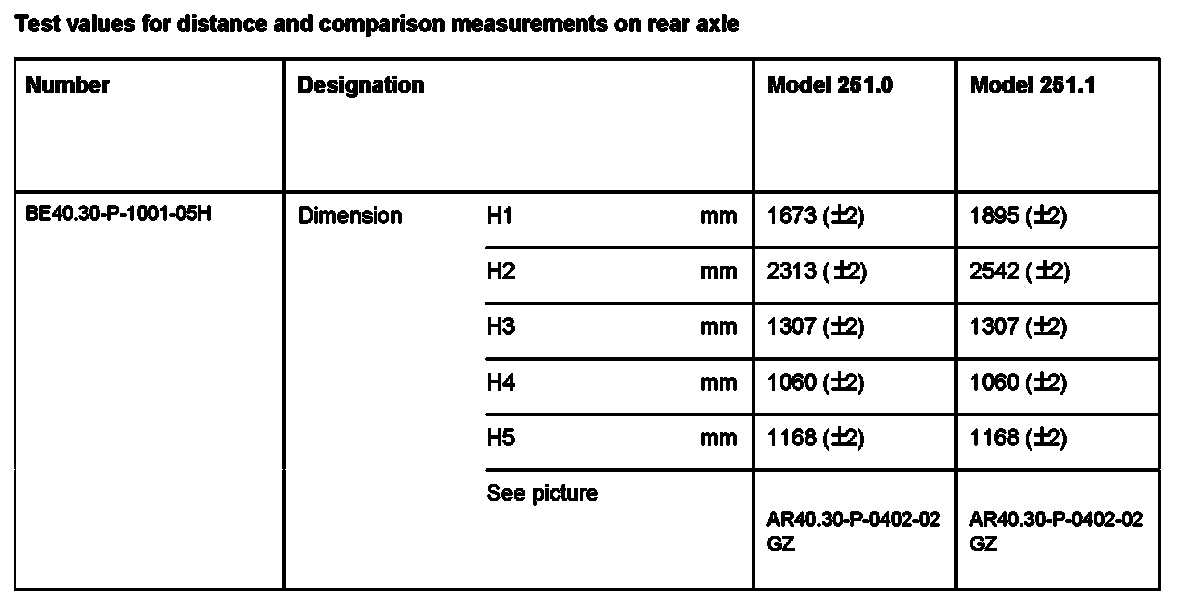

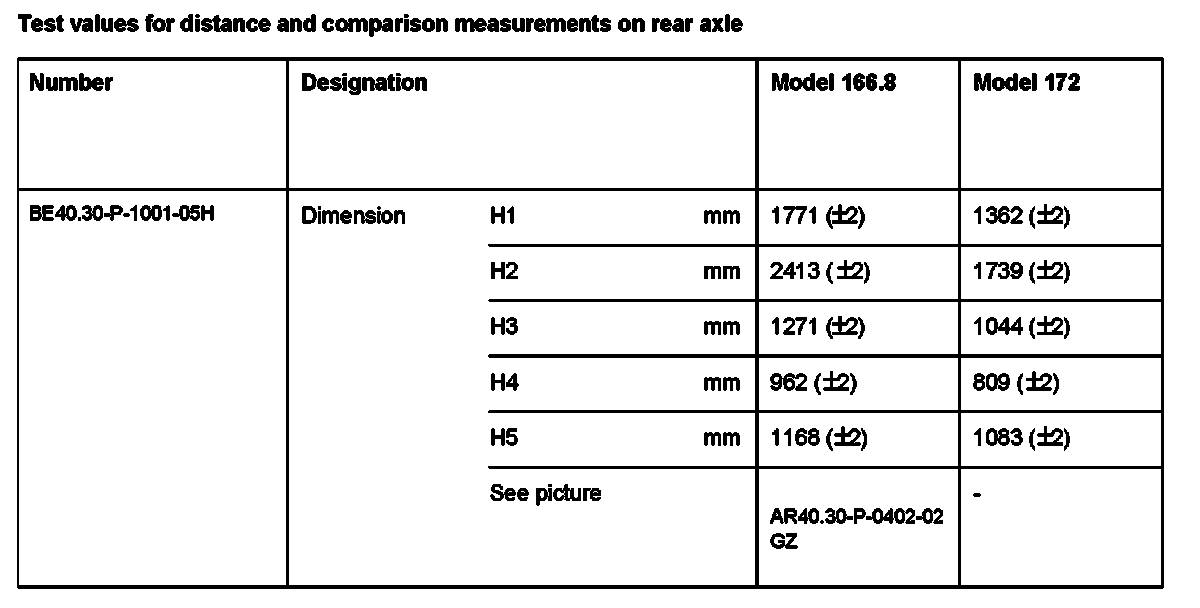

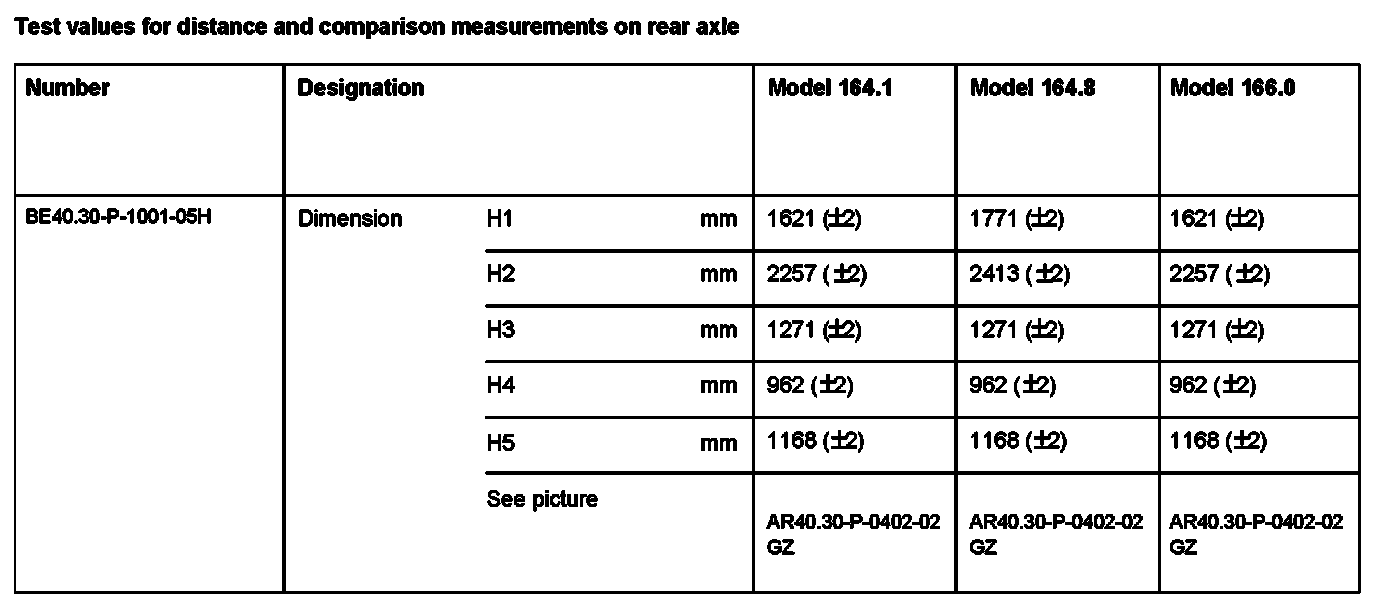

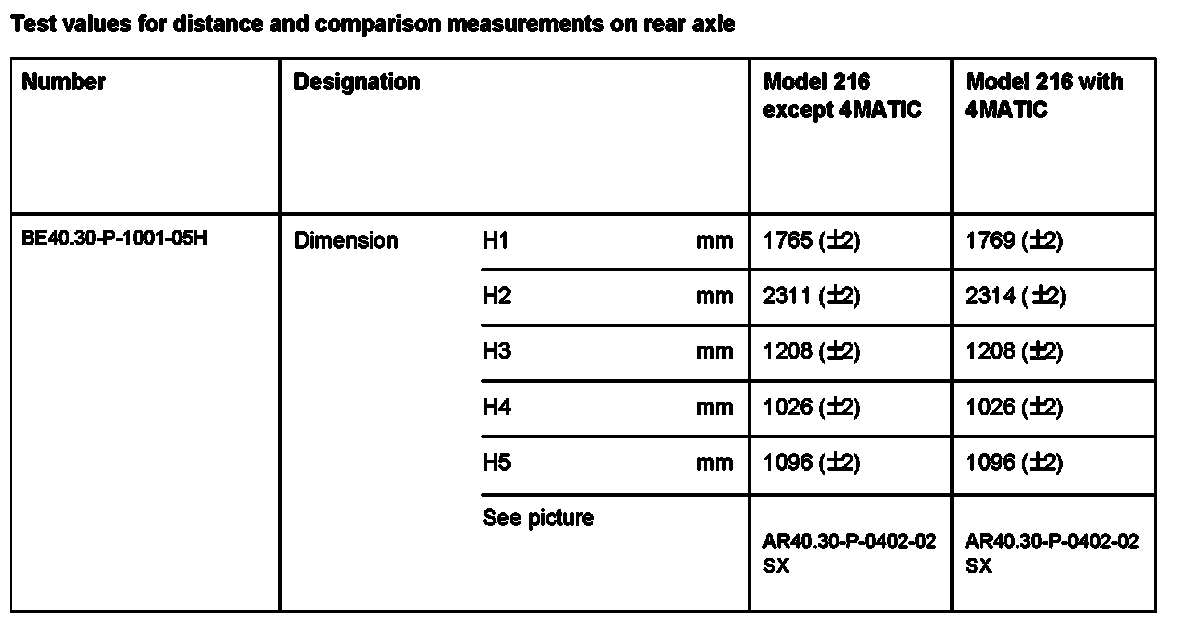

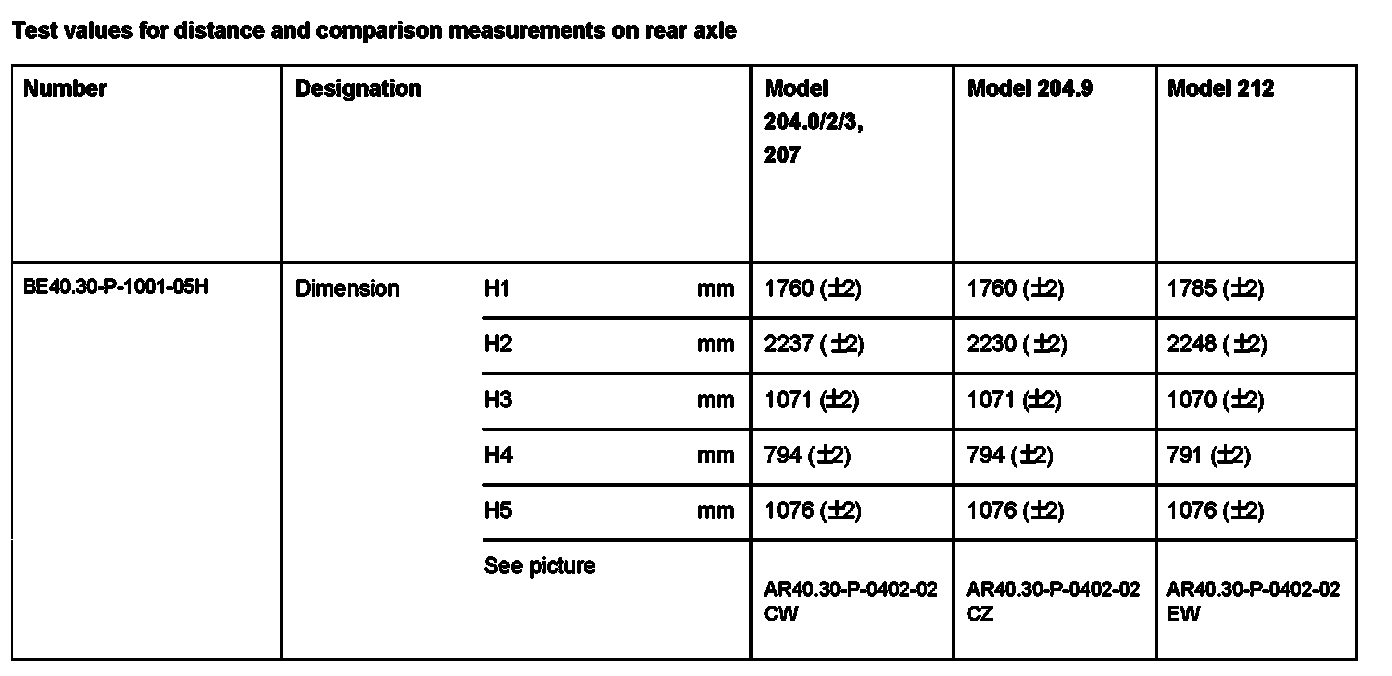

BE40.30-P-1000-05H Test values for distance and comparison measurements on rear axle
