FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2013
>>
S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
Test Values For Distance and Comparison Measurement on Front Axle
Test Values For Distance and Comparison Measurement on Front Axle

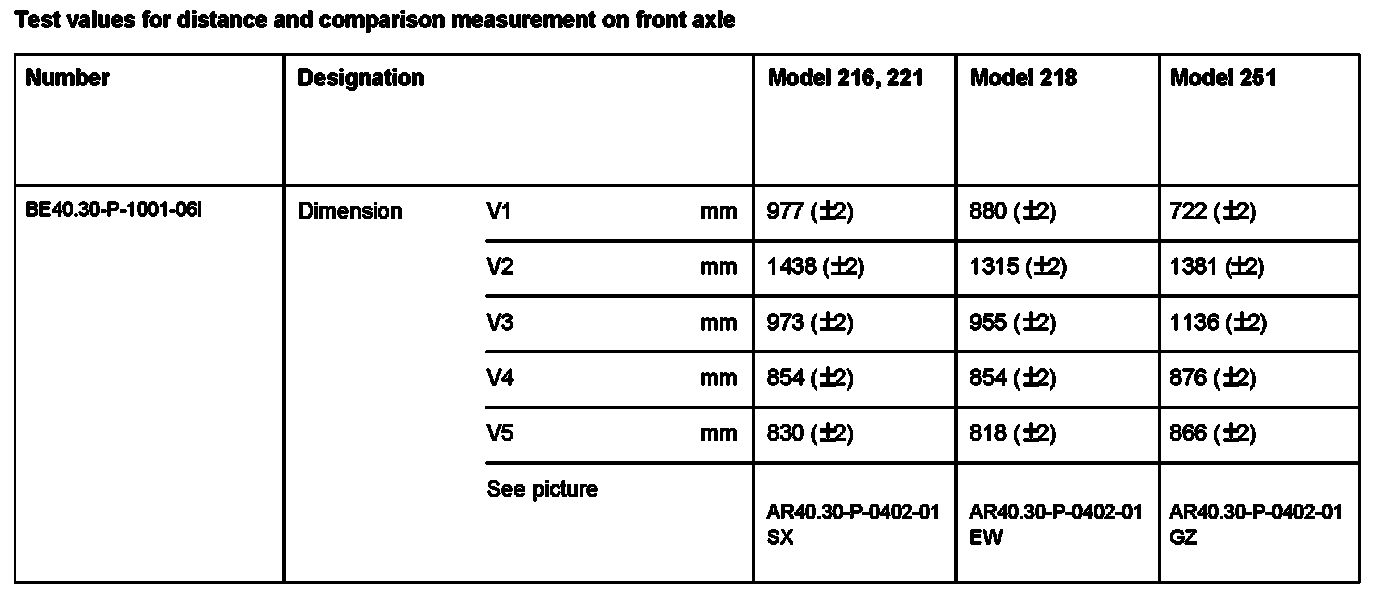

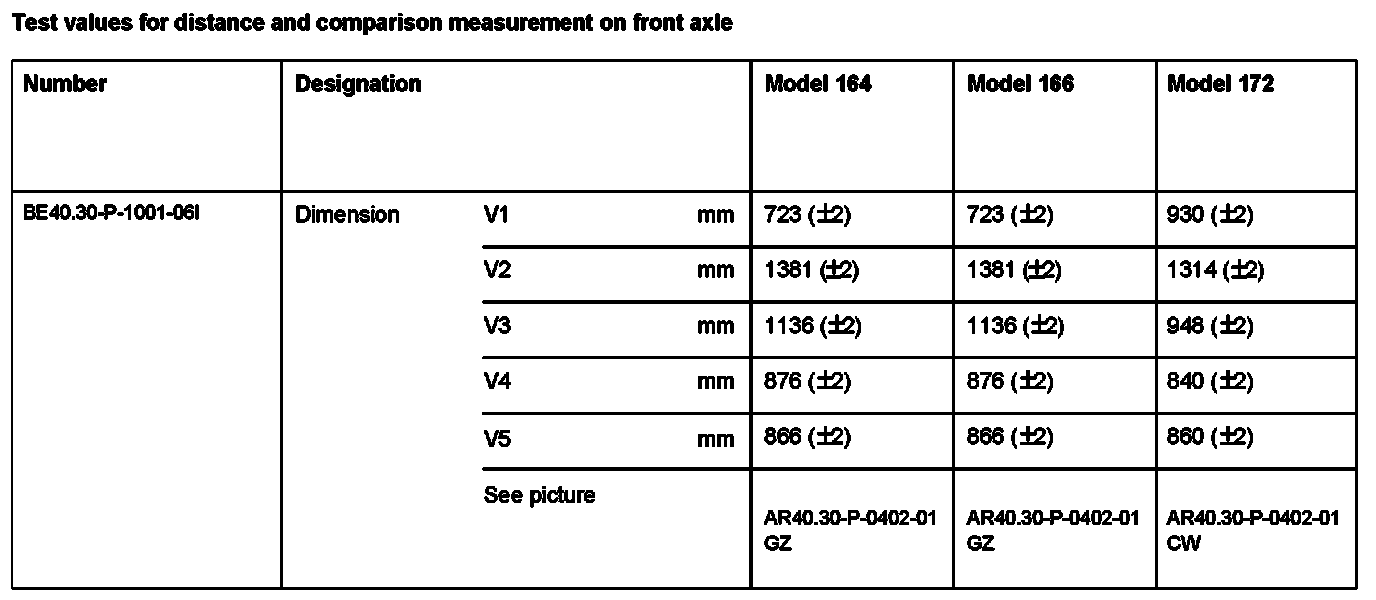

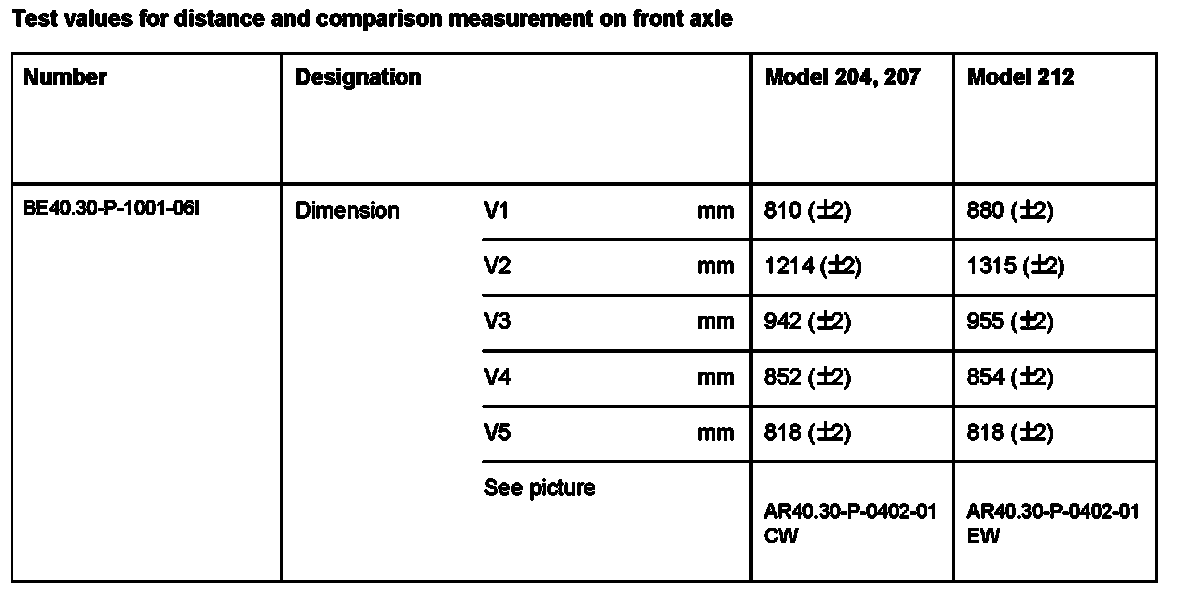

BE40.30-P-1000-06I Test values for distance and comparison measurement on front axle
