With Mixed Tires

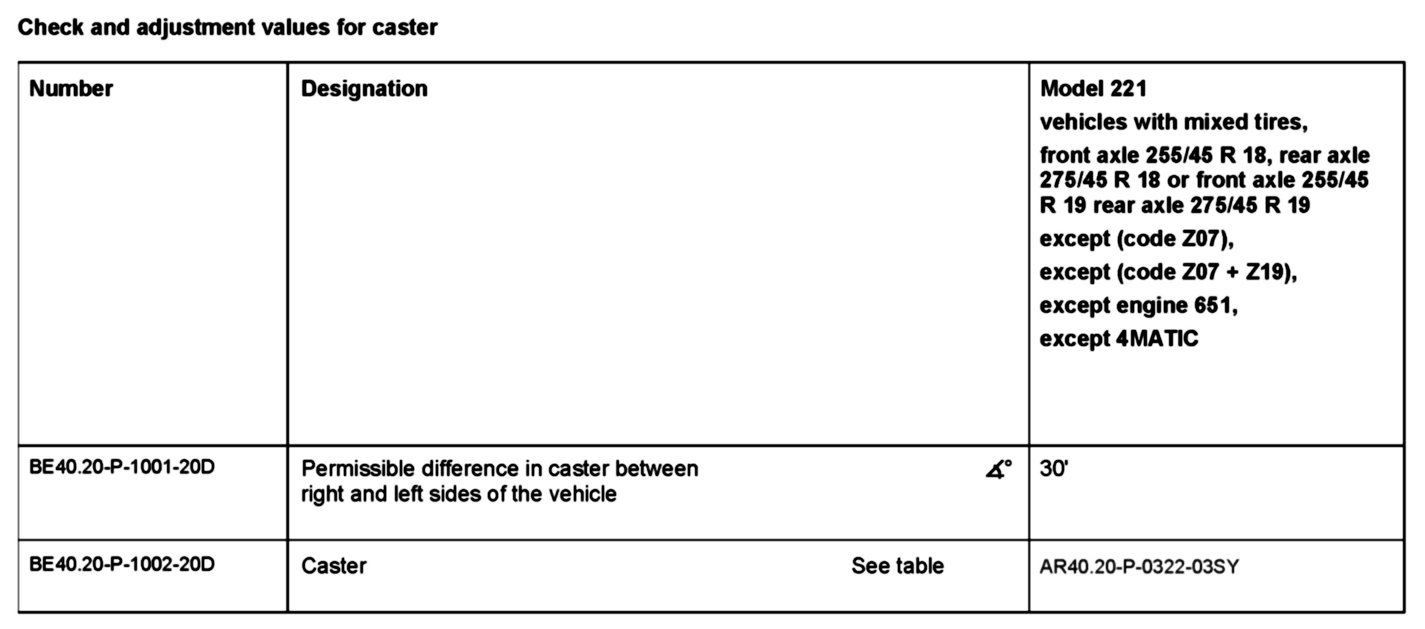

AR40.20-P-0322-03SY Check caster and assign to tabular value





Tolerance for caster ± 30'





The level values are displayed by the electronic inclinometer in decimal degrees [°].

Rear axle Rear axle level value
VA Front axle level value

1 Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

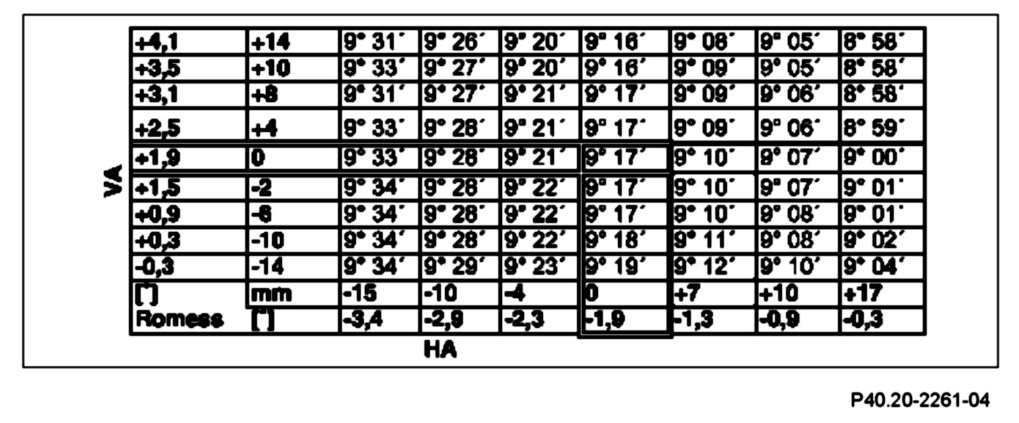

Example, see Table:
Front axle level value (FA): +1.9 degrees
Rear axle level value (RA): - 1,9 degrees
= Caster value 9 degrees 17' (± 30')
