Mercedes Benz
>>
2013
>>
S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868)
>>
Repair and Diagnosis
>>
Maintenance
>>
Towing Information
>>
Service and Repair
Towing Information: Service and Repair

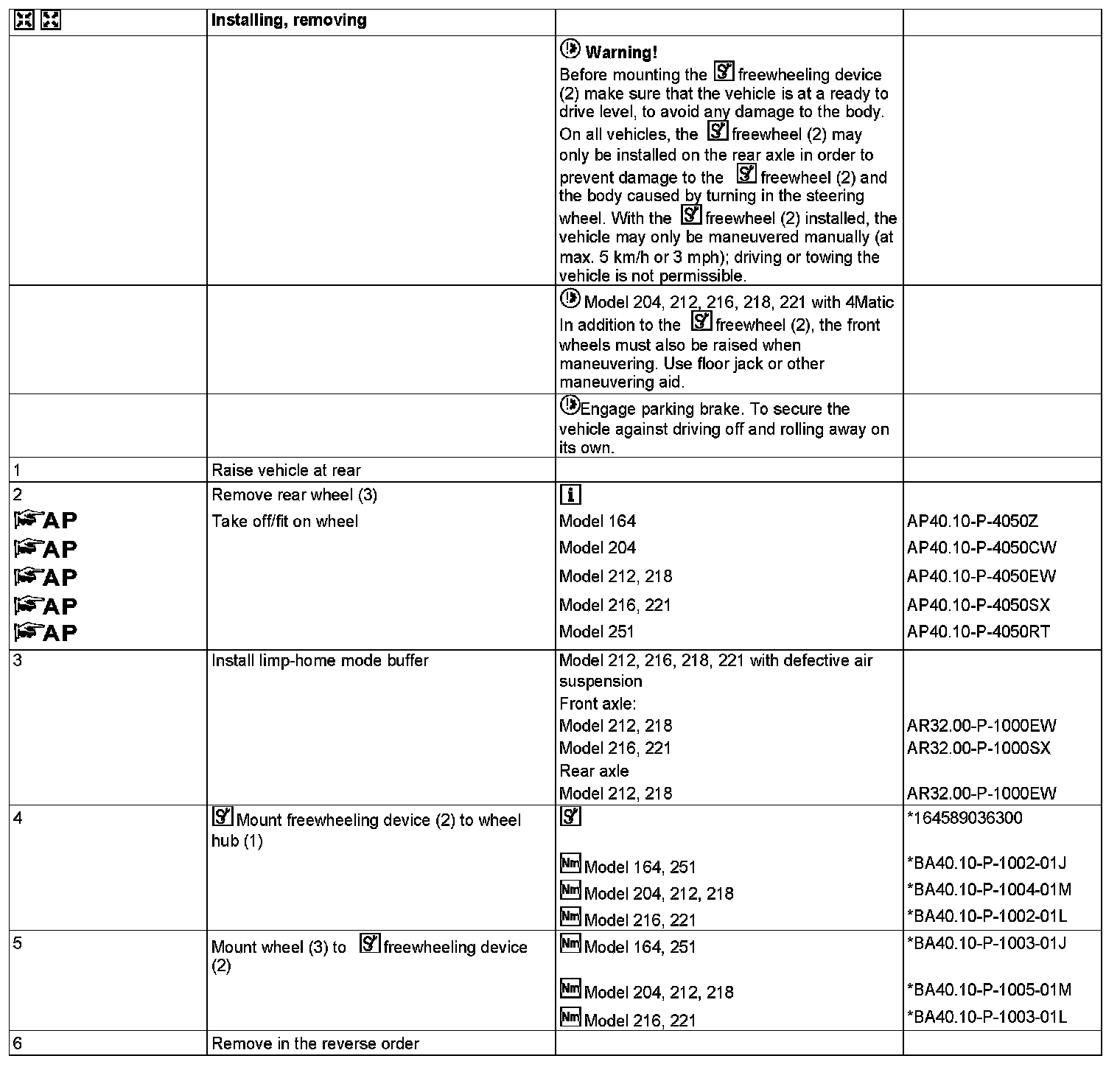

AR00.60-P-1500A Remove/install Freewheeling Device
-
MODEL 164, 204, 212, 216, 218, 221, 251

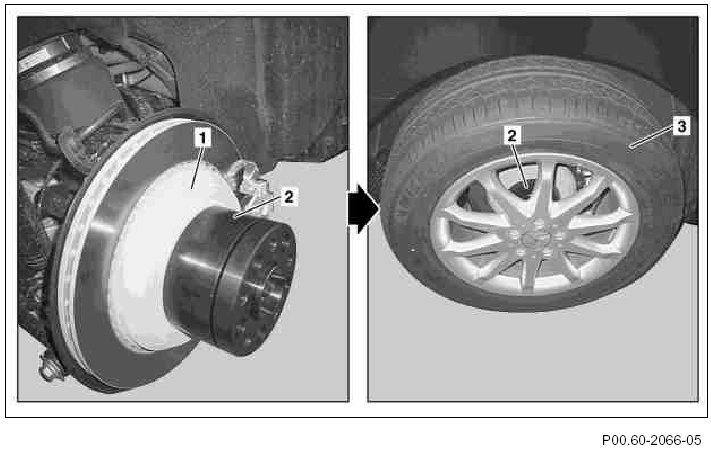

1
Wheel hub
2
Freewheeling device
3
Wheel
164 589 03 63 00, Freewheel
