Home >> Mercedes Benz >> 2013 >> S 350 BLUETEC (221.183) V6-3.0L DSL Turbo (642.868) >> Repair and Diagnosis >> Maintenance >> Alignment >> Specifications >> Vehicle Level - Rear Axle

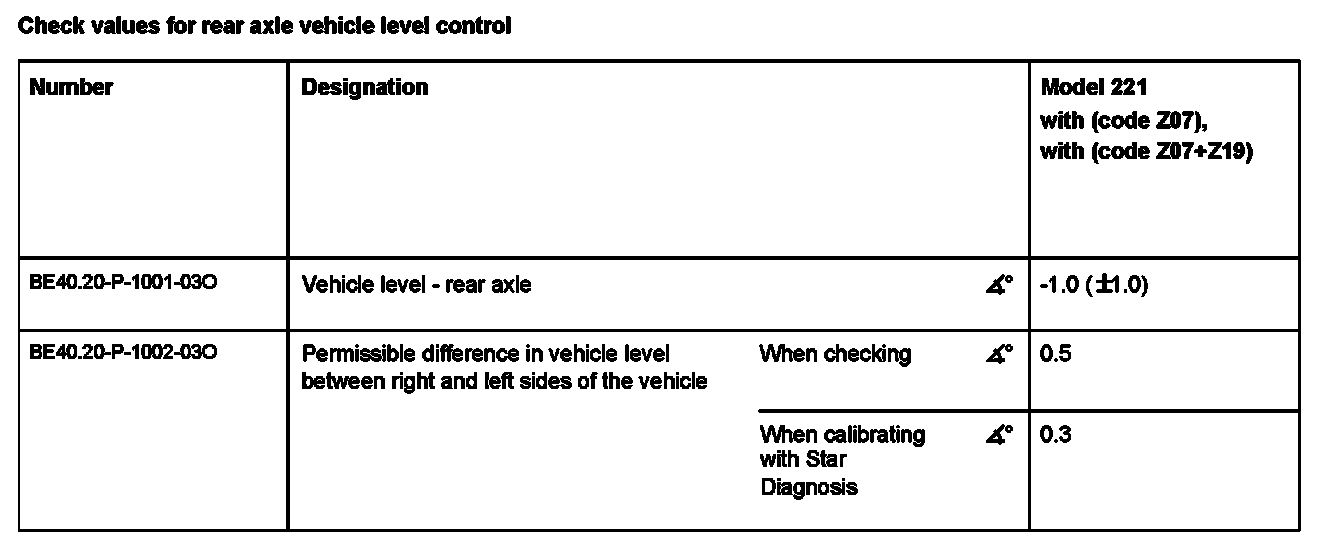

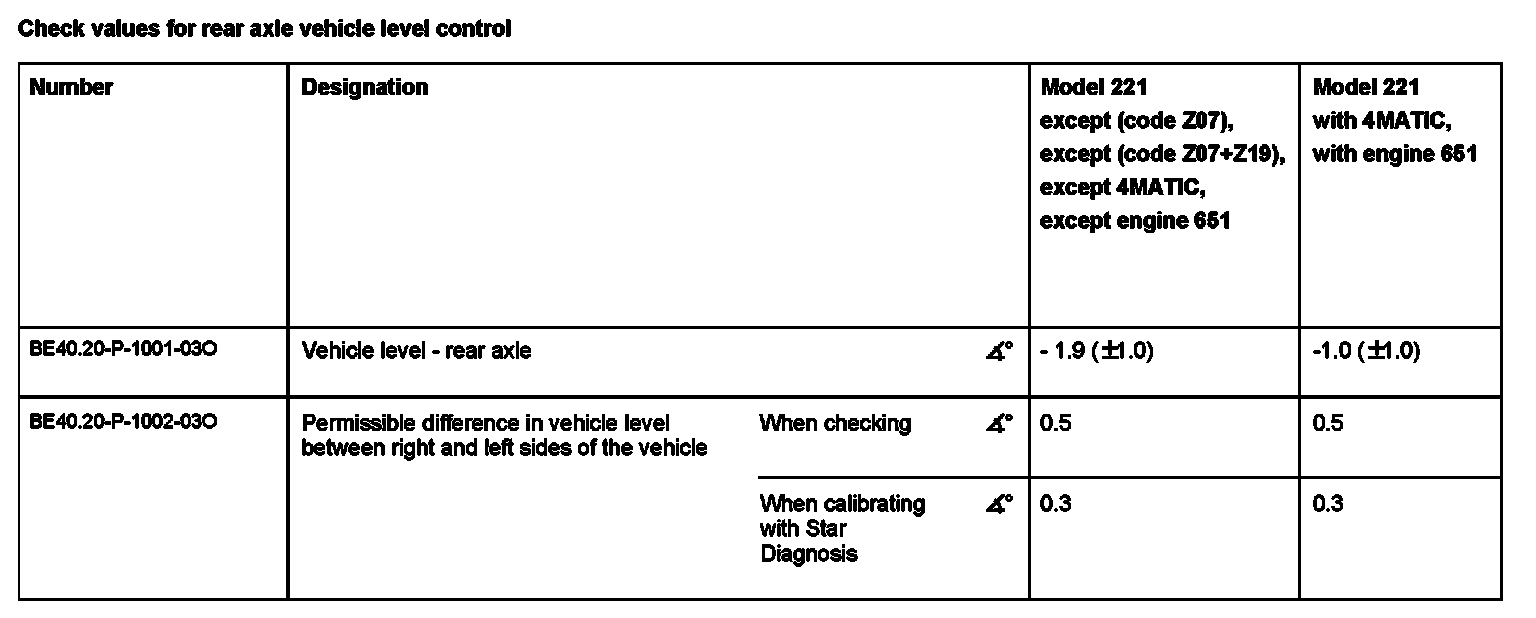

Vehicle Level - Rear Axle




BE40.20-P-1000-03O Vehicle Level - Rear Axle
