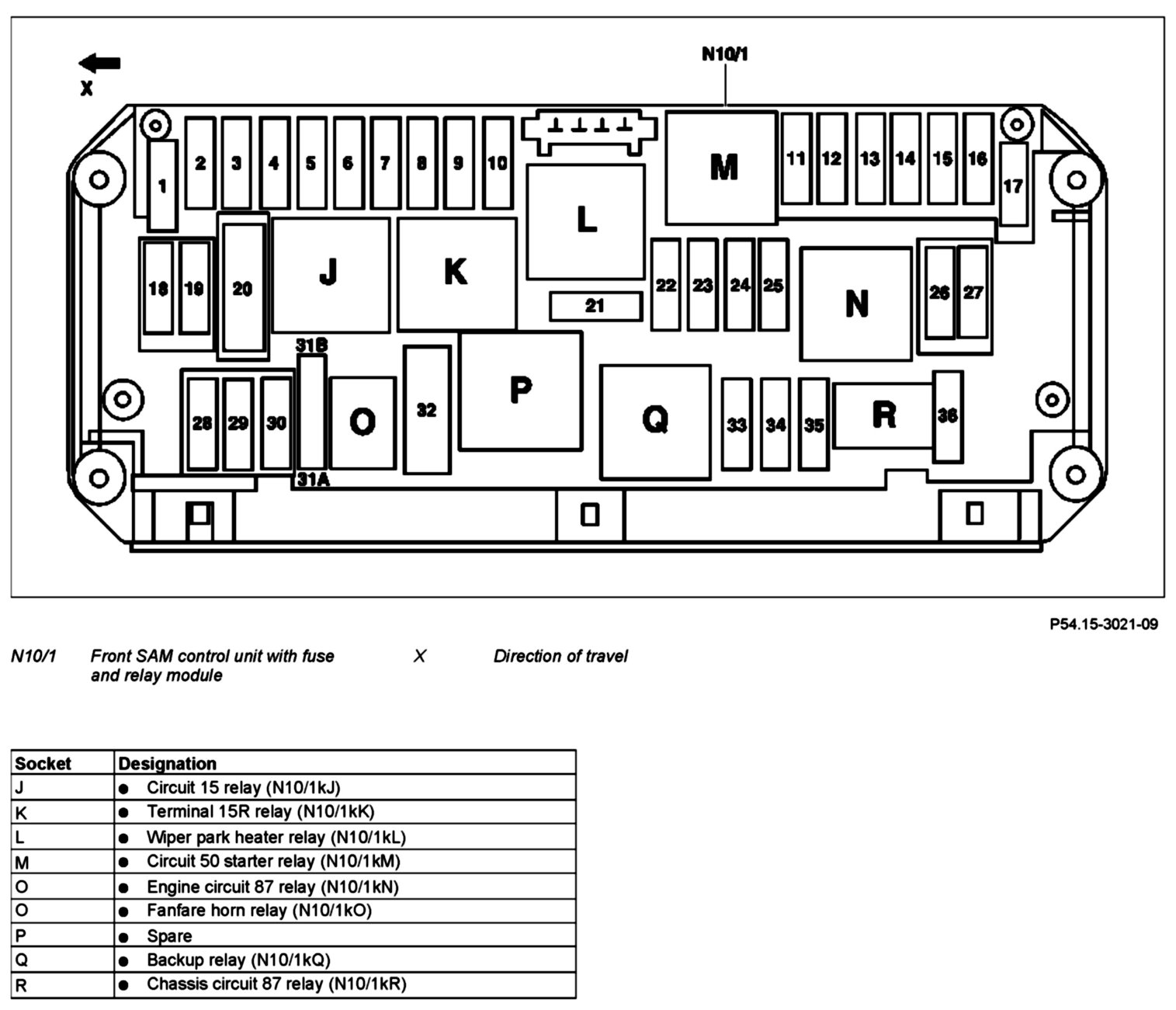

GF54.15-P-1257-03FQ Relay Assignment of Fuse and Relay Box In Left Side of Engine Compartment



GF54.15-P-1257-03FQ Realy Assignment of Fuse and Relay Box In Left Side Engine Compartment
