CLS 550 4MATIC (218.391) V8-4.6L Turbo (278.922)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

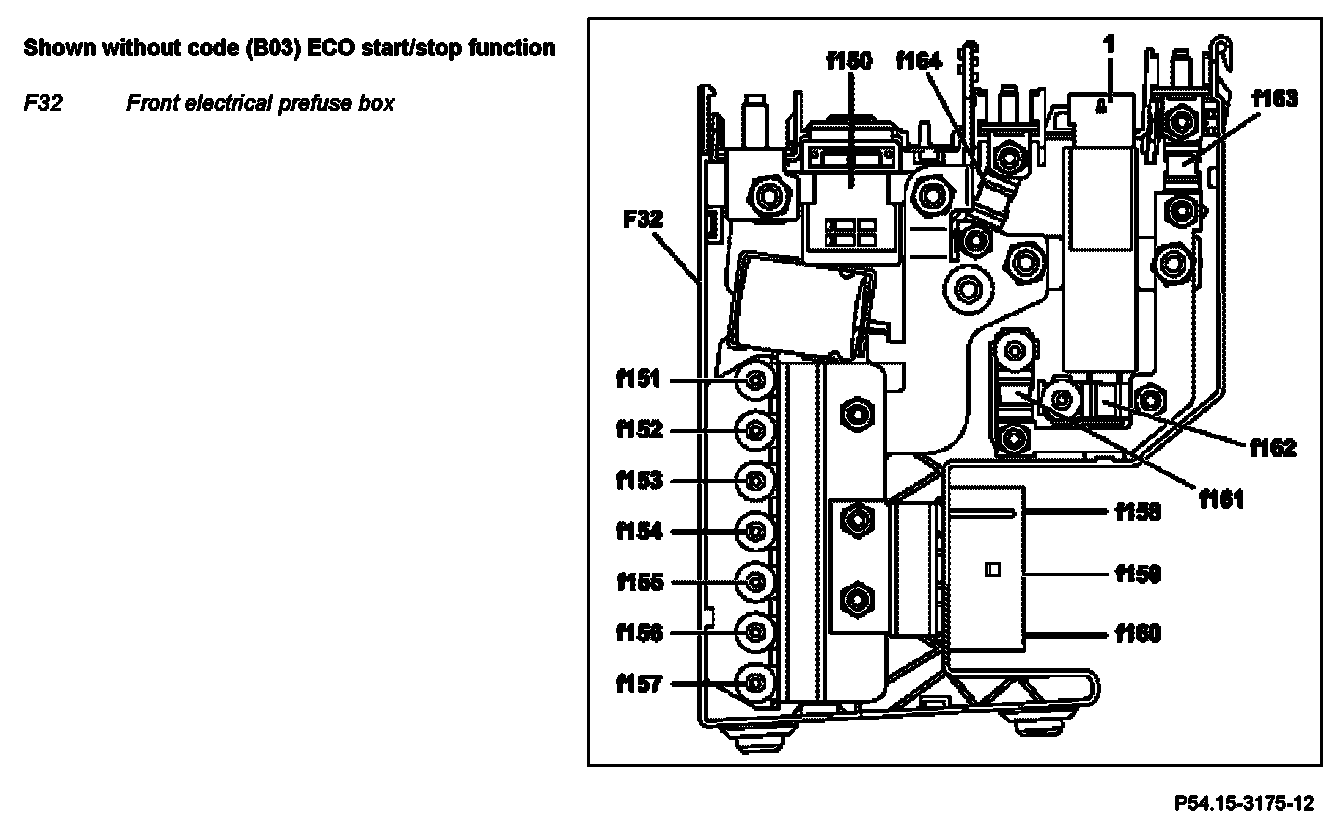

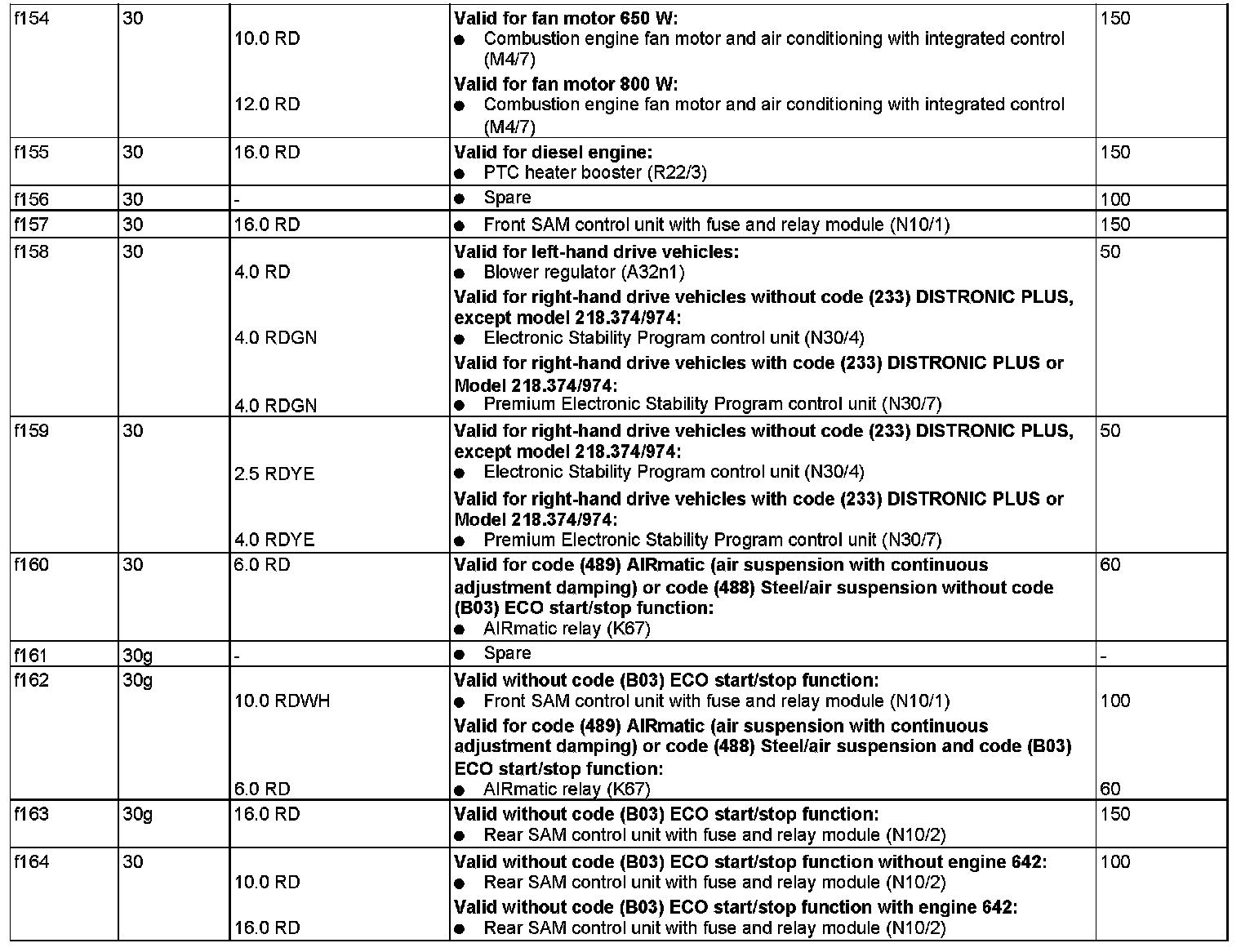

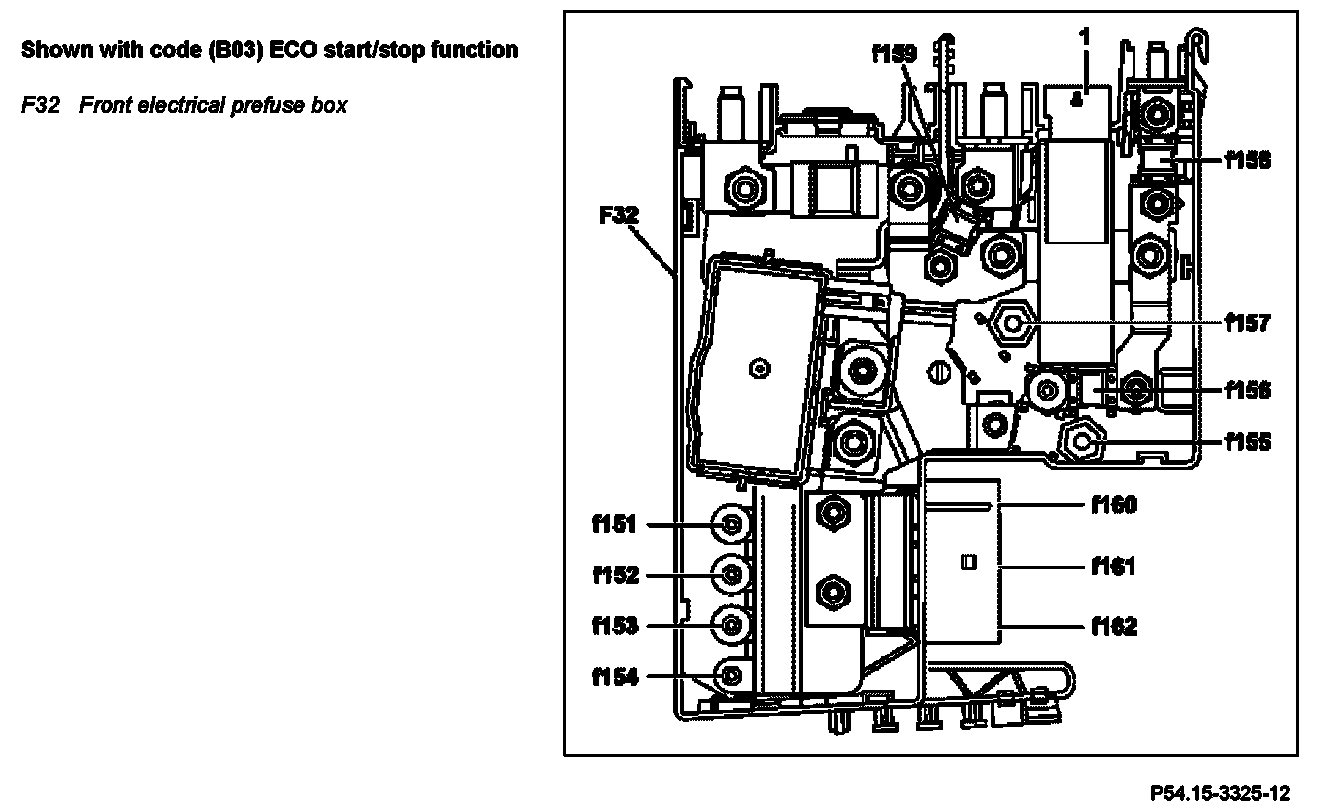

GF54.15-P-1256-07FQ Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07FQ Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07FQ Fuse Assignment of Front Prefuse Box
