Campaign - Software Calibration Number Code Rear SAM

Campaign No.2013010010, March 2013

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:

Model 204 Model Year 2013
Software Calibration Number (SCN) Code Rear SAM

This Service Campaign has been initiated because Daimler AG (DAG), the manufacturer of Mercedes- Benz vehicles, has determined that the Software Calibration Number (SCN) of the rear SAM does not correspond to current production configuration. An authorized Mercedes-Benz dealer will update the SCN of the rear SAM at the next workshop visit.

Prior to performing this Service Campaign:

^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.

^ Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.

Approximately 71 vehicles are affected.

Procedure

Note:

^ Use DAS/Xentry 01/13 with all associated patches or higher.

^ Follow the steps exactly as described in DAS/Xentry.

^ Connect battery charger (battery voltage>12.5V).

^ Ensure all electrical consumers are switched-off.

^ In the event of software/SCN update issues, contact Star Diagnosis User Help Desk.

^ Refer to Star Diagnosis System (SDS) Best Practices Guide

1. Connect Xentry/DAS.

2. Perform SCN coding in rear SAM control unit:

Control units view / Rear SAM - Rear signal acquisition and actuation module (N10/2)/Adaptations / Configuration / SCN / SCN coding.

3. Follow on-screen instructions.

Note:

The allowable labor operation should be used when submitting a warranty claim for this repair.

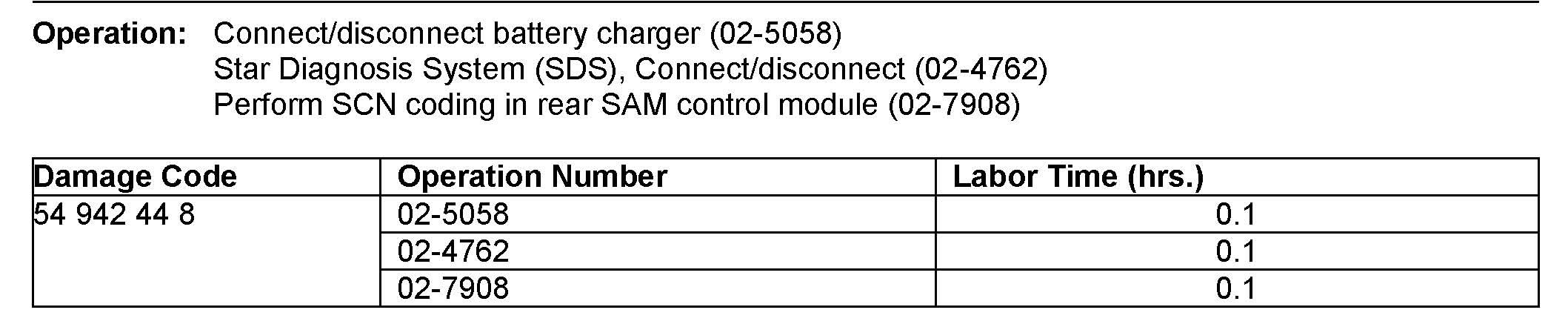

Warranty Information
