C 300 4MATIC (204.080) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

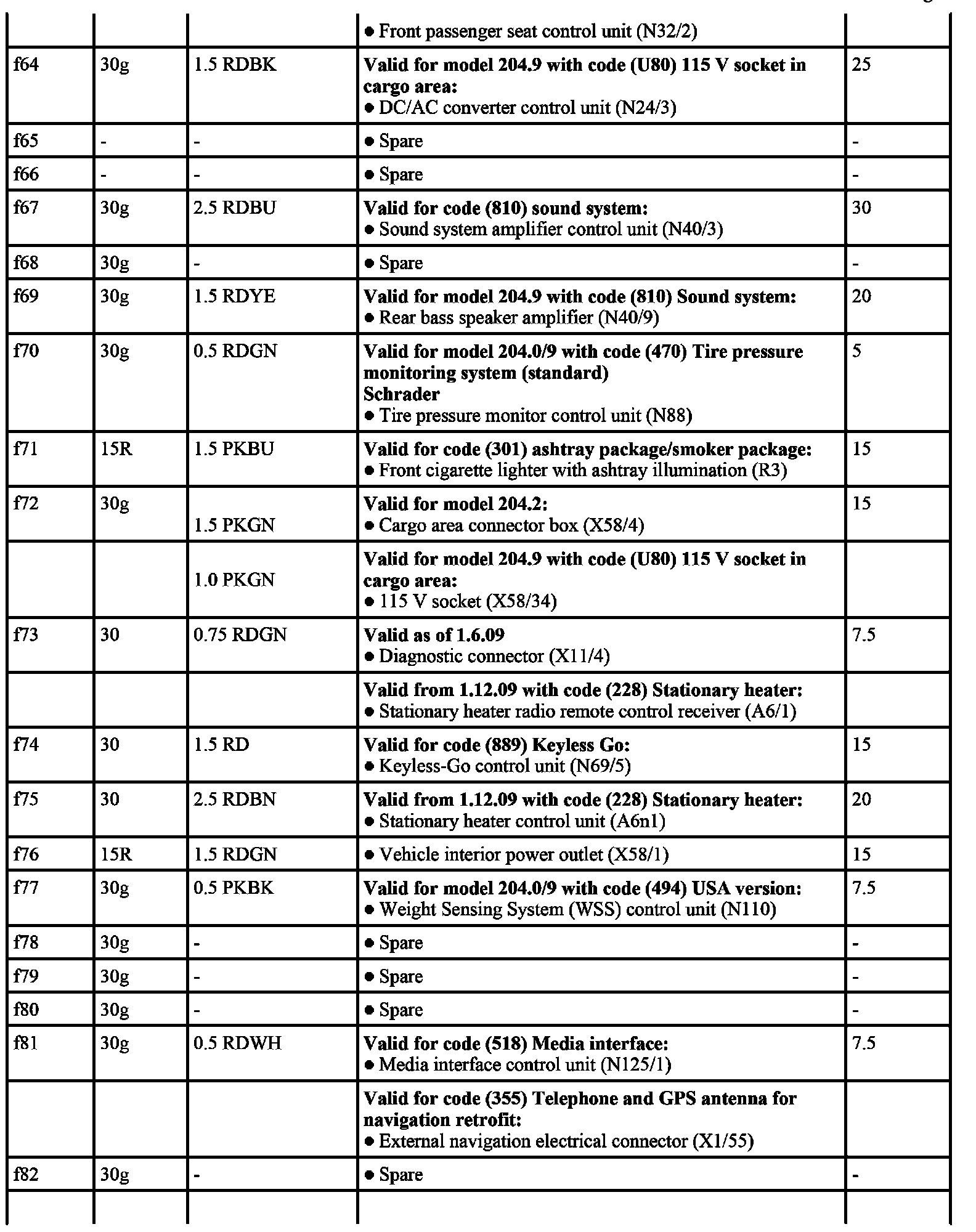

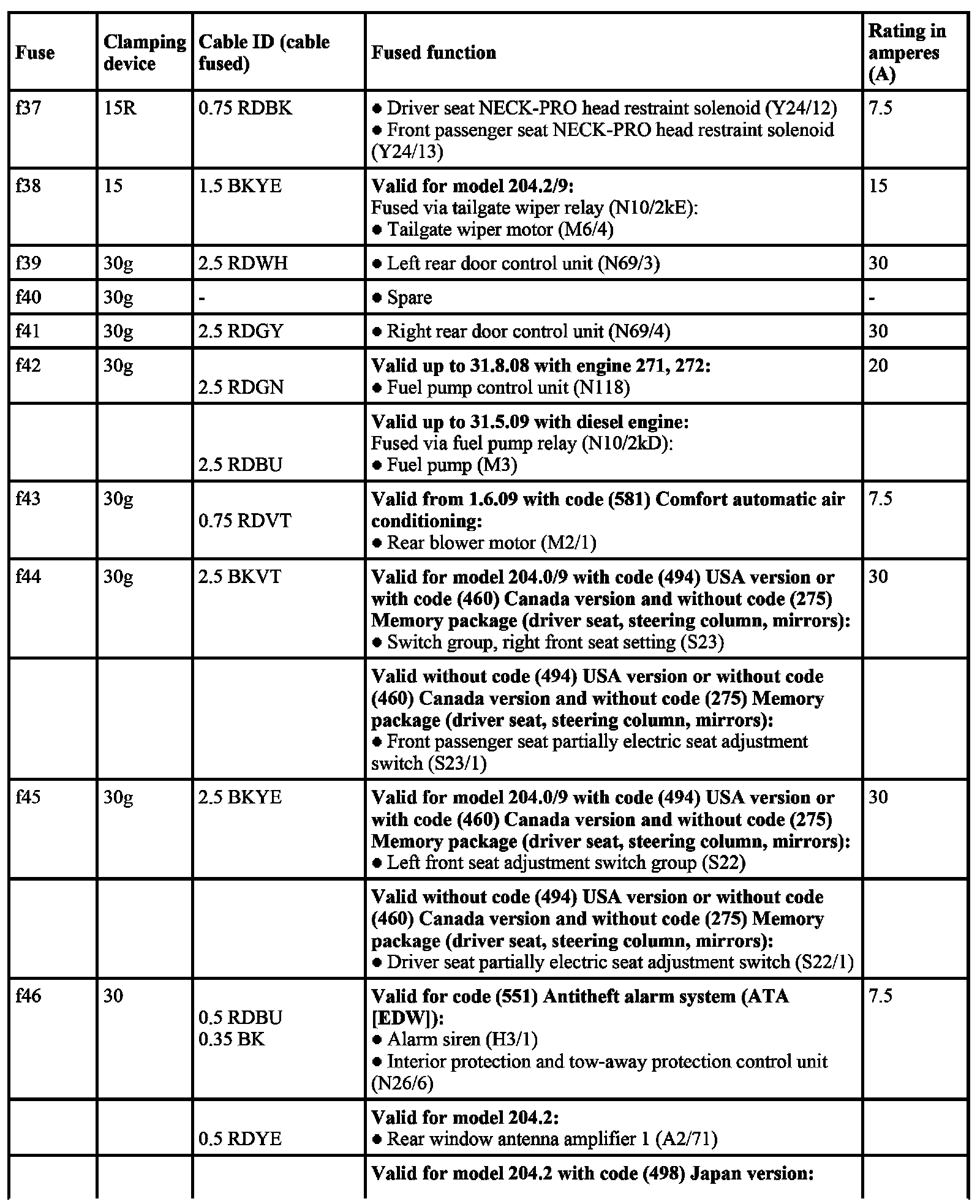

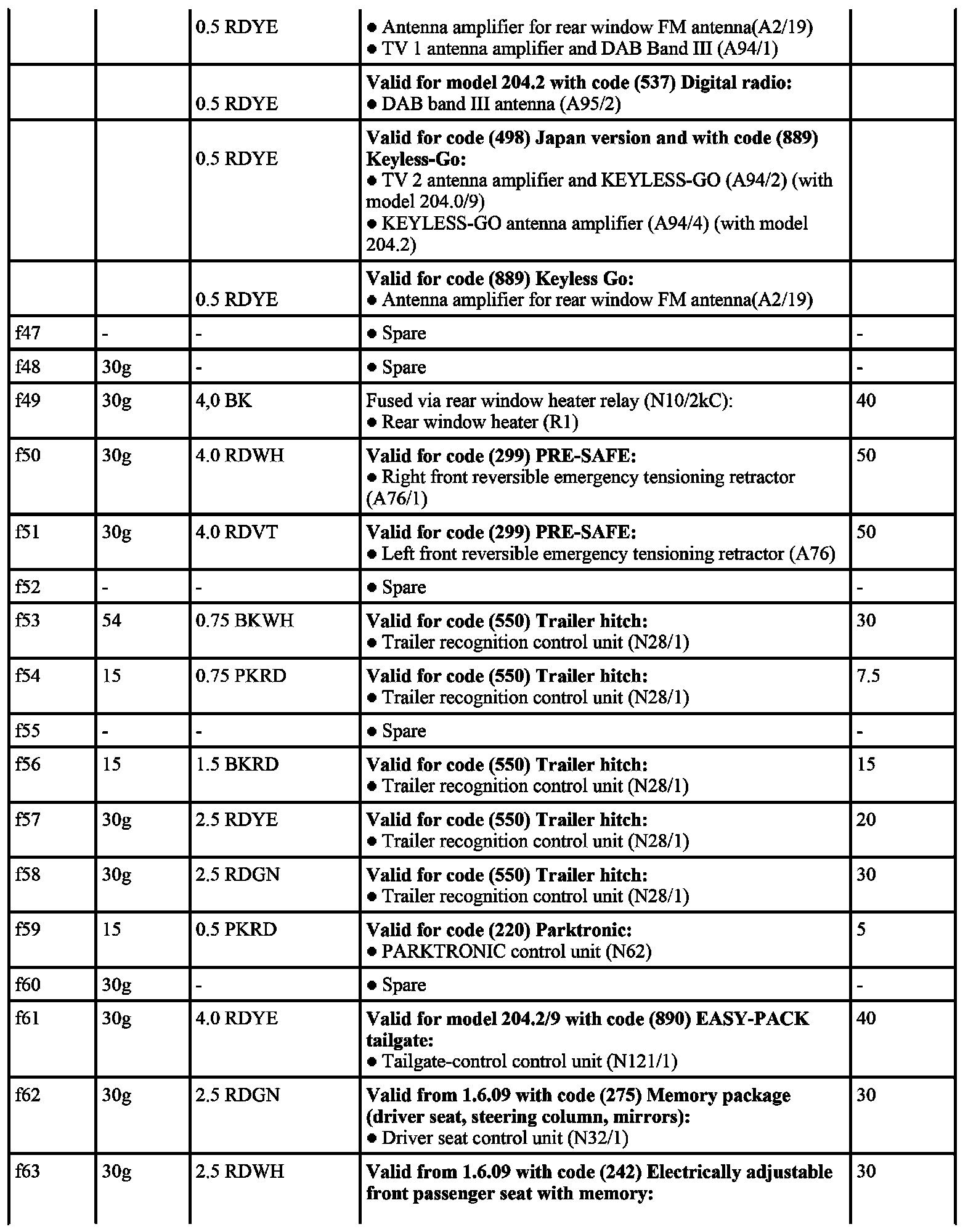

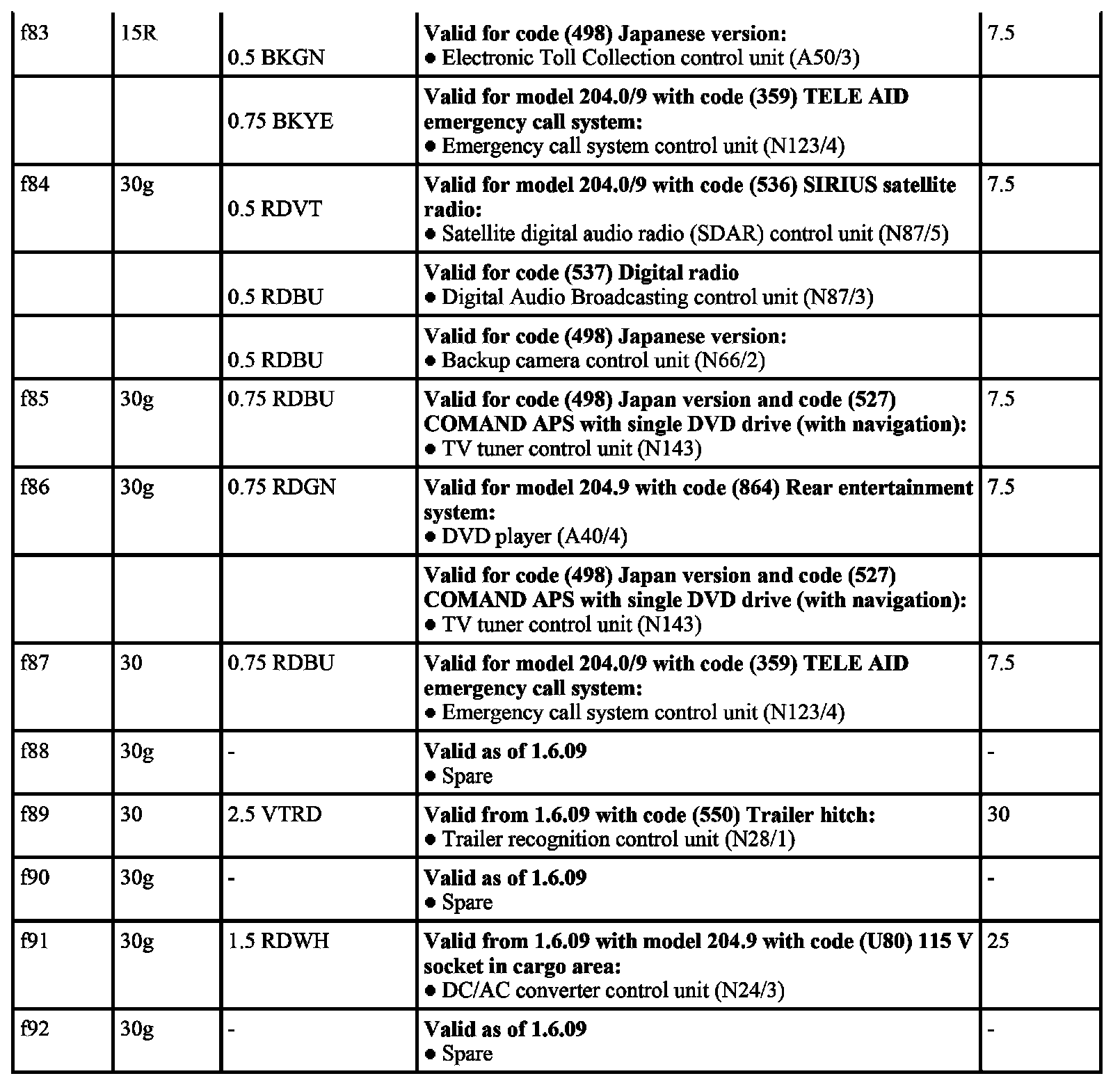

GF54.15-P-1256-06CE Fuse Assignment of Fuse and Relay Box In Trunk
GF54.15-P-1256-06CE Fuse Assignment of Fuse and Relay Box In Trunk
GF54.15-P-1256-06CE Fuse Assignment of Fuse and Relay Box In Trunk

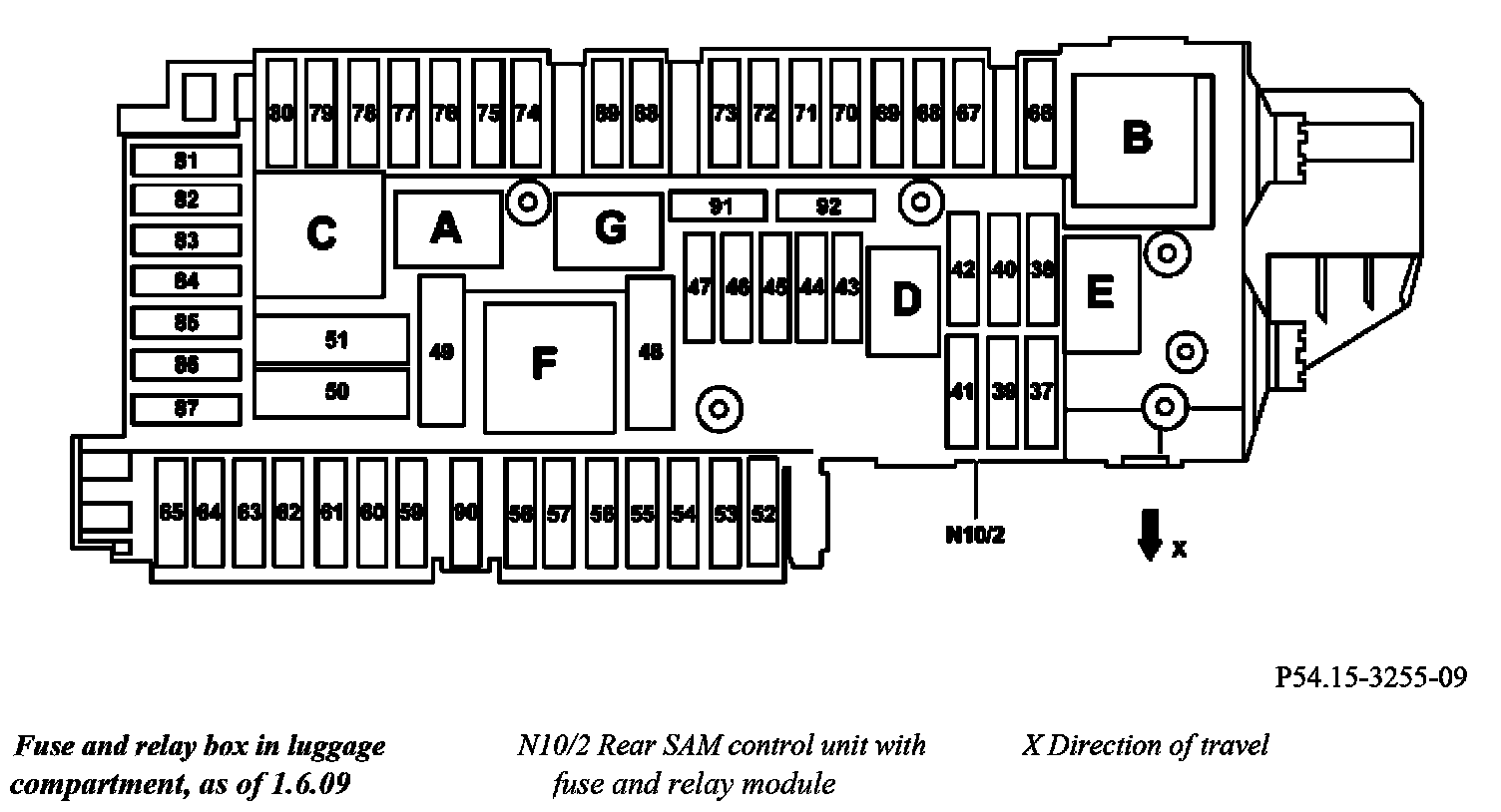

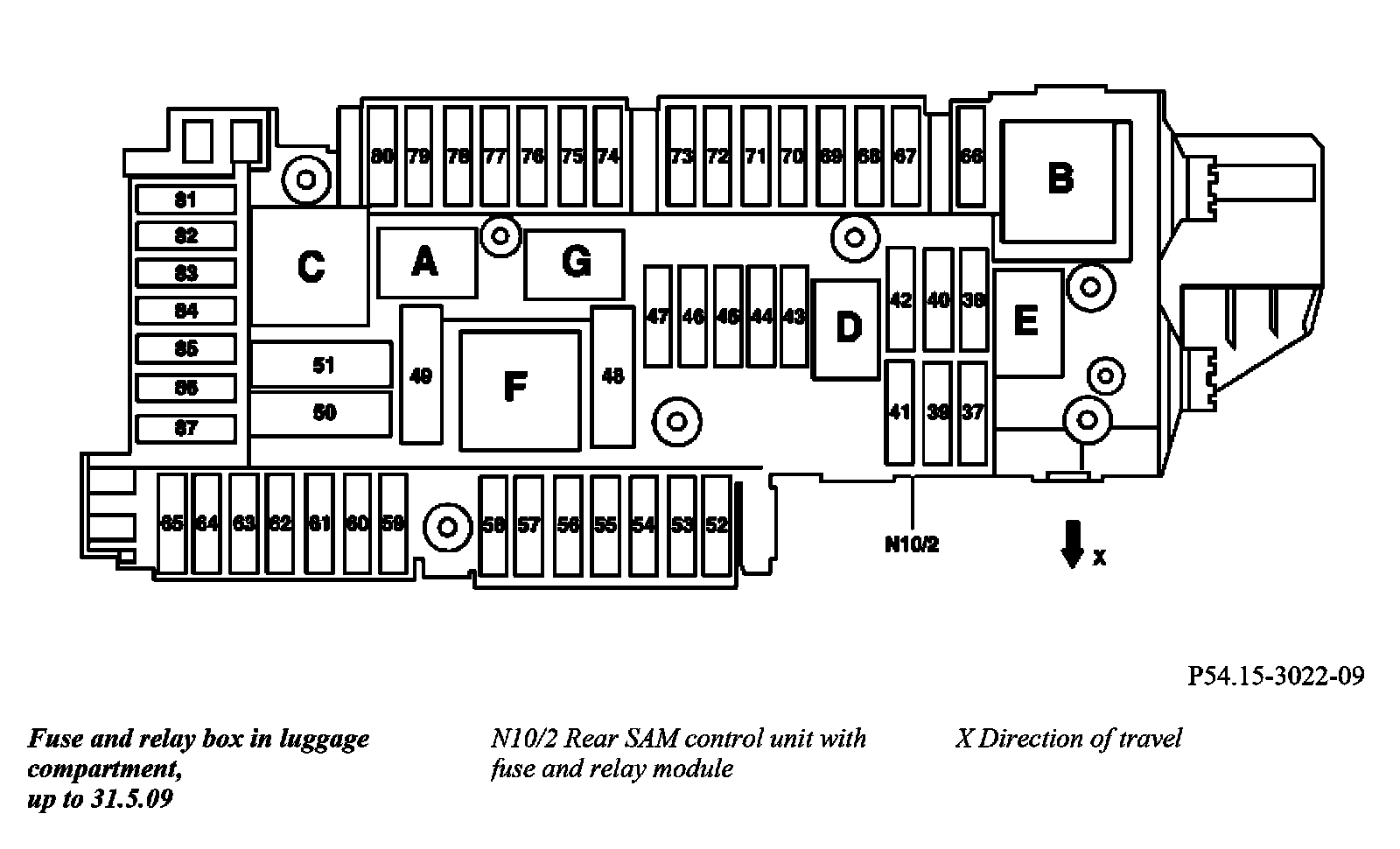

Component Location:
