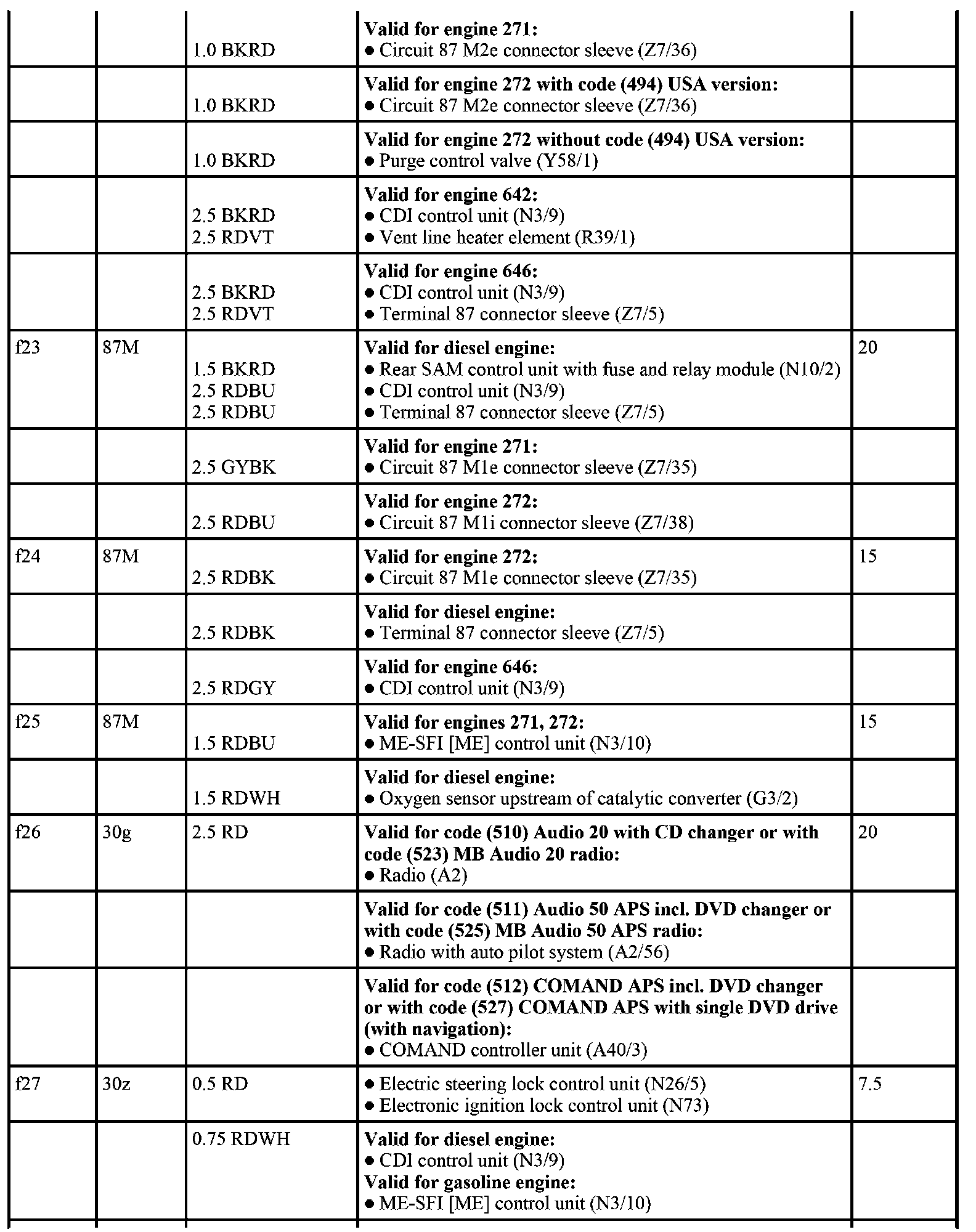

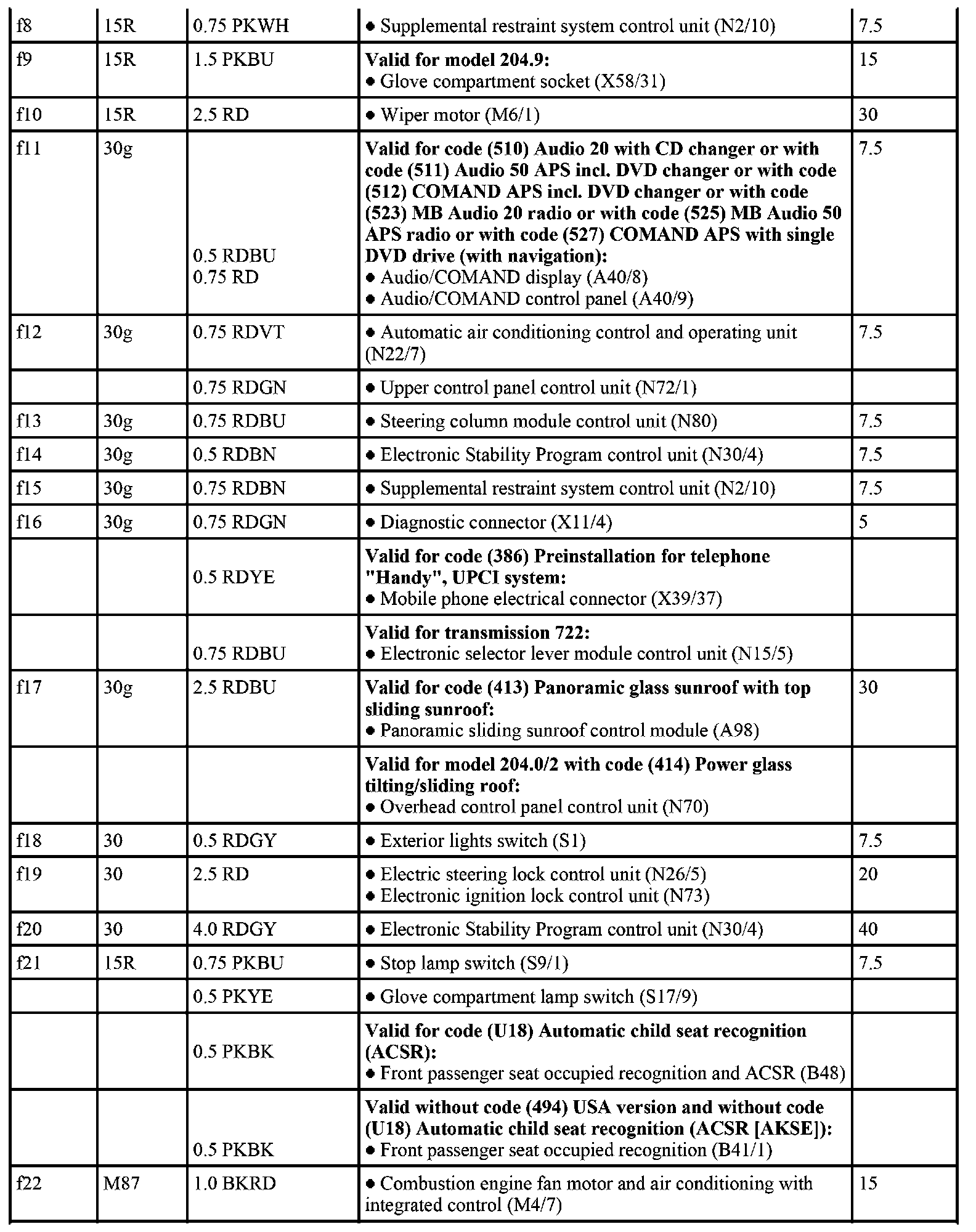

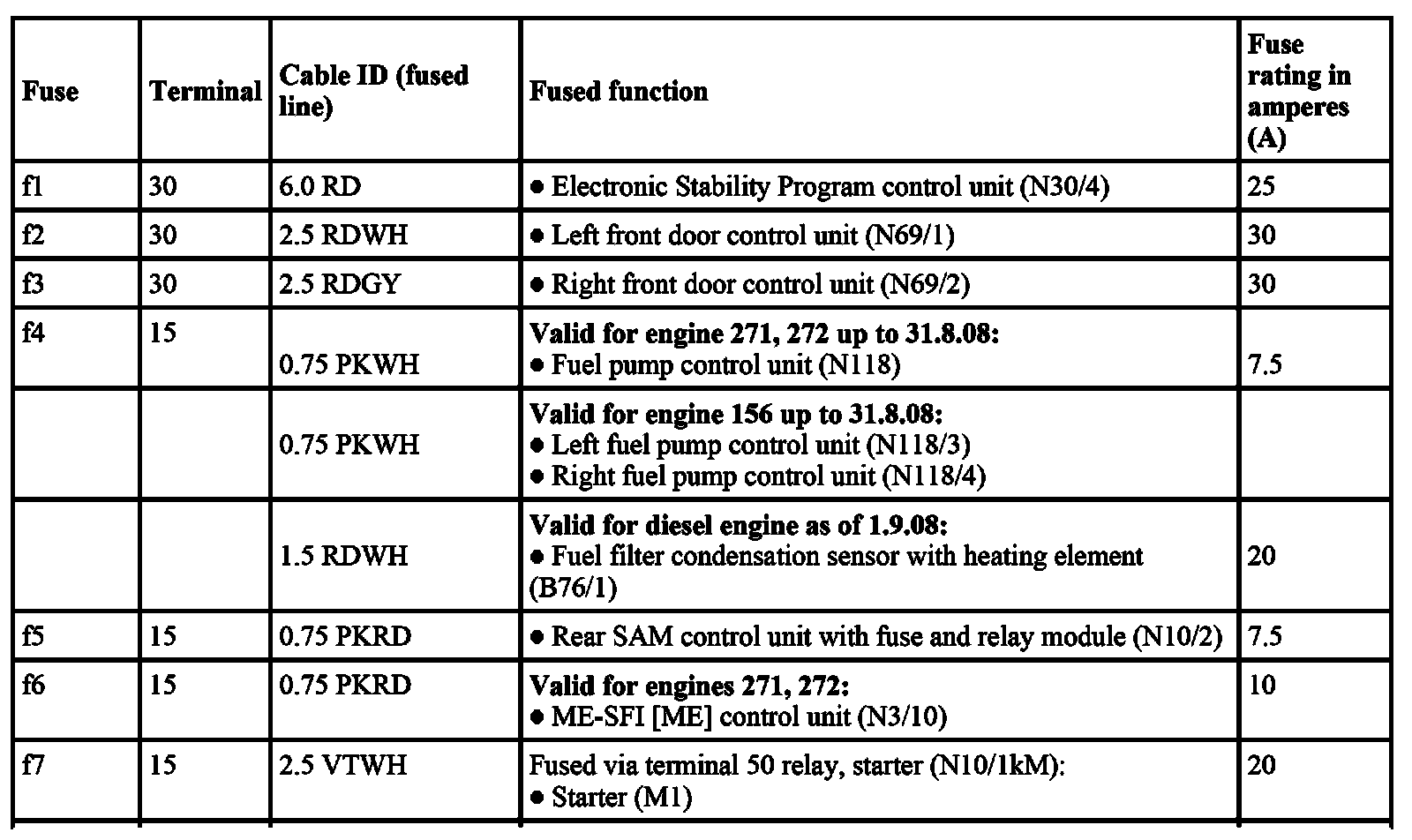

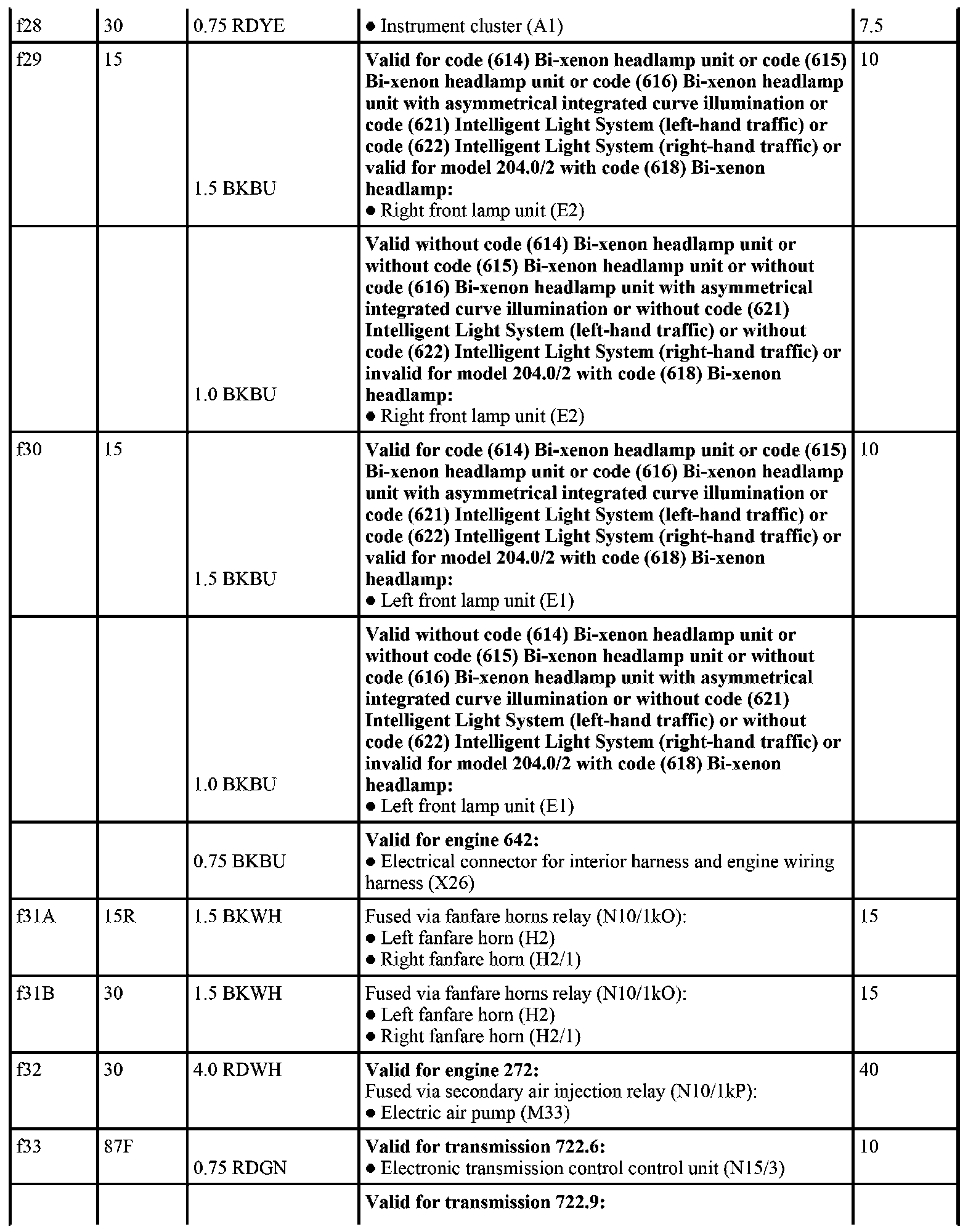

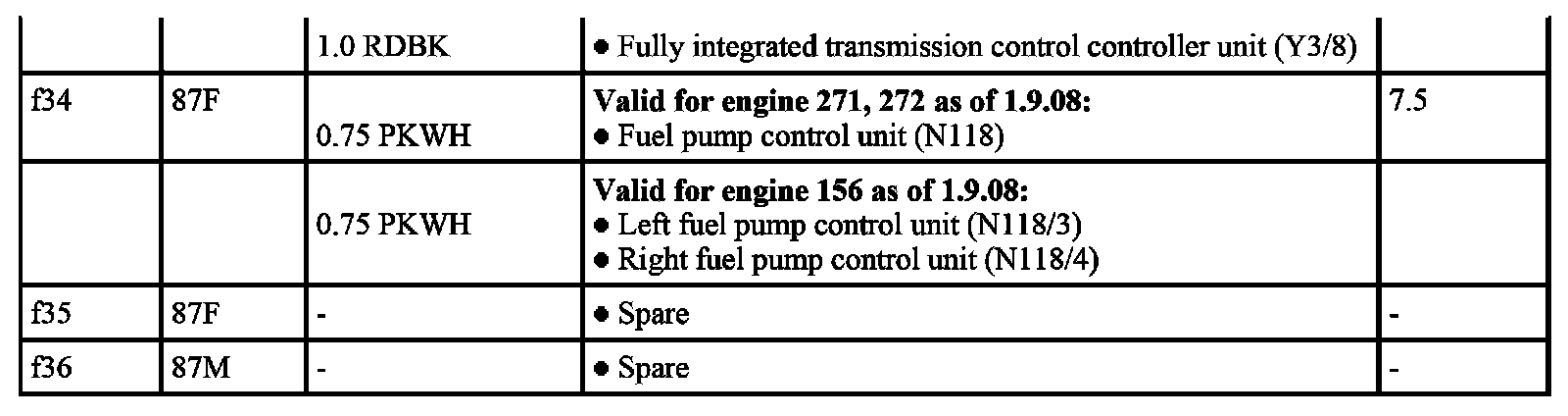

GF54.15-P-1256-03CE Fuse Assignment of Fuse and Relay Box In Left Engine Compartment



GF54.15-P-1256-03CE Fuse Assignment of Fuse and Relay Box In Left Engine Compartment

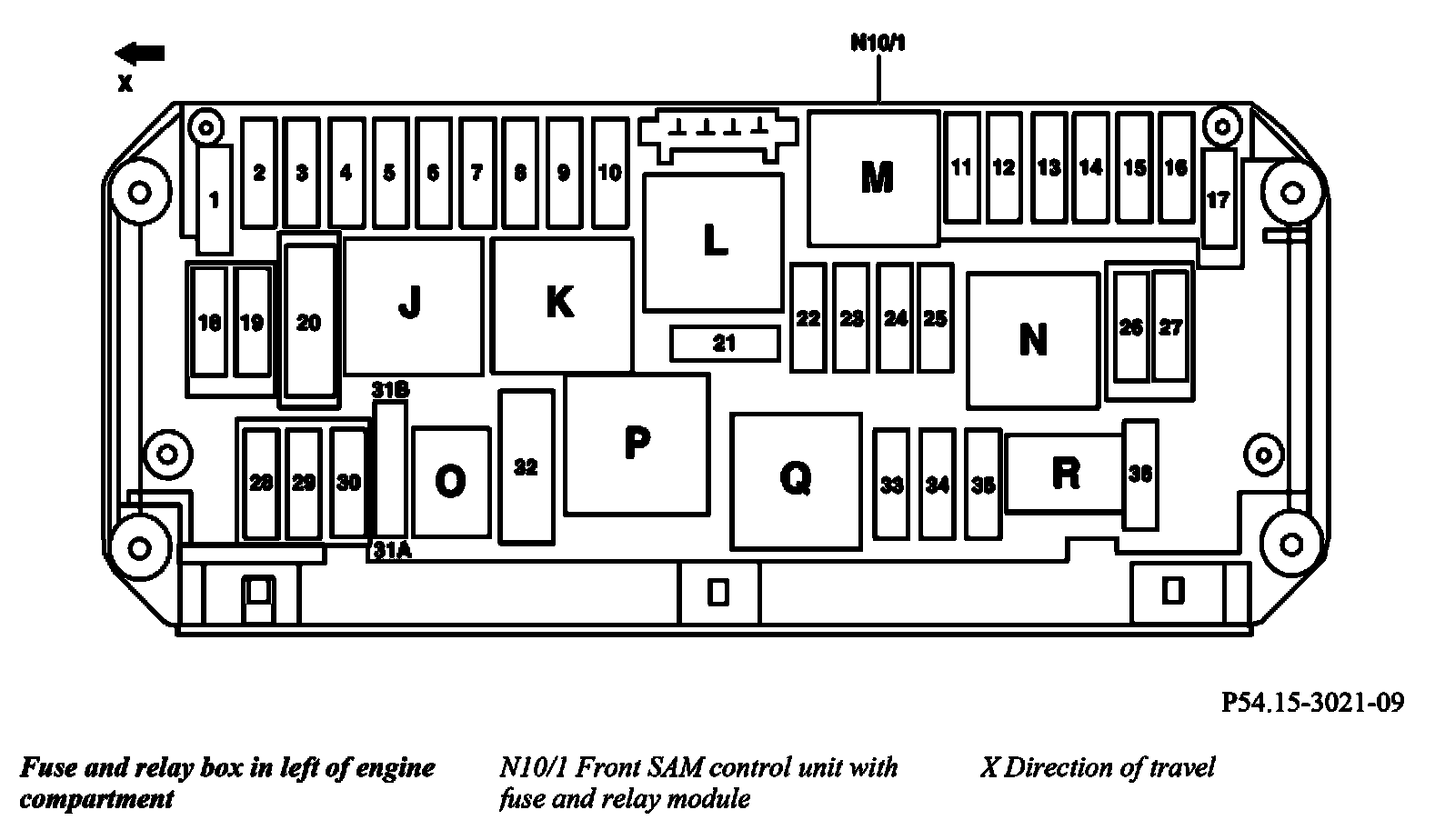

Component Location:
