Vehicle Level - Rear Axle

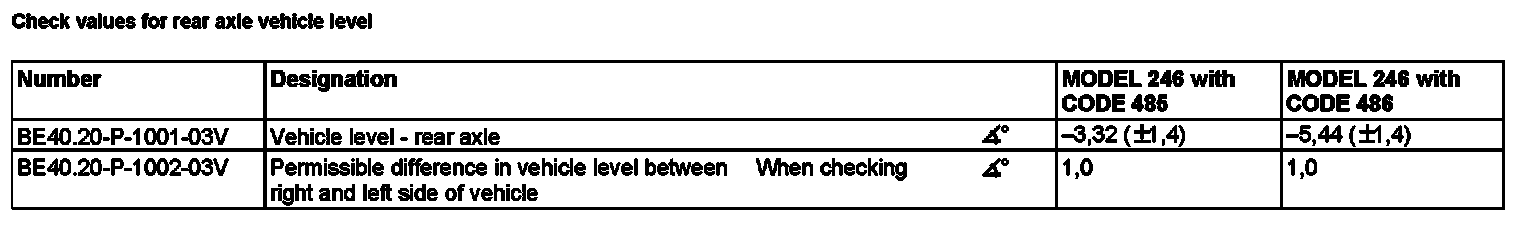

Vehicle Level - Rear Axle

Model 246 with CODE 485 (Comfort suspension)
Model 246 with CODE 486 (MB Sports suspension)
