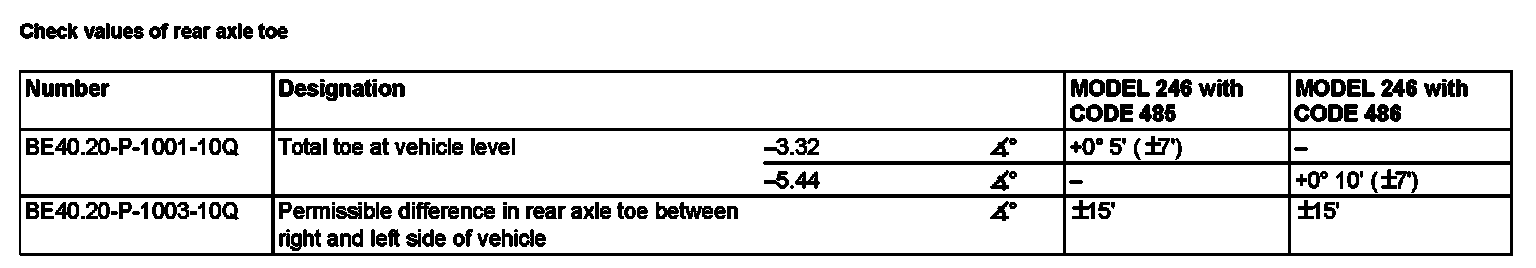

Rear Axle Toe



Rear axle toe

Model 246 with CODE 485 (Comfort suspension)
Model 246 with CODE 486 (MB sports suspension)
