Windshield Washer Reservoir: Service and Repair

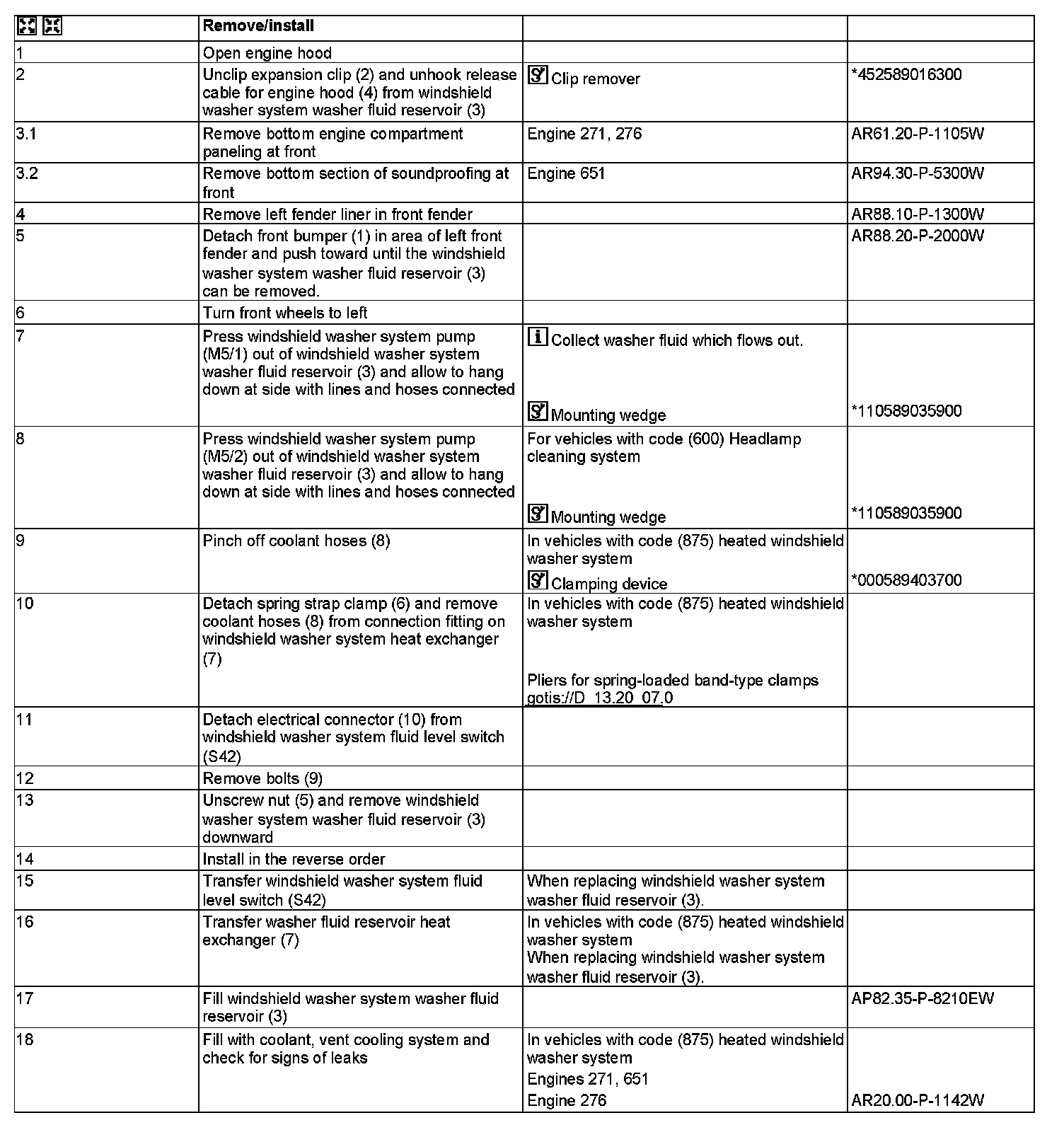

AR82.35-P-6000W Remove/Install Washer Fluid Reservoir of Windshield Washer System
MODEL 172.4





On vehicles with code (600) Headlamp cleaning system and code (875) Heated windshield washer system

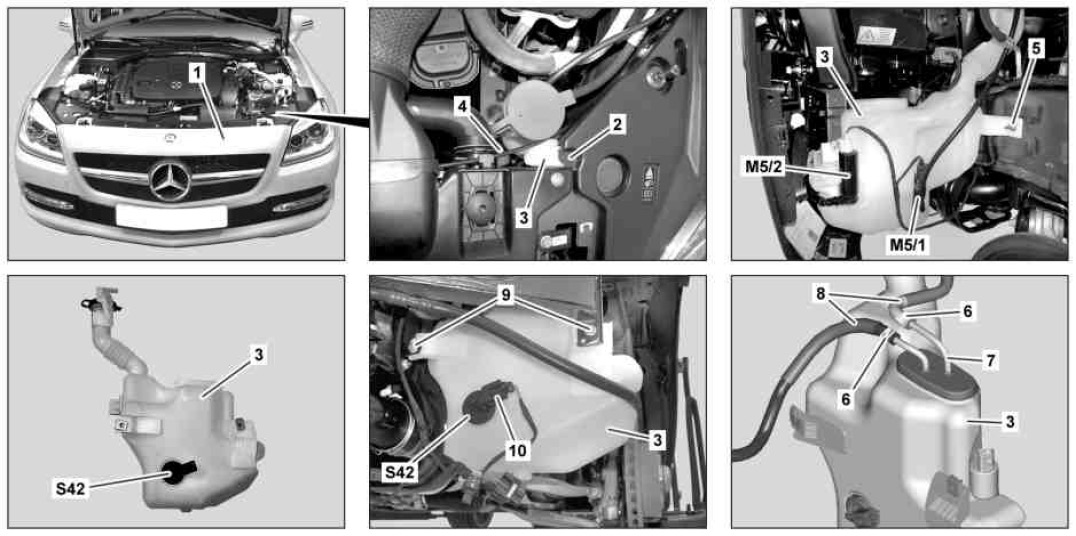

1 Front bumper
2 Expansion clip
3 Windshield washer system washer fluid reservoir
4 Release cable for engine hood
5 Nut
6 Spring strap clamp (with code (875) (Heated windshield washer system)
7 Washer fluid reservoir heat exchanger (with code (875) Heated windshield washer system)
8 Coolant hose (with code (875) Heated windshield washer system)
9 Bolts
10 Electrical connector
M5/1 Windshield washer system pump
M5/2 Headlamp cleaning system pump (with code (600) Headlamp cleaning system)
S42 Windshield washer system fluid level switch








000 589 40 37 00
Clamping device





110 589 03 59 00
Mounting wedge





452 589 01 63 00
Snap-release tool
