Headlamp Washer Spray Nozzle: Service and Repair

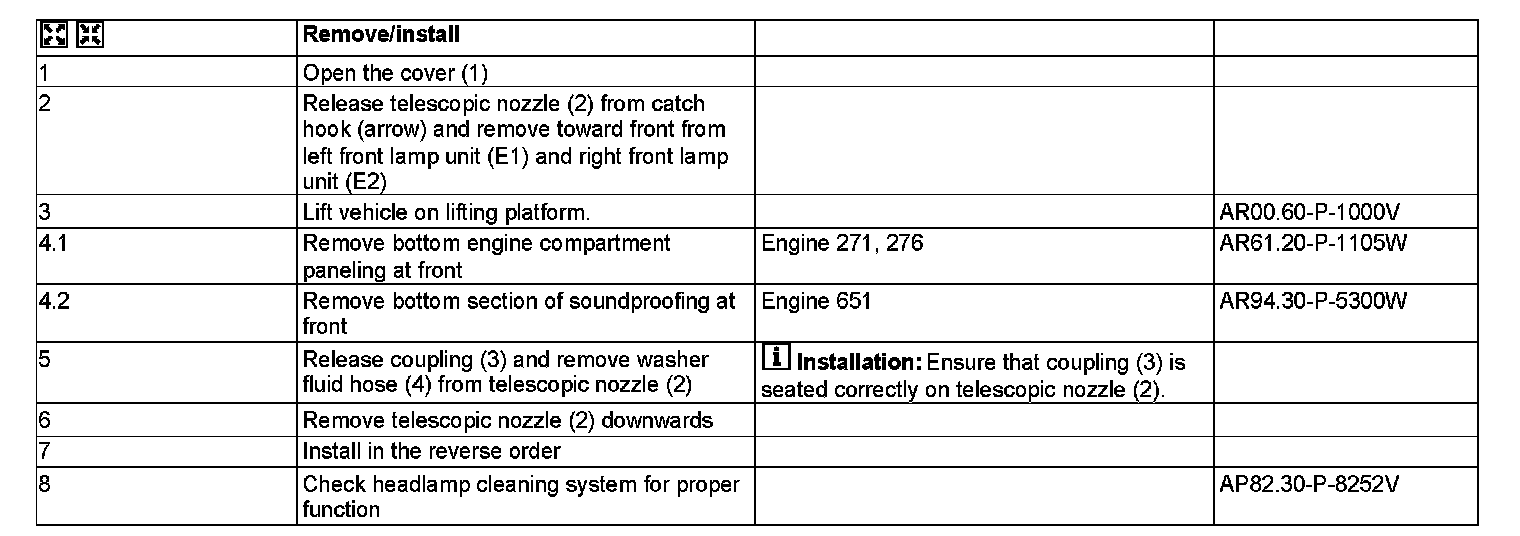

AR82.15-P-6100W Remove/Install Telescoping Nozzle For Headlamp Cleaning System
MODEL 172.4
- with CODE (600) Headlamp cleaning system
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)

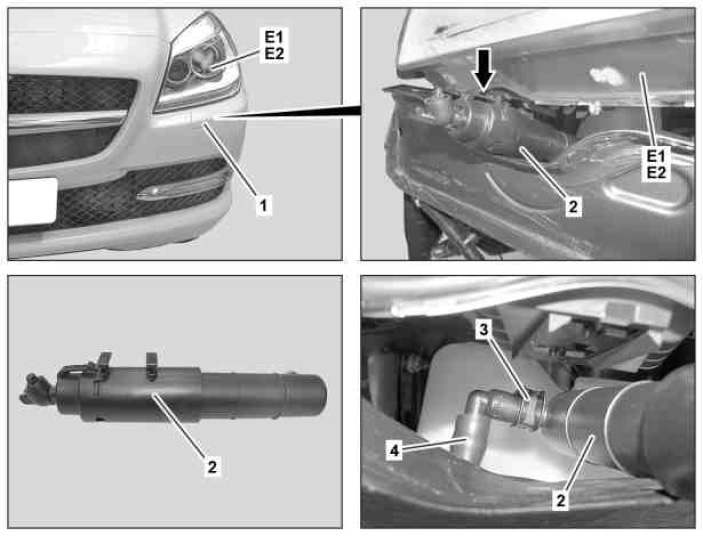

Shown on LH side
1 Cover
2 Telescopic nozzle
3 Clutch
4 Washer fluid hose
E1 Left front headlamp unit
E2 Right front headlamp unit
