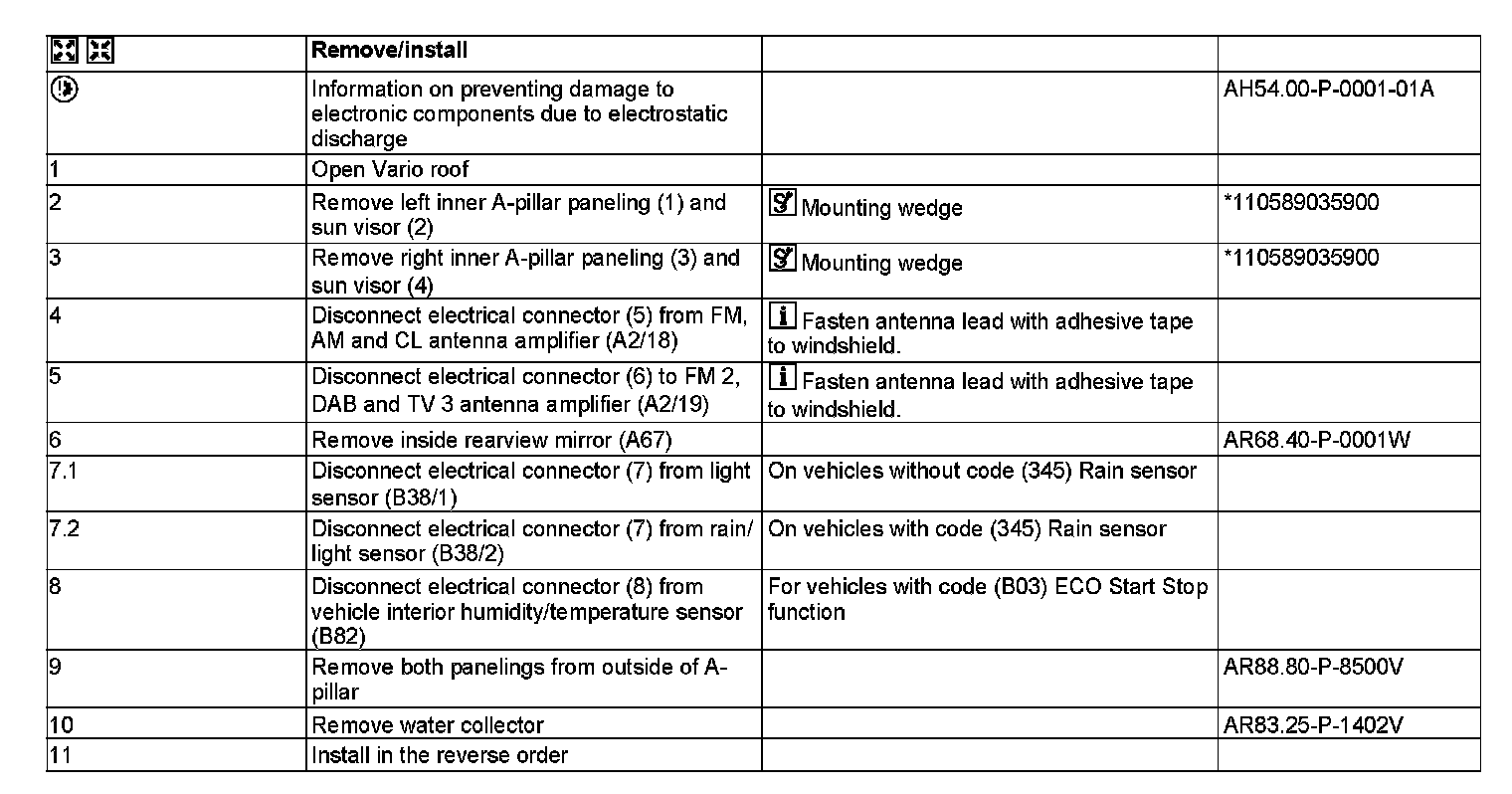

AR67.10-P-1050W Remove/Install Detachable Parts When Replacing Windshield

AR67.10-P-1050W Remove/Install Detachable Parts When Replacing Windshield

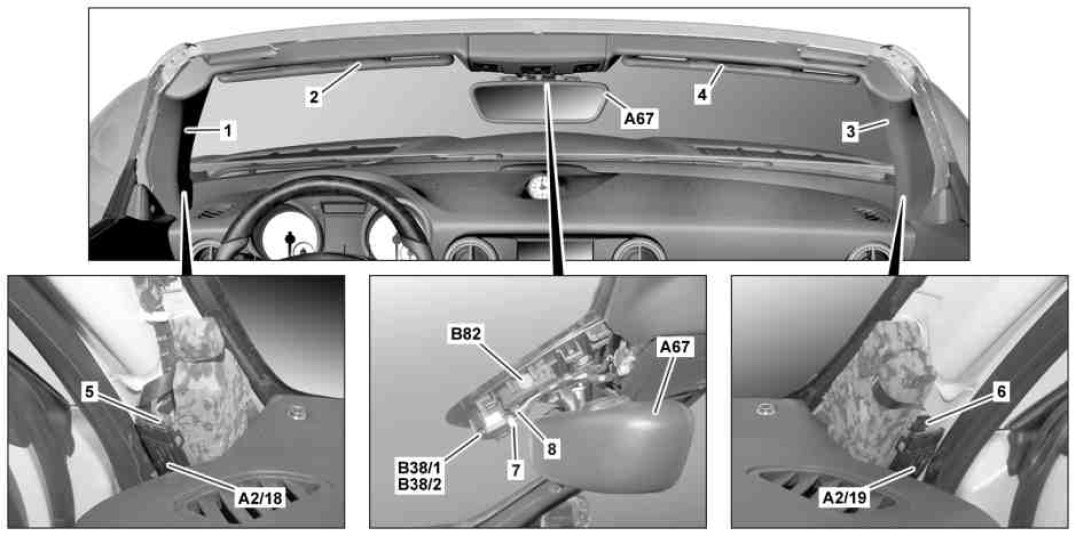

MODEL 172.4





1 Inner A-pillar paneling
2 Sun visor
3 Inner A-pillar paneling
4 Sun visor
5 Electrical connector
6 Electrical connector
7 Electrical connector
8 Electrical connector

A2/18 FM, AM and CL [ZV] antenna amplifier
A2/19 FM 2, DAB and TV 3 antenna amplifier
A67 Inside rearview mirror

B38/1 Light sensor (without code (345) Rain sensor)
B38/2 Rain/light sensor (with code (345) rain sensor)
B82 Vehicle interior humidity/ temperature sensor (with code (B03) ECO start-/stop function)








110 589 03 59 00
Mounting wedge
