AR67.10-P-1000W Remove/Install Windshield




AR67.10-P-1000W Remove/Install Windshield
MODEL 172.4

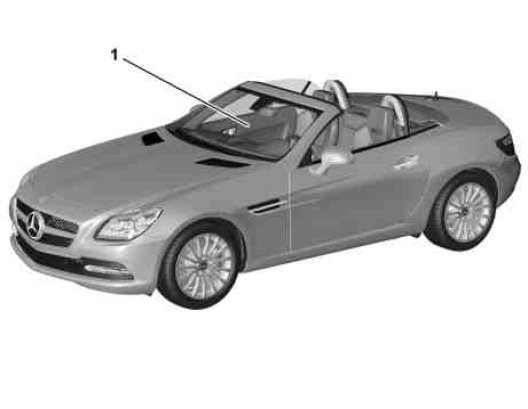

1 Windshield














000 589 86 63 00
Intermediate piece





129 589 03 21 00
Feeler gauge
