AR67.10-P-1000-02W Replace Rubber Window Spacers

AR67.10-P-1000-02W Replace Rubber Window Spacers





168 589 05 63 00
Roller

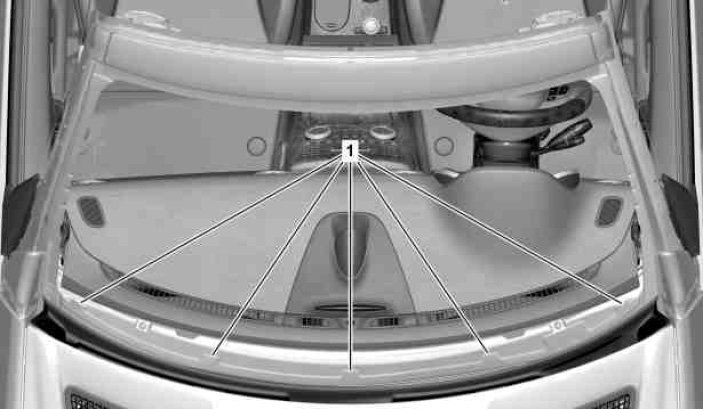

1 Glue rubber window spacers (1) to lower body flange at old positions.
Remove protective foil from rubber window spacers (1) only on one side.





Replace sealing lip (2).

Only when reusing removed windshield (3).

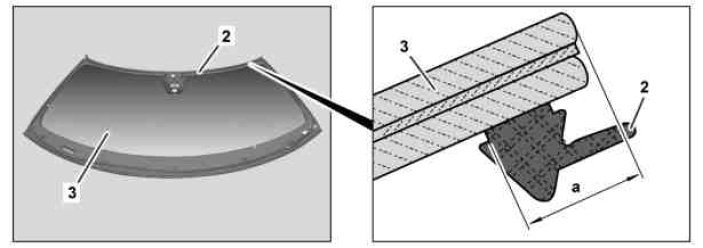

2 Remove old sealing lip (2) from windshield (3).

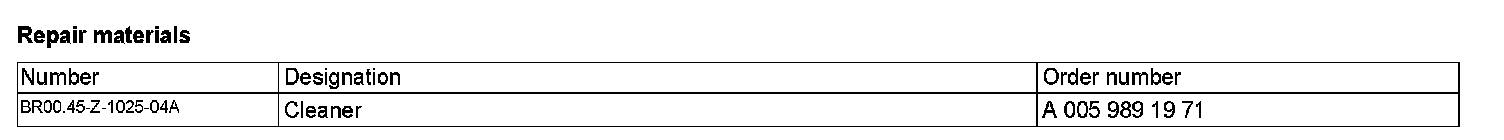

3 Remove glue residues from windshield (3).
4 Remove protective foil from sealing lip (2) and glue sealing lip (2) to upper edge of windshield (3) at a distance of 8 mm (dimension a).
Firmly press on sealing lip (2) with roller.
