Quarter Window Regulator: Service and Repair



AR67.39-P-4150V Remove/install Electric Power Window On Rear Side Window

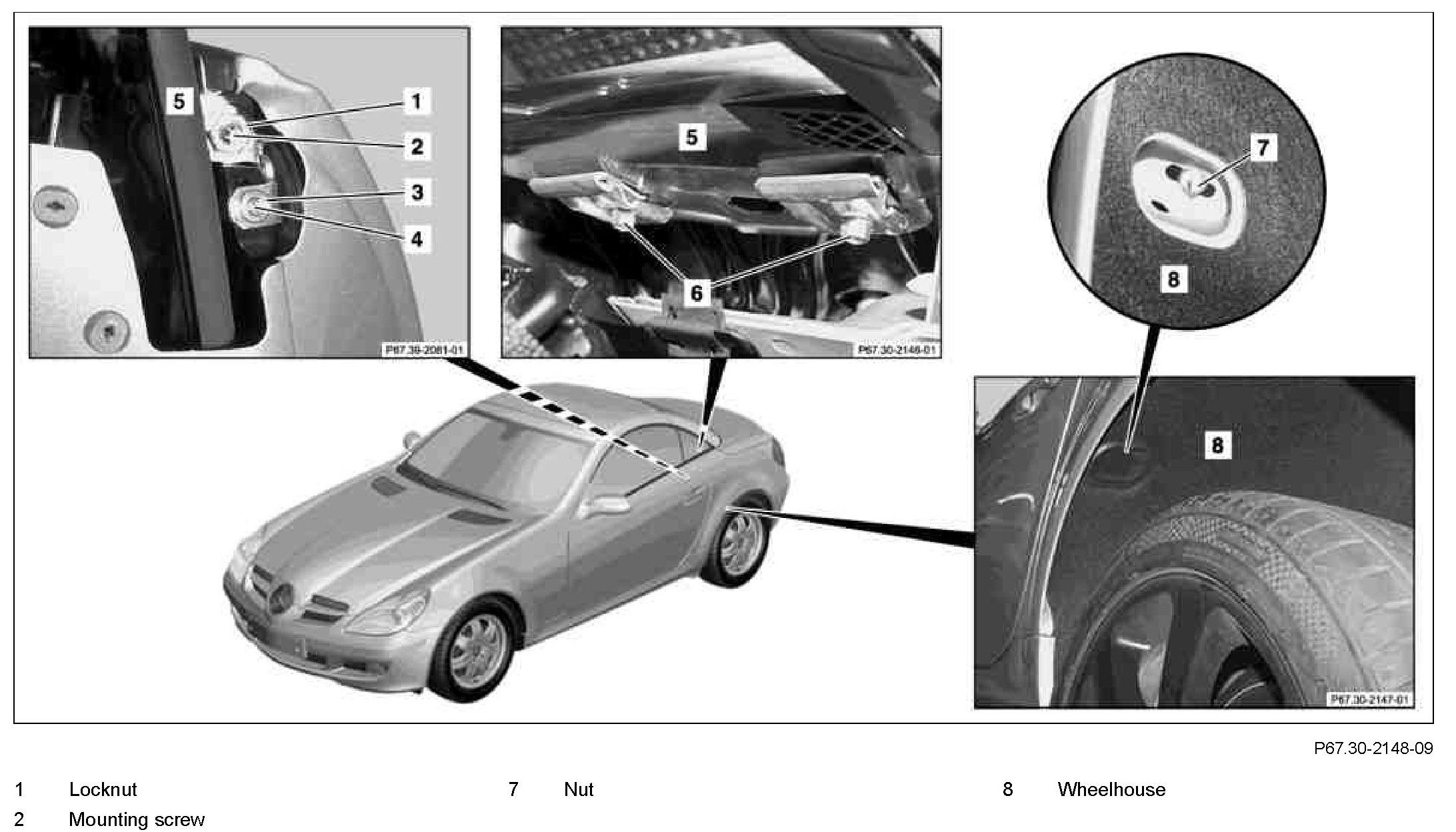

Component Identification:

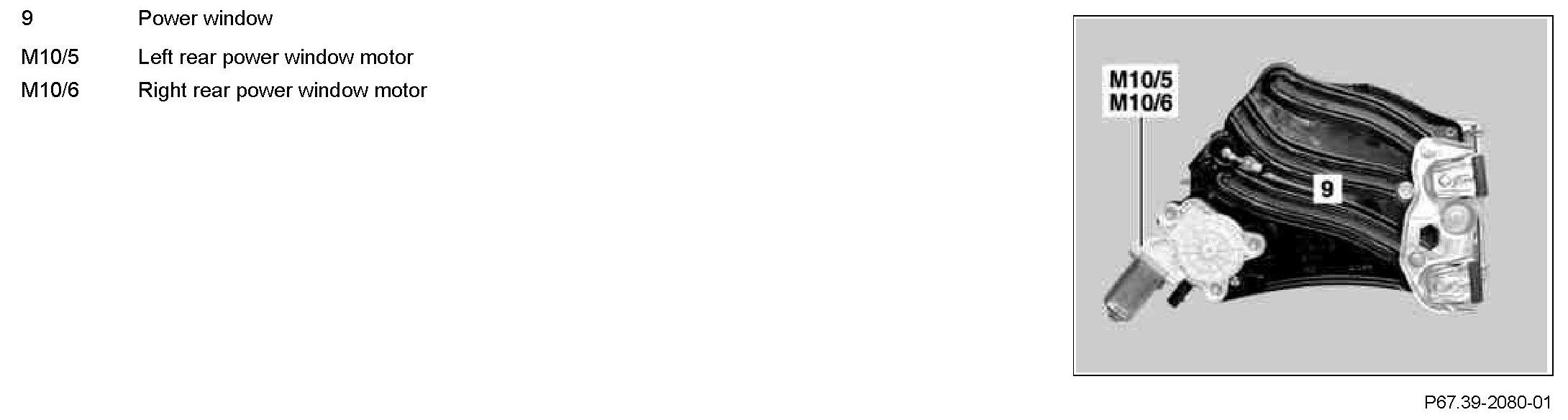

Component Identification:

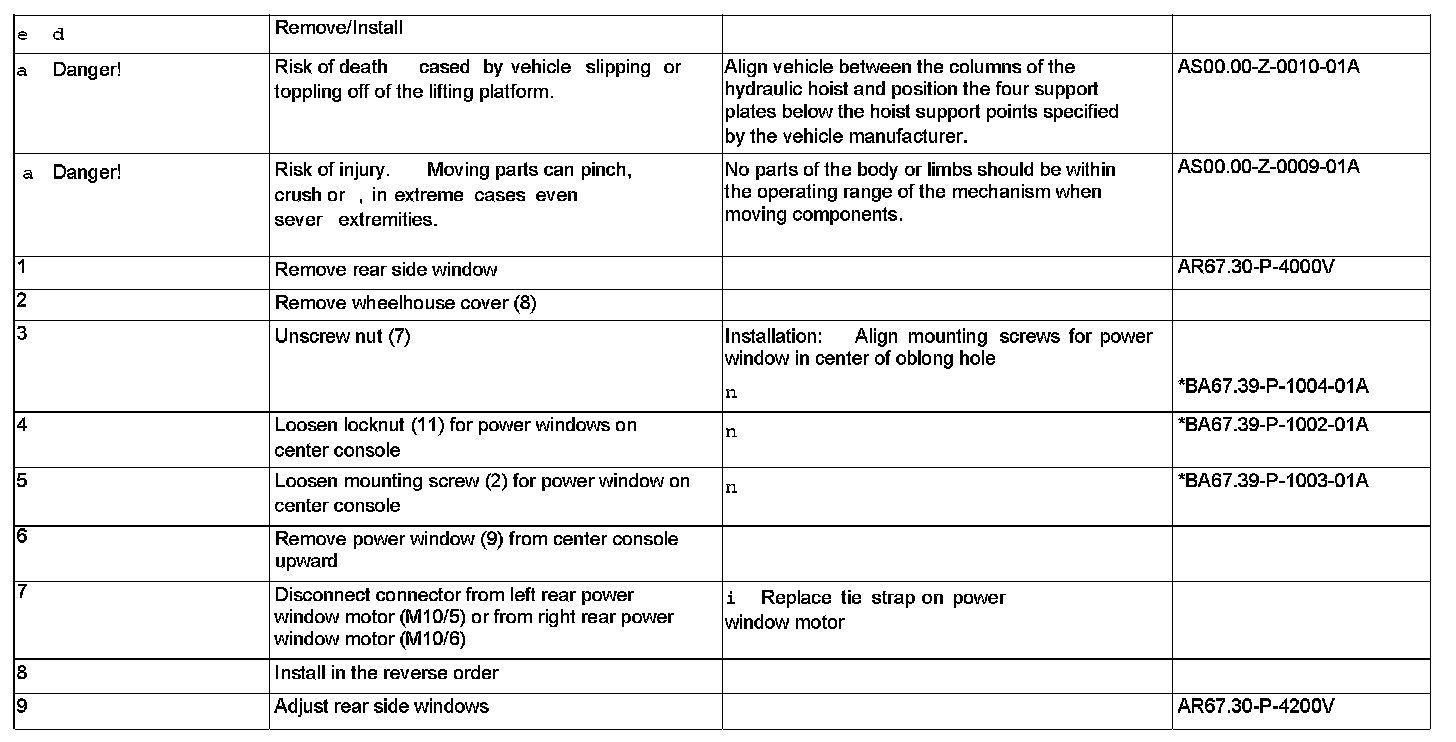

Steps 1 - 9:

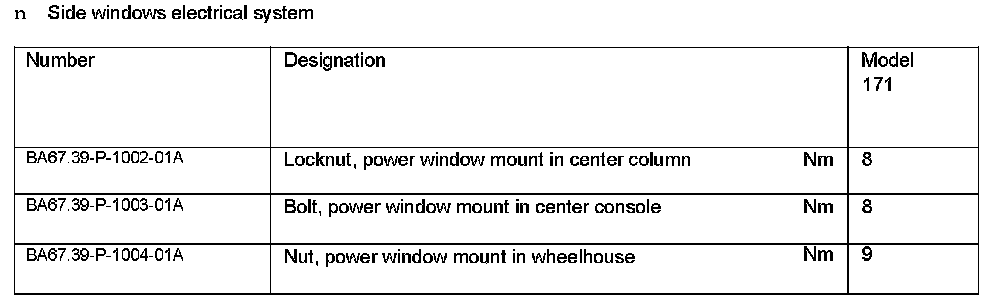

Side Windows Electrical System:
