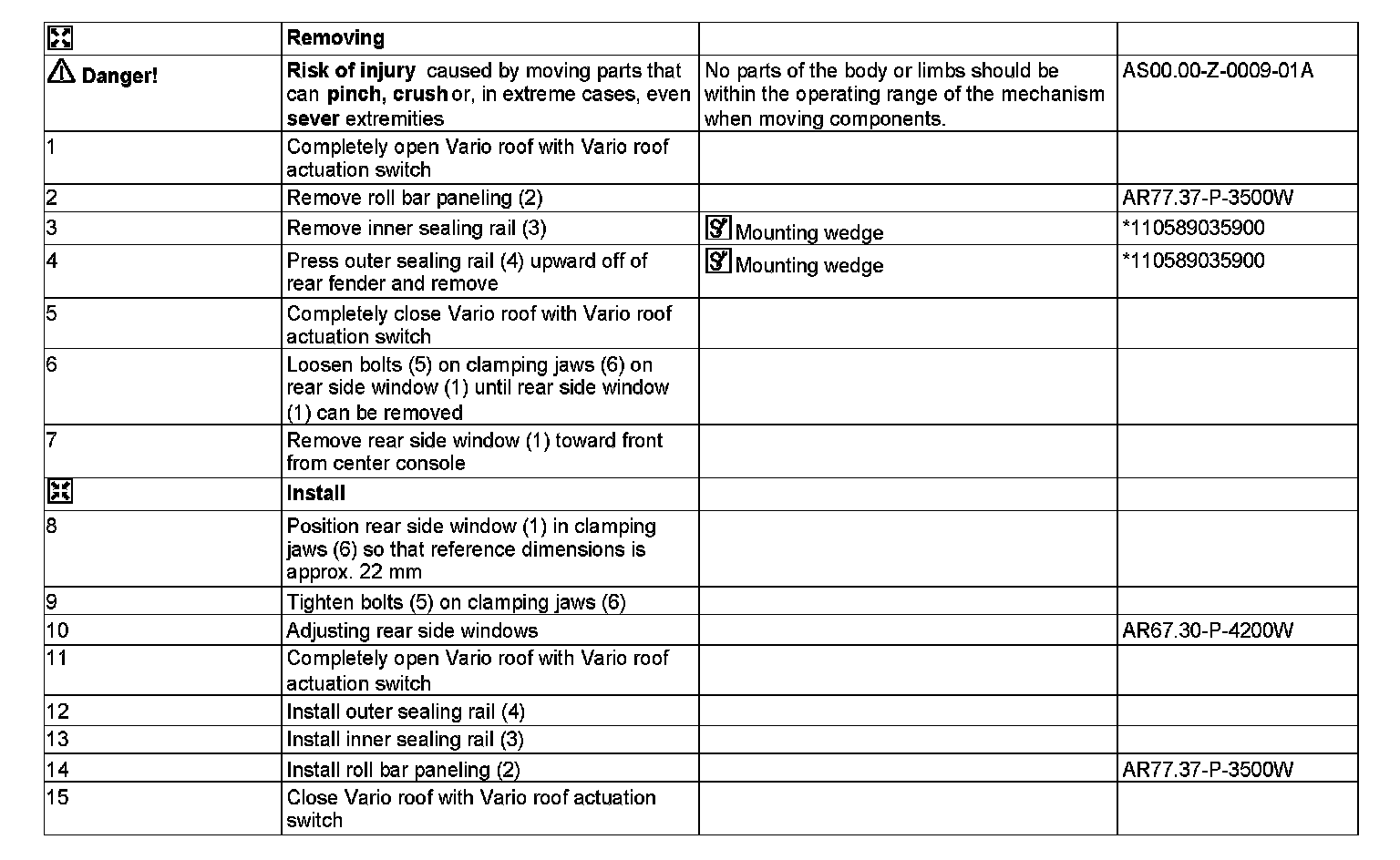

AR67.30-P-4000W Remove/Install Rear Side Window

AR67.30-P-4000W Remove/Install Rear Side Window
MODEL 172.4

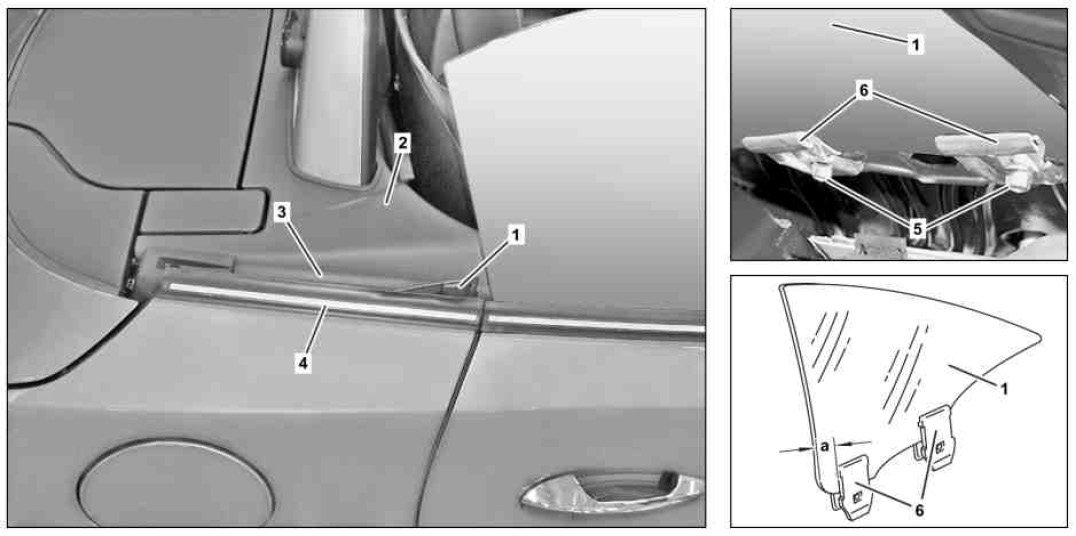

1 Rear side window
2 Roll bar paneling
3 Inner sealing rail
4 Outer sealing rail
5 Bolts
6 Clamping jaws

a Reference dimension








110 589 03 59 00
Mounting wedge
