AR72.10-P-1950-06W Basic Setting for Front Window

AR72.10-P-1950-06W Basic Setting For Front Window





Checking

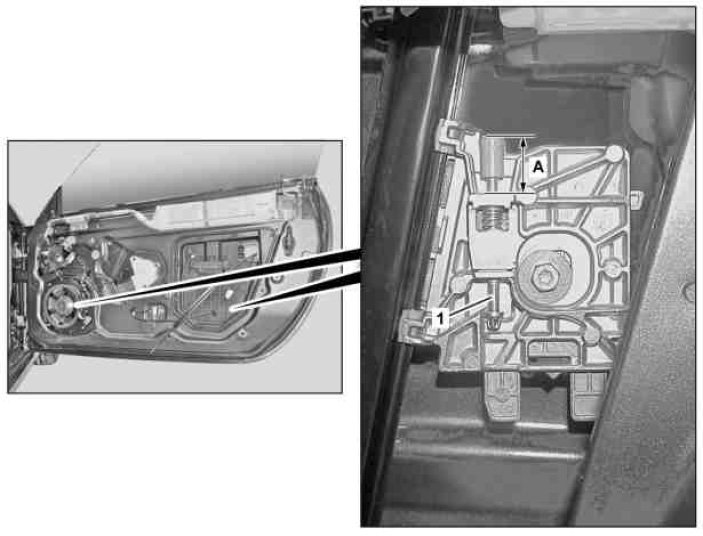

1 Check reference dimension (A) on front and rear height stop (1).
Reference dimension (A) must be 22.0 mm.
Front crank window must be completely open.

Adjust

2 Adjust reference dimension (A) by turning and front rear height stop (1).
