AR77.35-P-1610W Remove/ Install Bottom Rear Window Seal at Vario Roof

AR77.35-P-1610W Remove/ Install Bottom Rear Window Seal At Vario Roof
MODEL 172.4

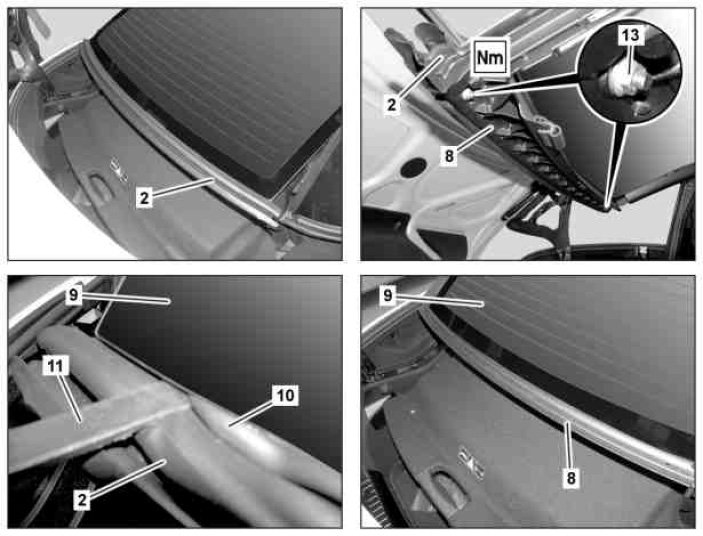

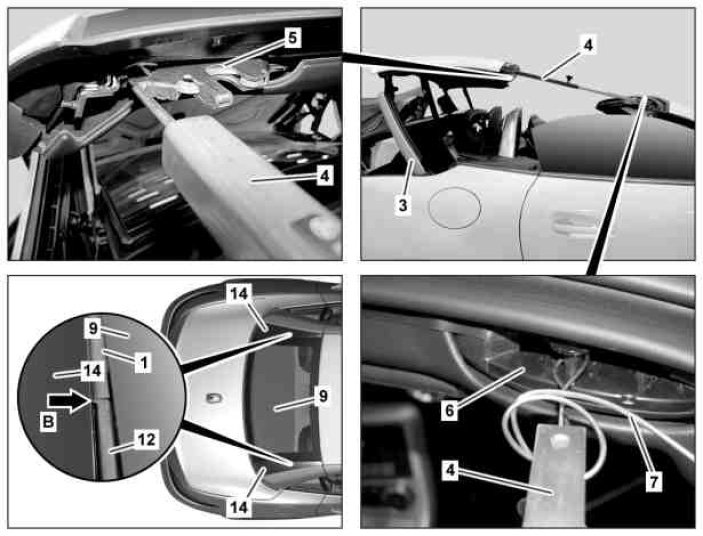

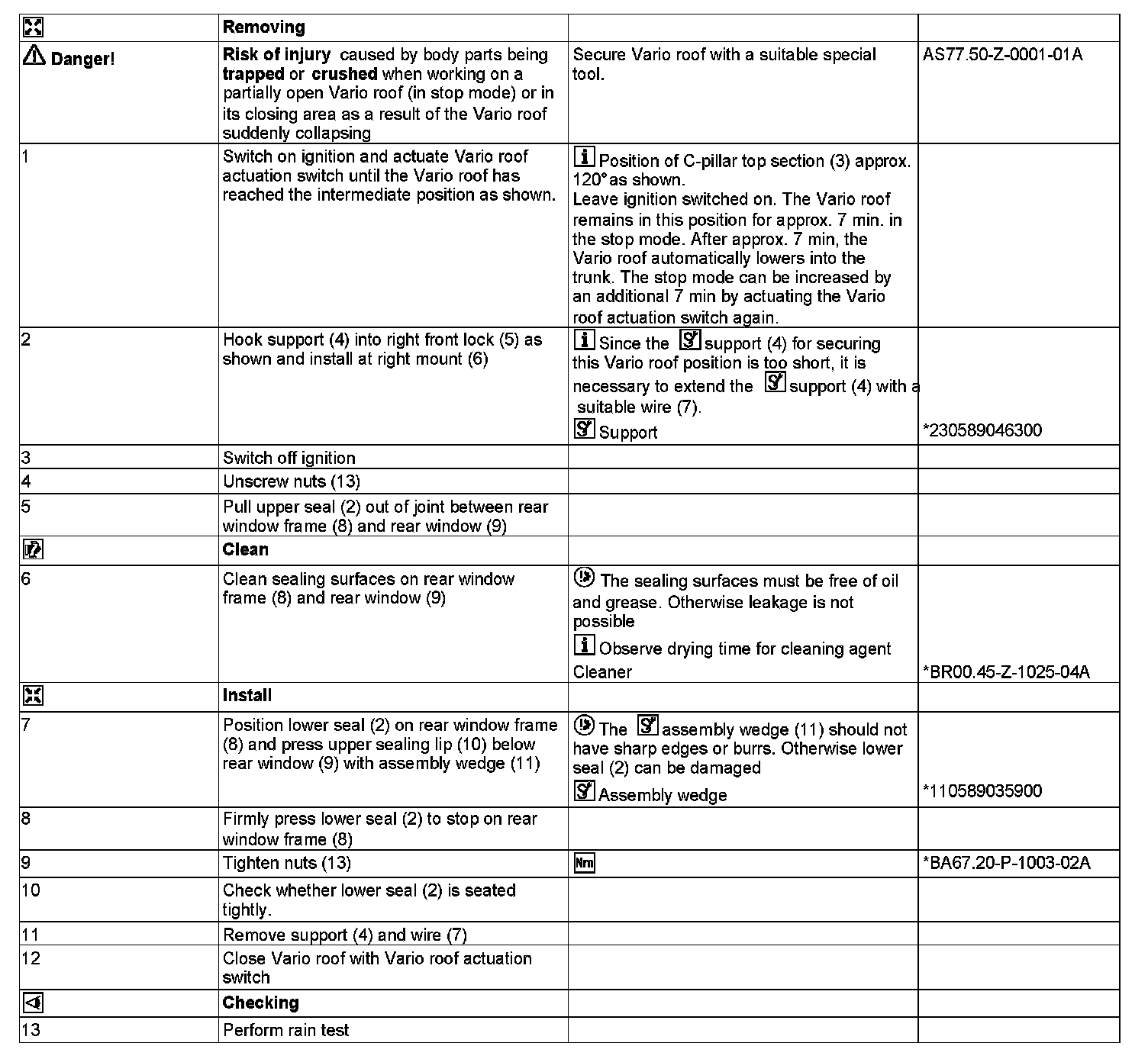

1 Upper seal
3 C-pillar upper section
4 Support
5 Front catch
6 Support
7 Wire
9 Rear window
12 Inner C-pillar seal
14 C-pillar cover





2 Lower seal
8 Rear window frame
9 Rear window
10 Upper sealing lip
11 Assembly wedge

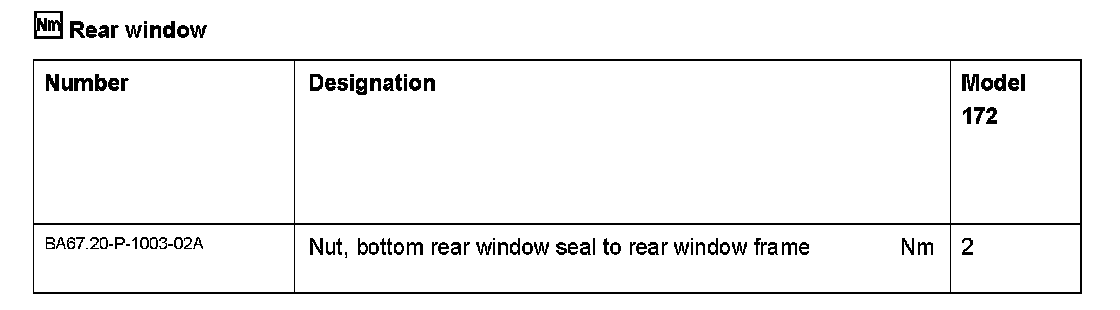

13 Nut











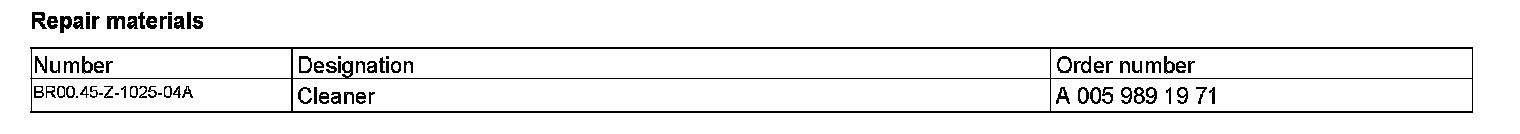

110 589 03 59 00
Mounting wedge





230 589 04 63 00
Support
