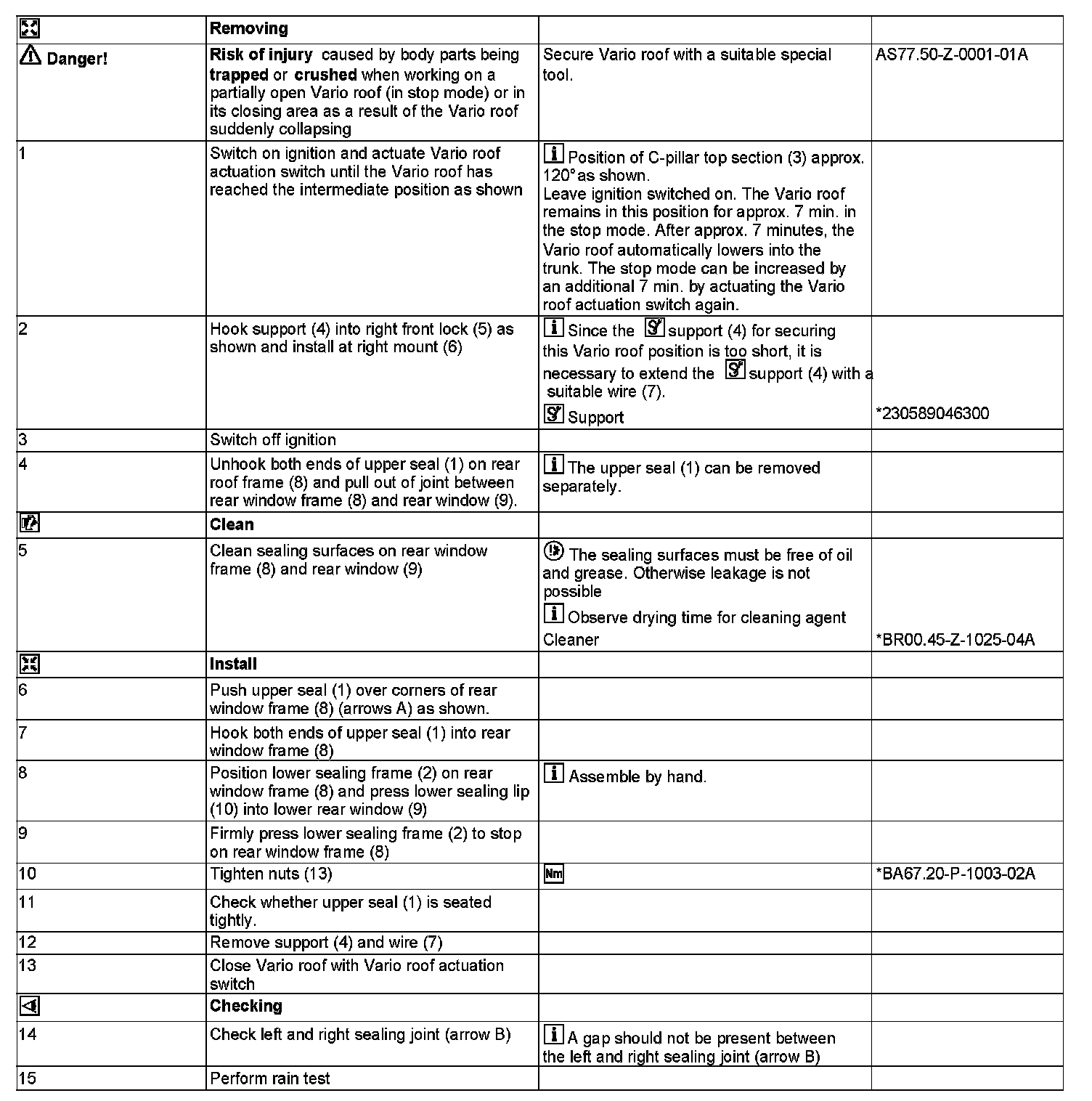

AR77.35-P-1600W Remove, Install Upper Seal on Rear Window on Vario Roof

AR77.35-P-1600W Remove, Install Upper Seal on Rear Window on Vario Roof
MODEL 172.4

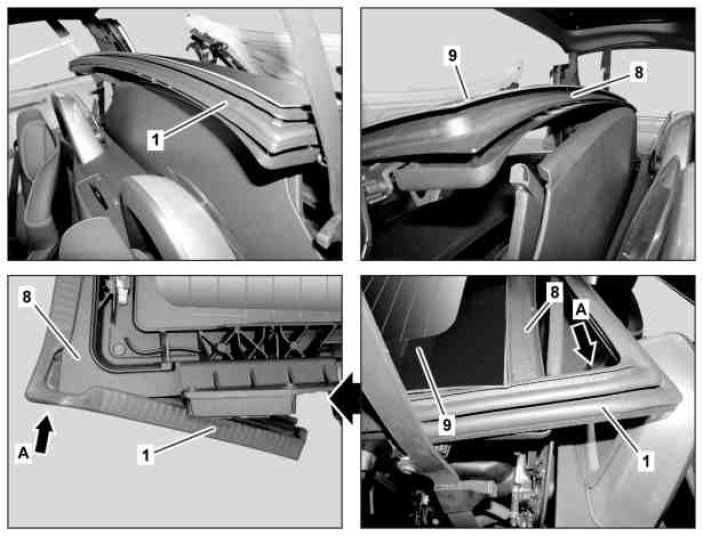

1 Upper seal
3 C-pillar upper section
4 Support
5 Front catch
6 Support
7 Wire
9 Rear window
12 Inner C-pillar seal
14 C-pillar cover





1 Upper seal
8 Rear window frame
9 Rear window





Lower sealing frame (2)

2 Lower frame seal
8 Rear window frame
9 Rear window
10 Upper sealing lip
11 Assembly wedge

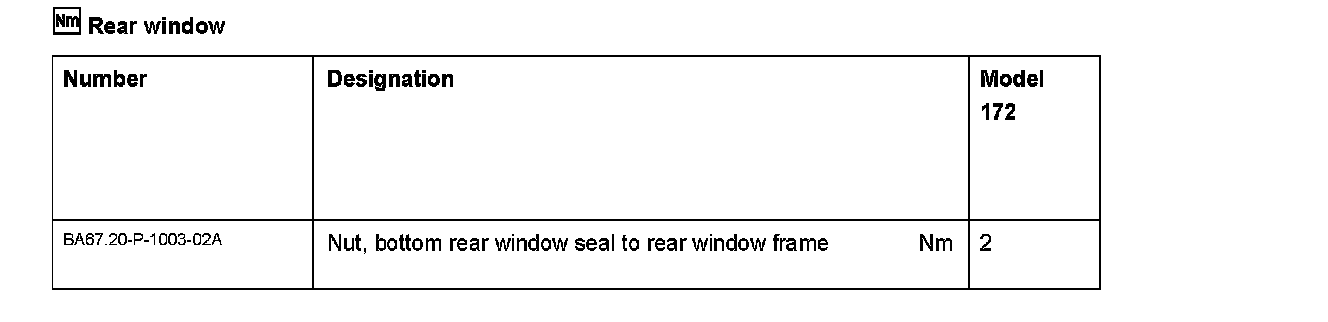

13 Nut











230 589 04 63 00
Support
