Transmission Mount: Service and Repair

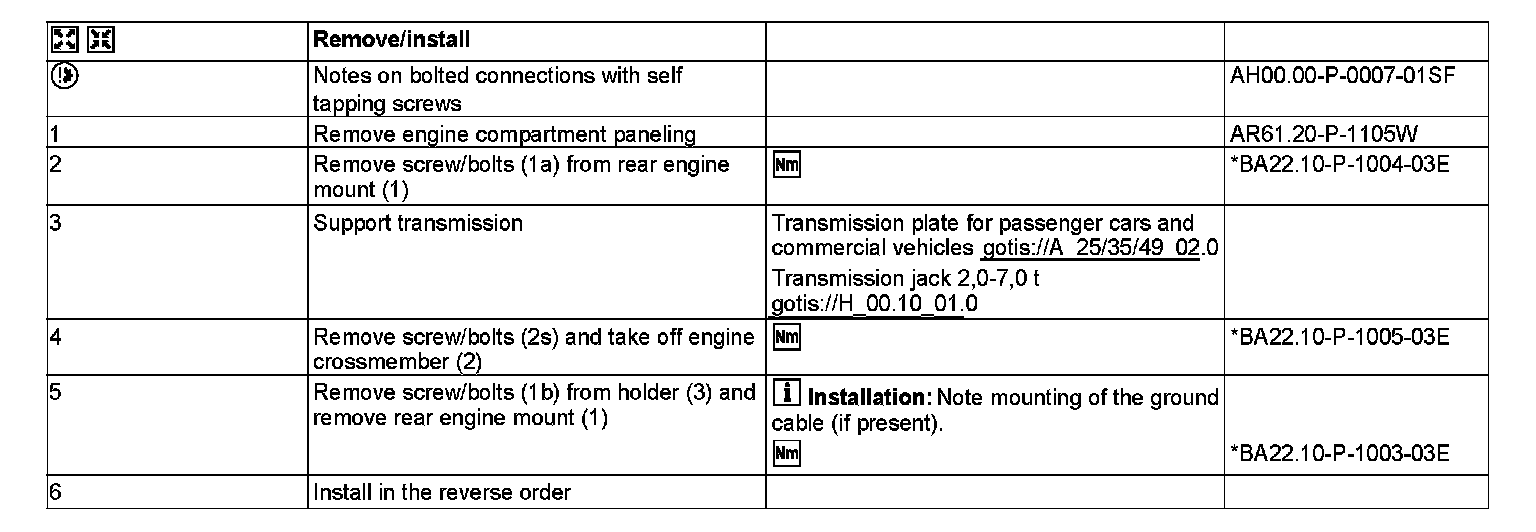

AR22.10-P-1180W Remove/Install Engine Mount Or Engine Crossmember At The Rear
ENGINES 152, 271, 276 in MODEL 172

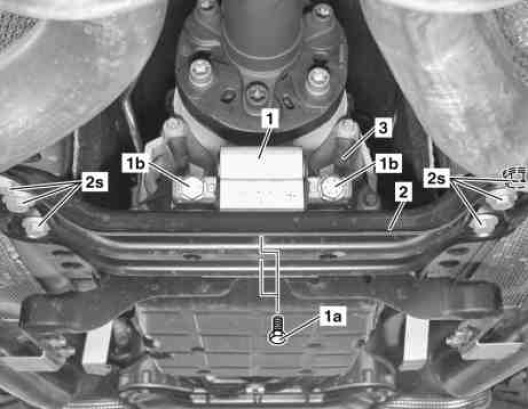

Illustrated on model 219

1 Rear engine mount
1a Screw/bolts
1b Screw/bolts
2 Engine crossmember
2s Screw/bolts
3 Bracket
