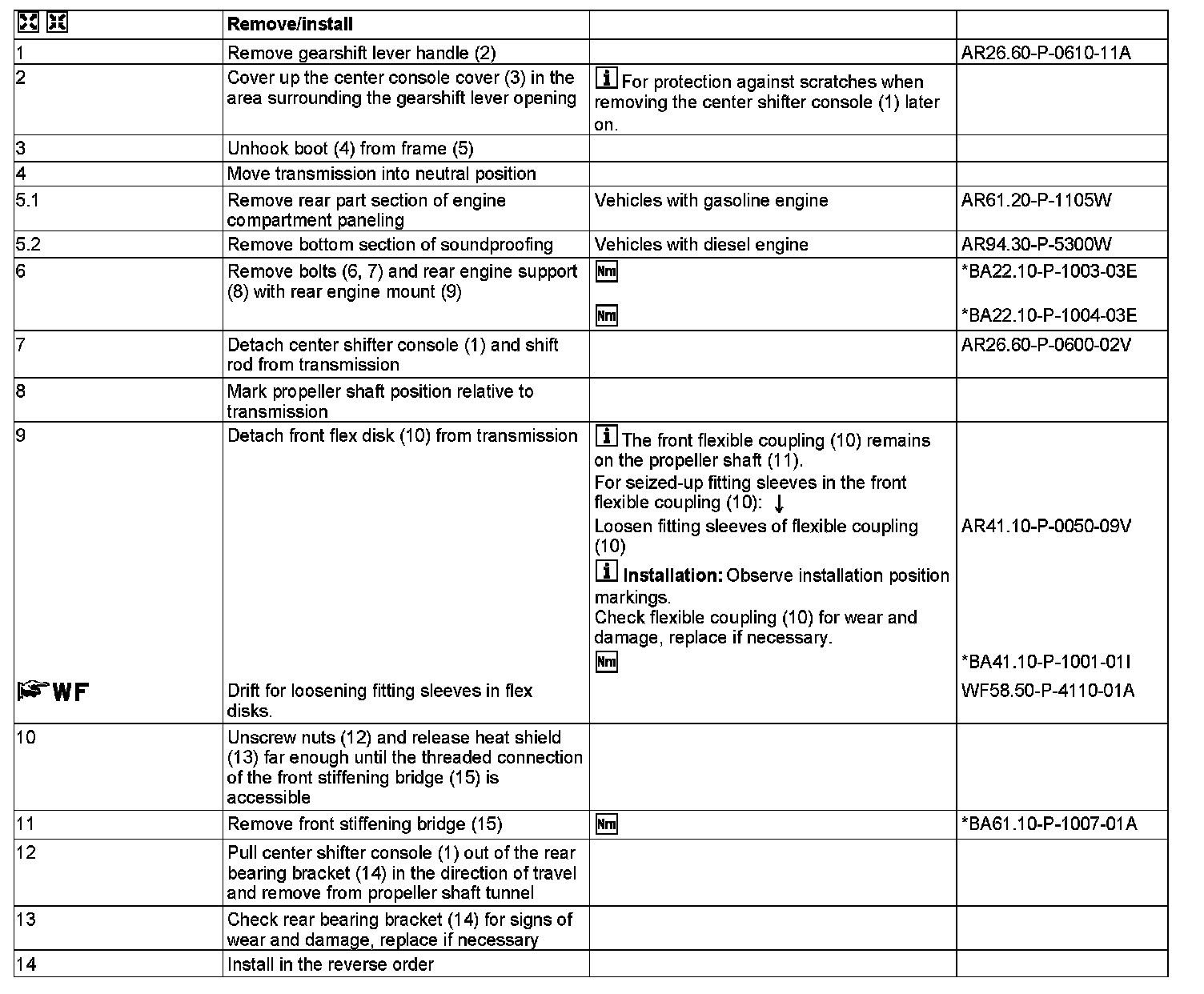

AR26.60-P-0600W Remove/Install Floor Selector

AR26.60-P-0600W Remove/Install Floor Selector
TRANSMISSION 711.6, 716.6 in MODEL 172





1 Floor-mounted shift
2 Gearshift lever handle
3 Center console trim
4 Boot
5 Frame
6 Bolts
7 Bolts
8 Rear engine support
9 Rear engine mount
10 Flex disk
11 Propeller shaft
12 Nut
13 Heat shield
15 Front crossbrace

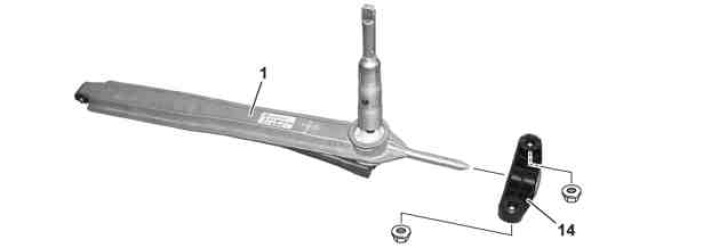

1 Floor-mounted shift
14 Rear bearing bracket
