Seals and Gaskets: Service and Repair

AR26.40-P-3840V Remove/Install Output Shaft Radial Shaft Sealing Ring
TRANSMISSION 716.6 in MODEL 171
TRANSMISSION 711.6, 716.6 in MODEL 172 with ENGINE 271

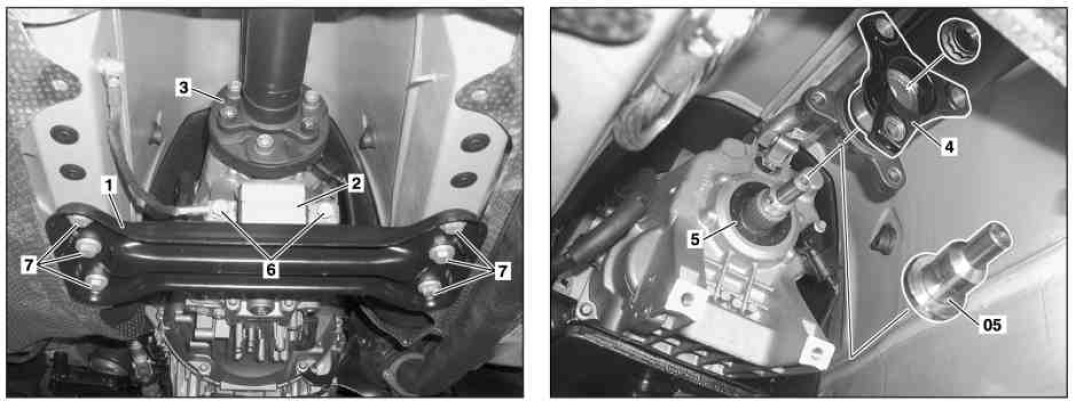

Shown on model 171.442

05 Drift
1 Engine crossmember
2 Rear engine mount
3 Flex disk
4 Output flange
5 Radial shaft seal
6 Bolts
7 Bolts





























129 589 01 07 00
Pin wrench





126 589 02 09 00
Wrench socket





100 589 02 59 00
Connecting piece





129 589 01 33 00
Puller





210 589 03 15 00
Drift
