AP41.10-P-4152-01V Check Spacers of Flexible Couplings In Vicinity of Fitted Sleeves

AP41.10-P-4152-01V Check spacers of flexible couplings in vicinity of fitted sleeves

Component Identification:

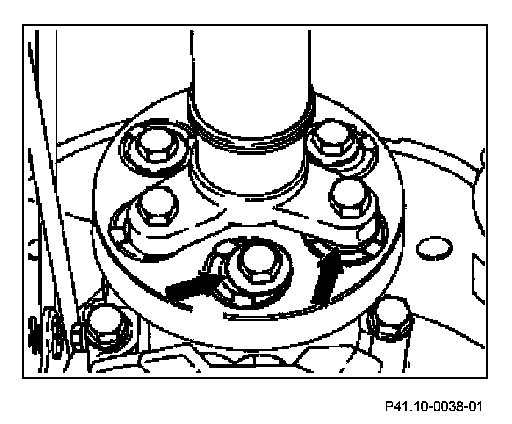

1 Check spacers in vicinity of fitted sleeves (arrows) for cracks (visual inspection).
2 If there is deformation, relieve the load on the propeller shaft. If the deformation remains, the flexible coupling must be replaced.

If there are cracks or permanent deformation, replace flexible coupling.
