AR41.10-P-0200-03W Press In Guide Sleeve

AR41.10-P-0200-03W Press in Guide Sleeve











1 Use a suitable drift to drive in the new guide sleeve.

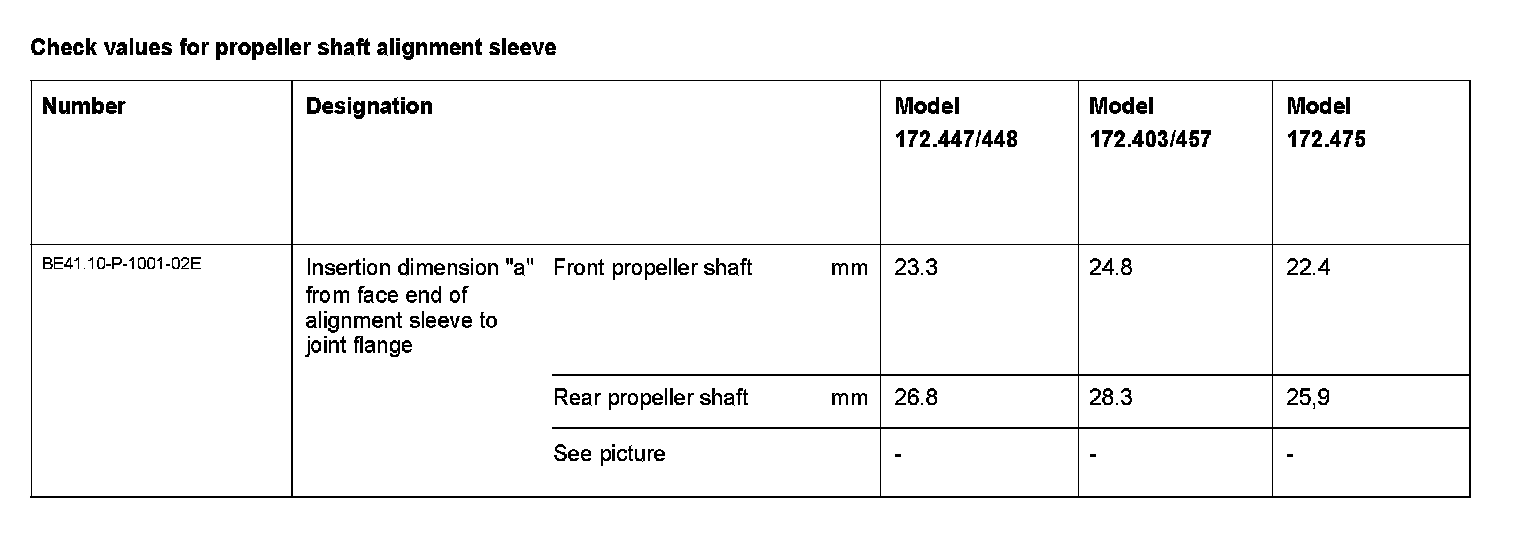

Observe press-in dimension (a) from the end face of the centering sleeve to the flange.
The specified press-in distance (a) may deviate depending on the thickness of the flexible couplings, e.g. in vehicles with vibration damper. In these cases the dimension (a) measured prior to removal should be used for installation.
