AR41.10-P-0050V Remove/Install Propeller Shaft

AR41.10-P-0050V Remove/Install Propeller Shaft
MODEL 171, 172

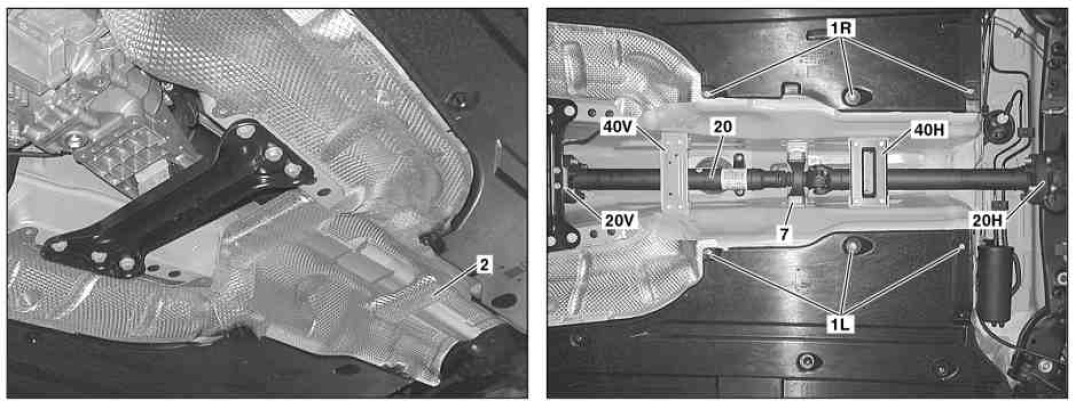

Shown on model 171.442

1L Bolts
1R Bolts
2 Shield

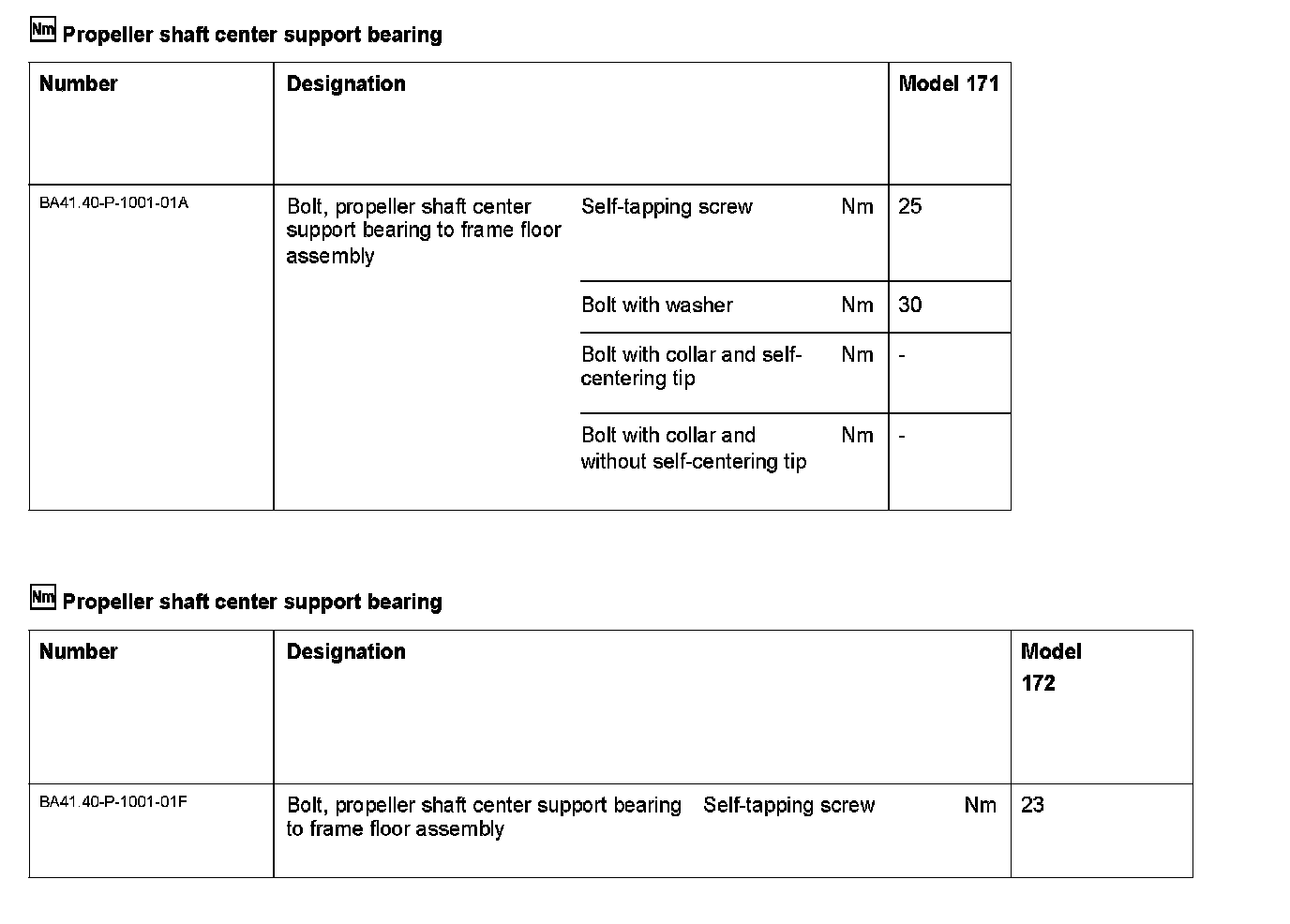

7 Propeller shaft center support bearing

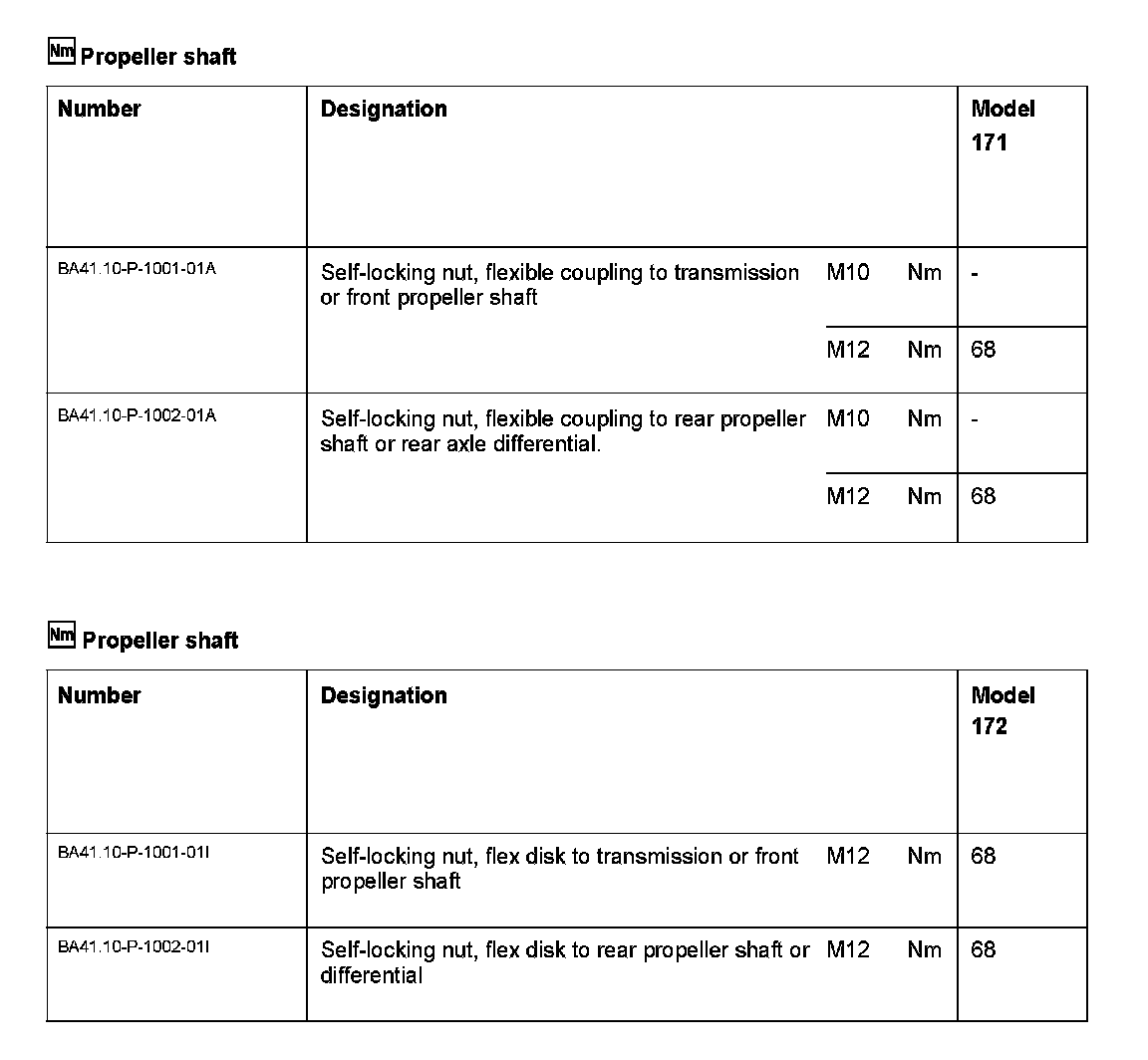

20 Propeller shaft
20H Rear flex disk
20V Front flex disk

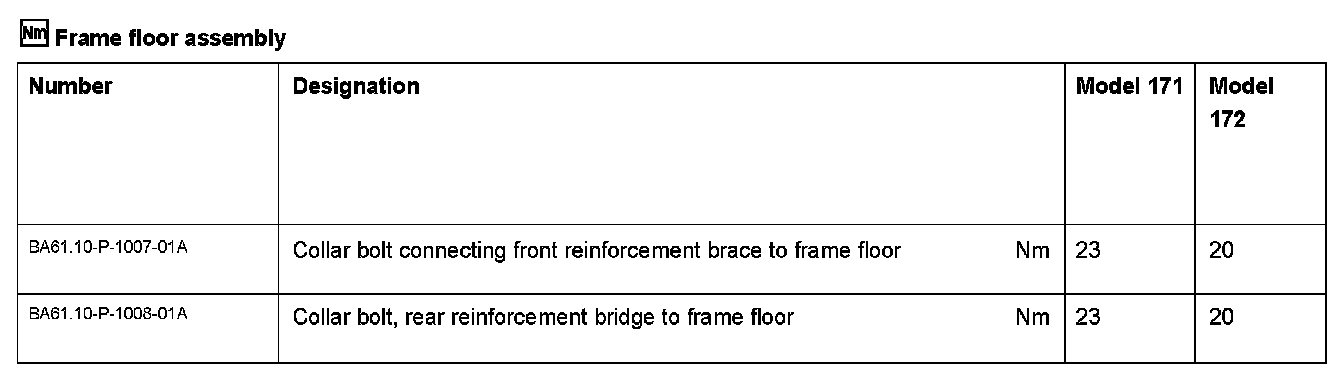

40H Rear reinforcement bridge
40V Front reinforcement brace

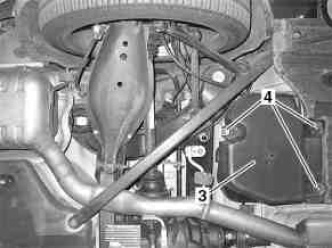

Model 171.473

3 Cover
4 Bolts
