AR35.10-P-0050V Remove/Install Rear Rubber Bushing For Center Assembly Mount In Rear Axle Carrier
AR35.10-P-0050V Remove/install rear rubber bushing for center assembly mount in rear axle carrier

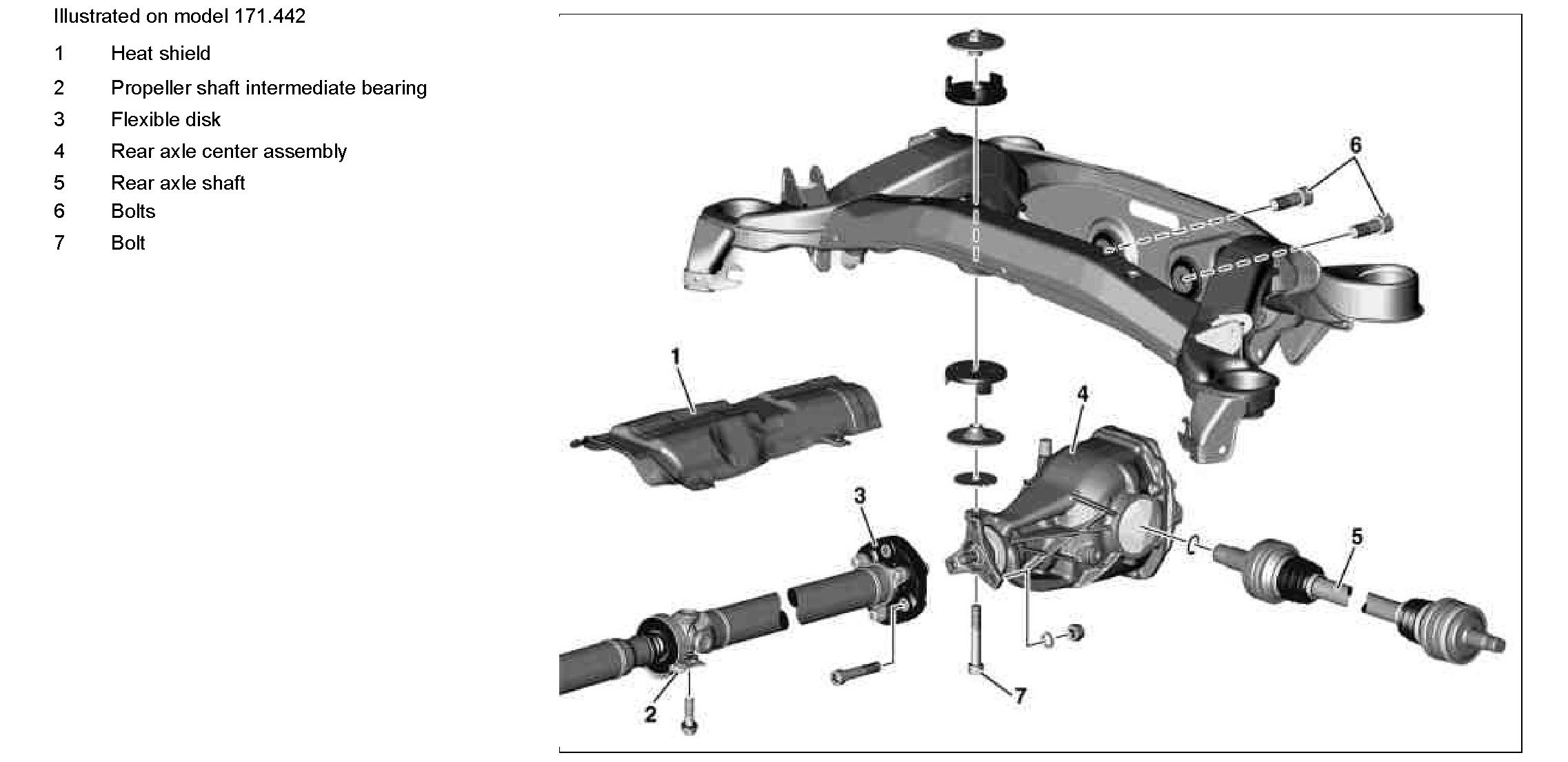

Component Identification:
Component Identification:

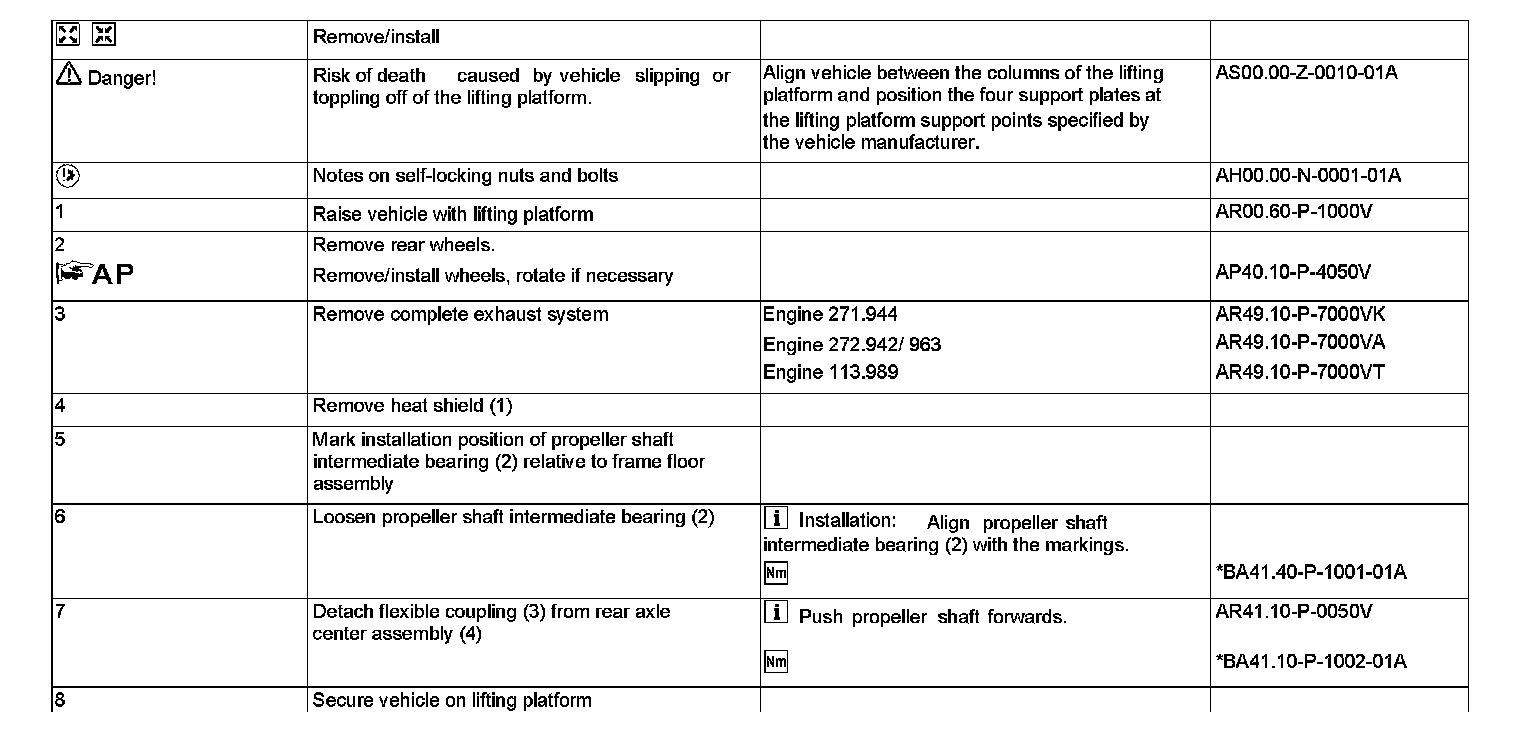

Steps 1 - 8:

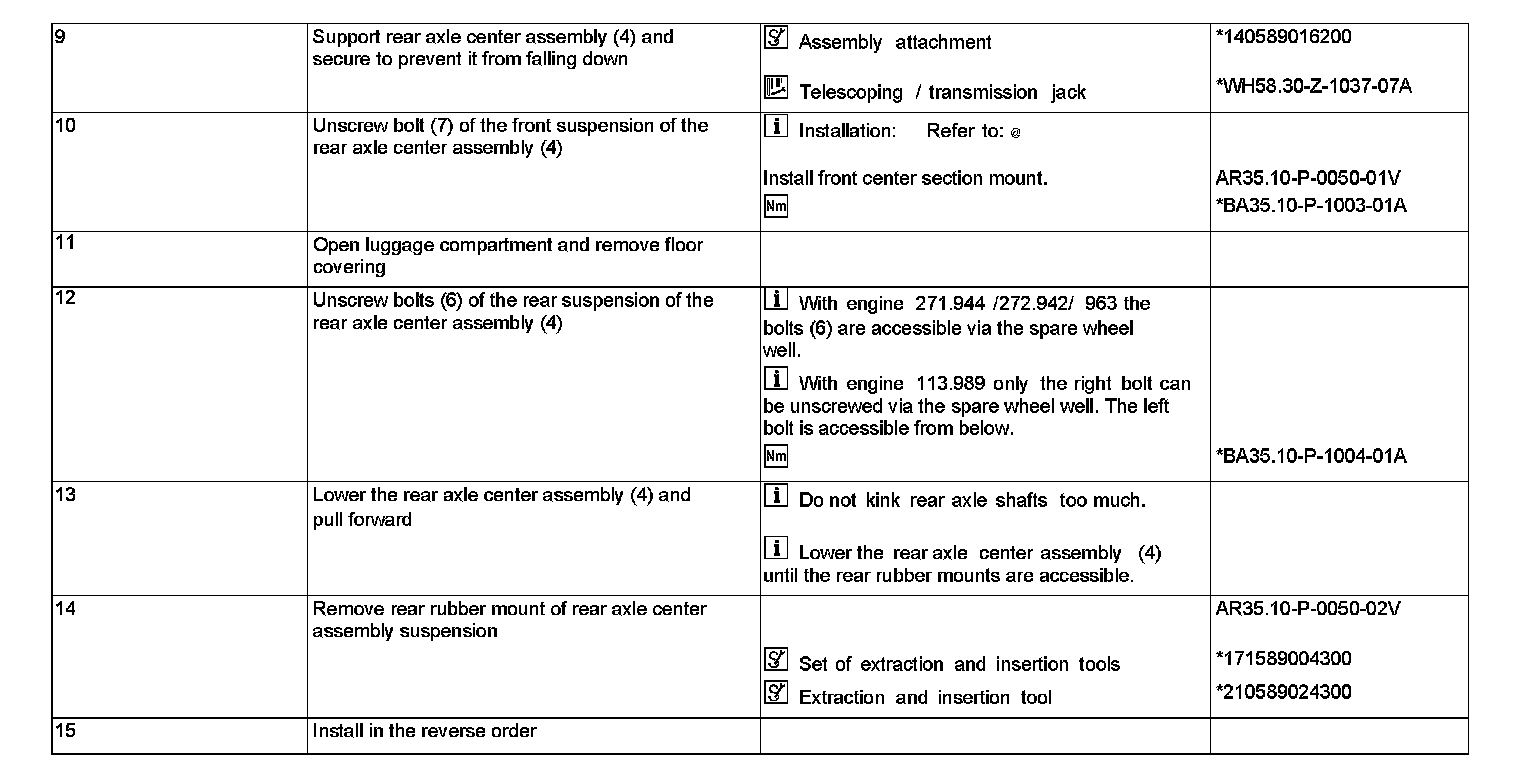

Steps 9 - 15:

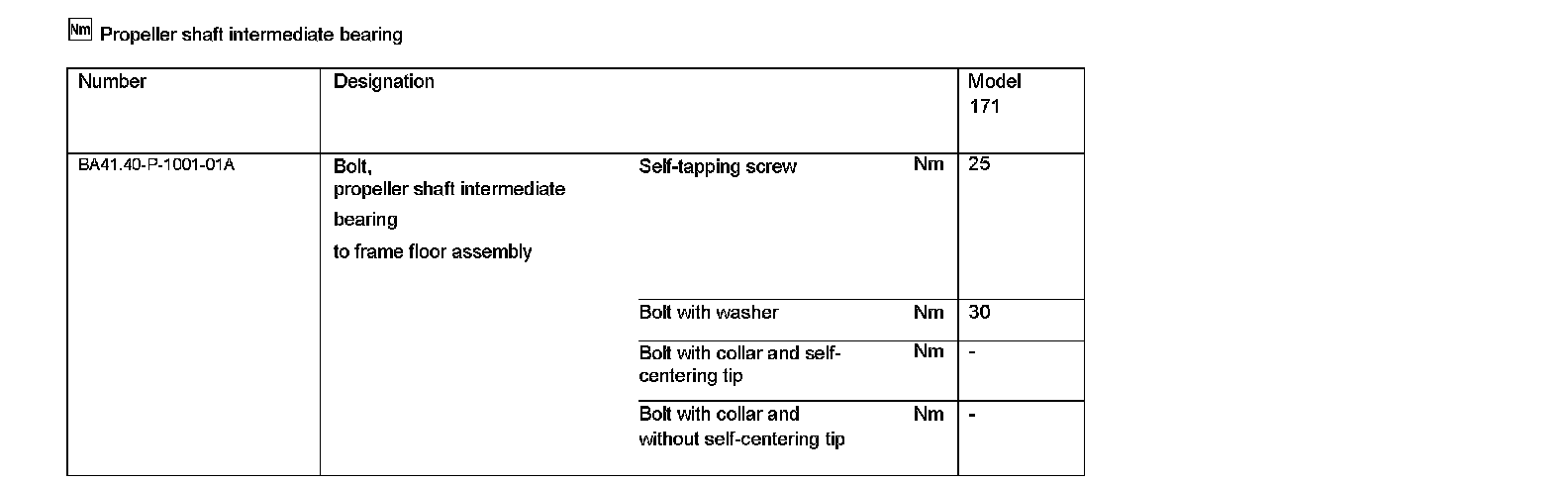

Propeller Shaft Intermediate Bearing:

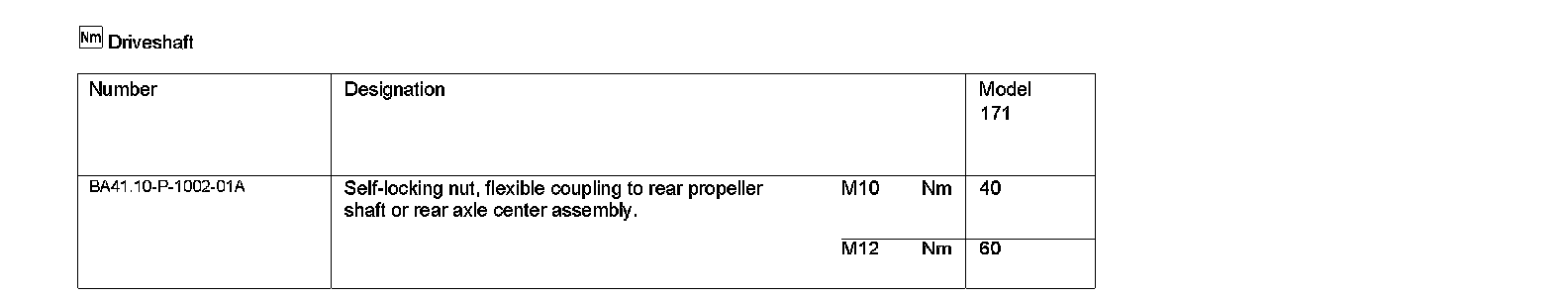

Driveshaft:

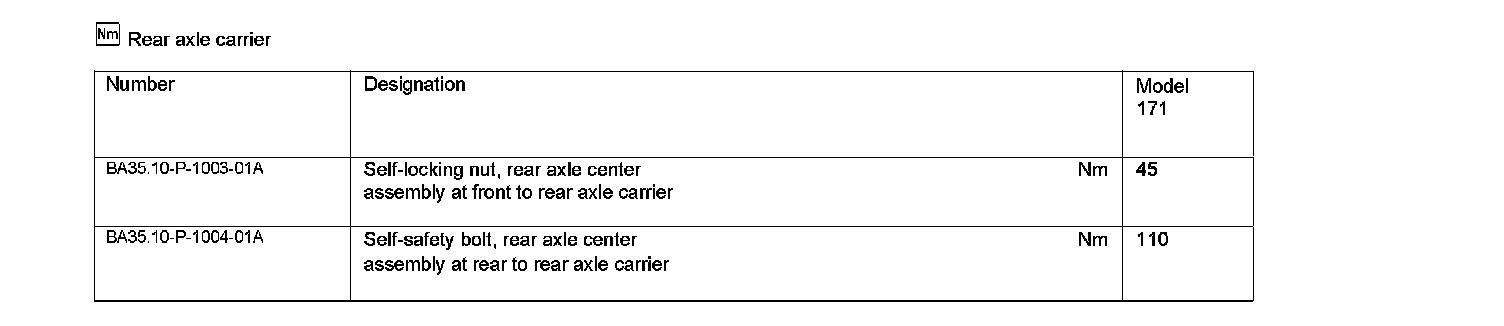

Rear Axle Carrier:
Special Tools:
Commercially Available Tools:
