AR25.10-P-0050V Remove/install clutch

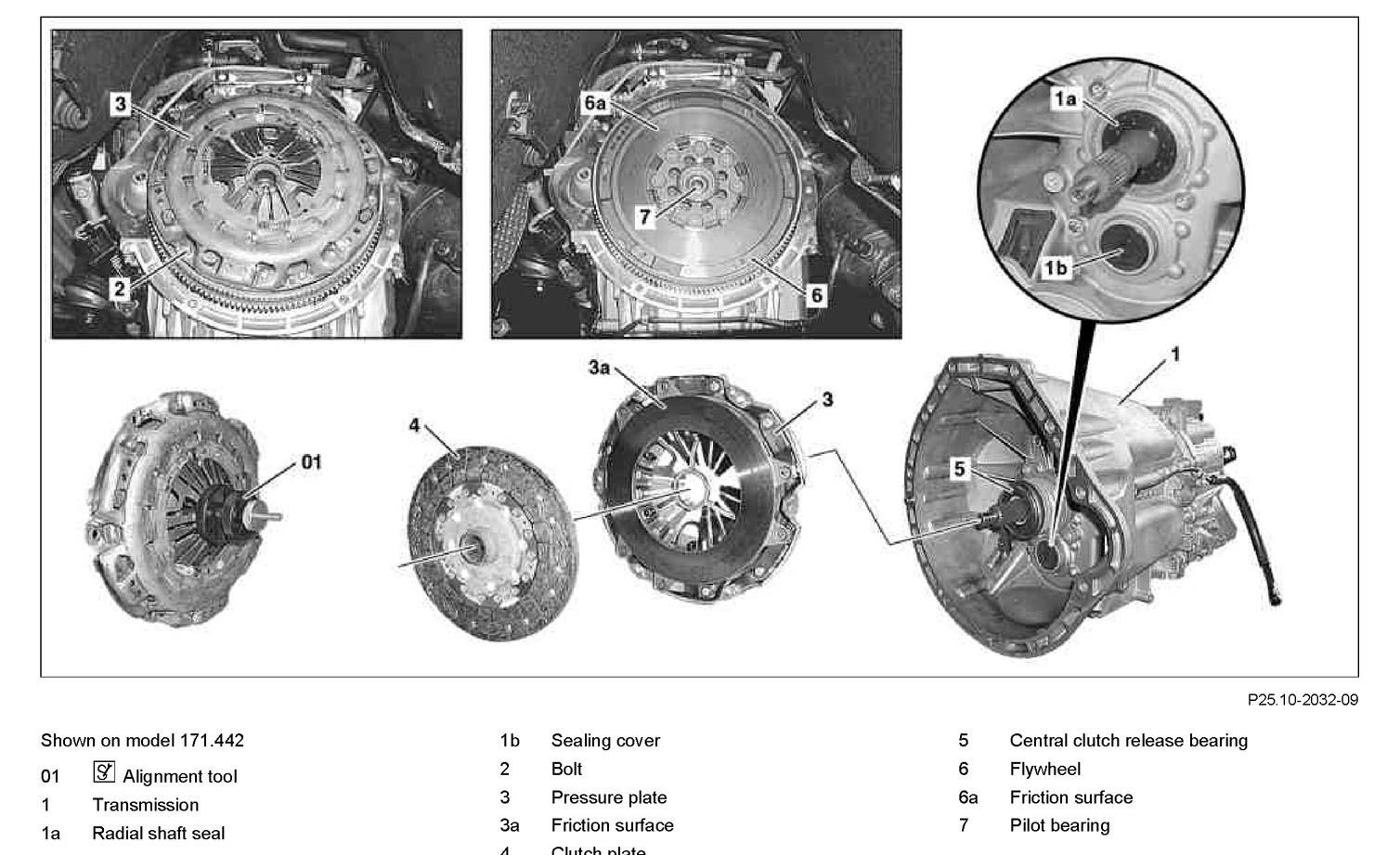

Component Identification:

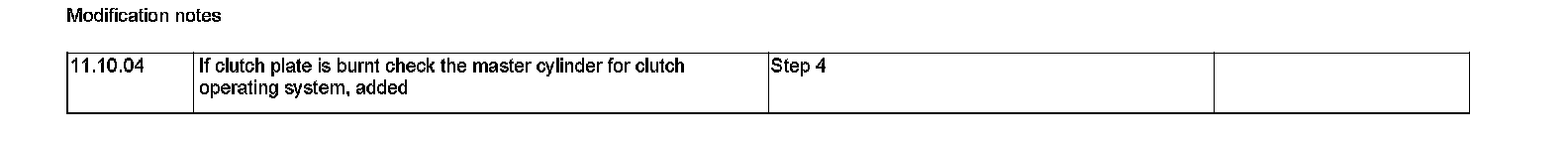

Modification Notes:

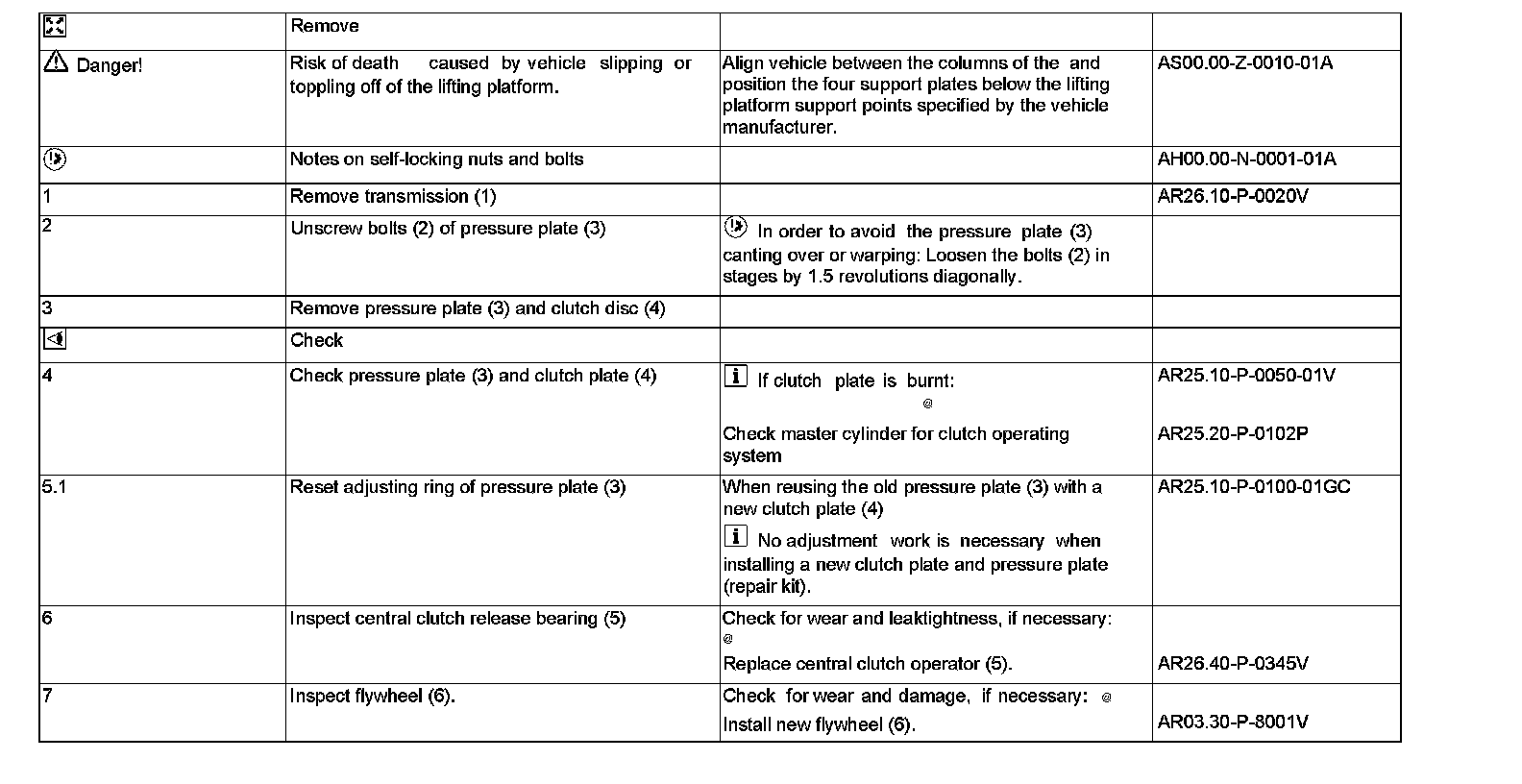

Steps 1 - 7:

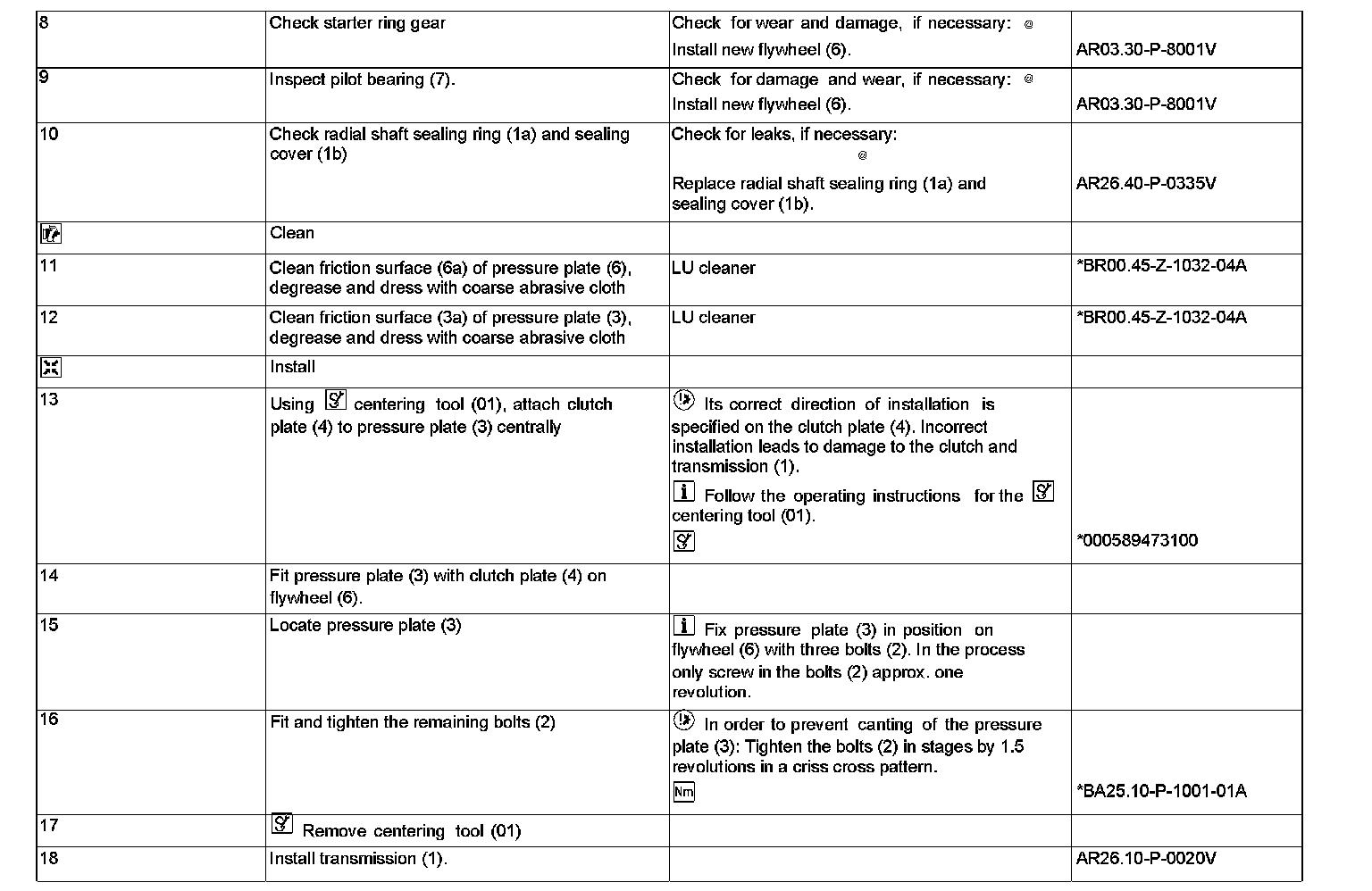

Steps 8 - 18:

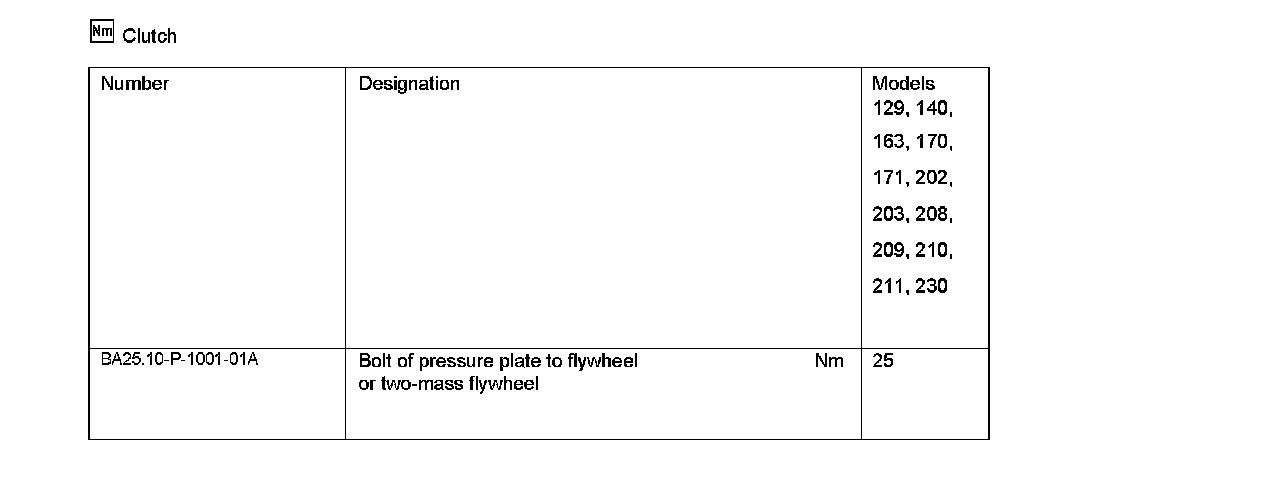

Pressure Plate:

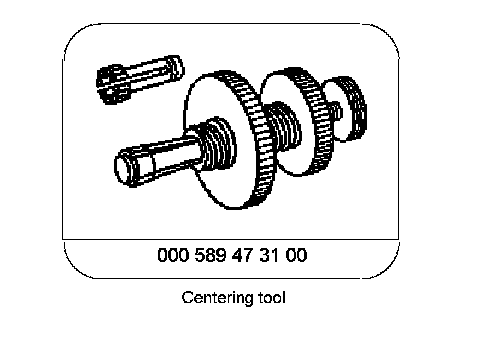

Special Tools:

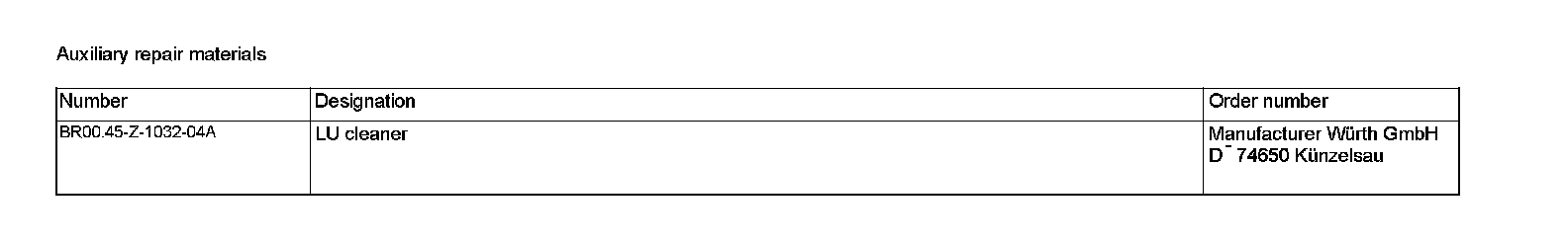

Auxiliary Repair Materials:
