FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
SLK 250 (172.477) L4-1.8L Turbo (271.861)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Clutch
>>
Service and Repair
>>
Procedures
Procedures
AR25.20-P-0070V Bleed clutch operating system

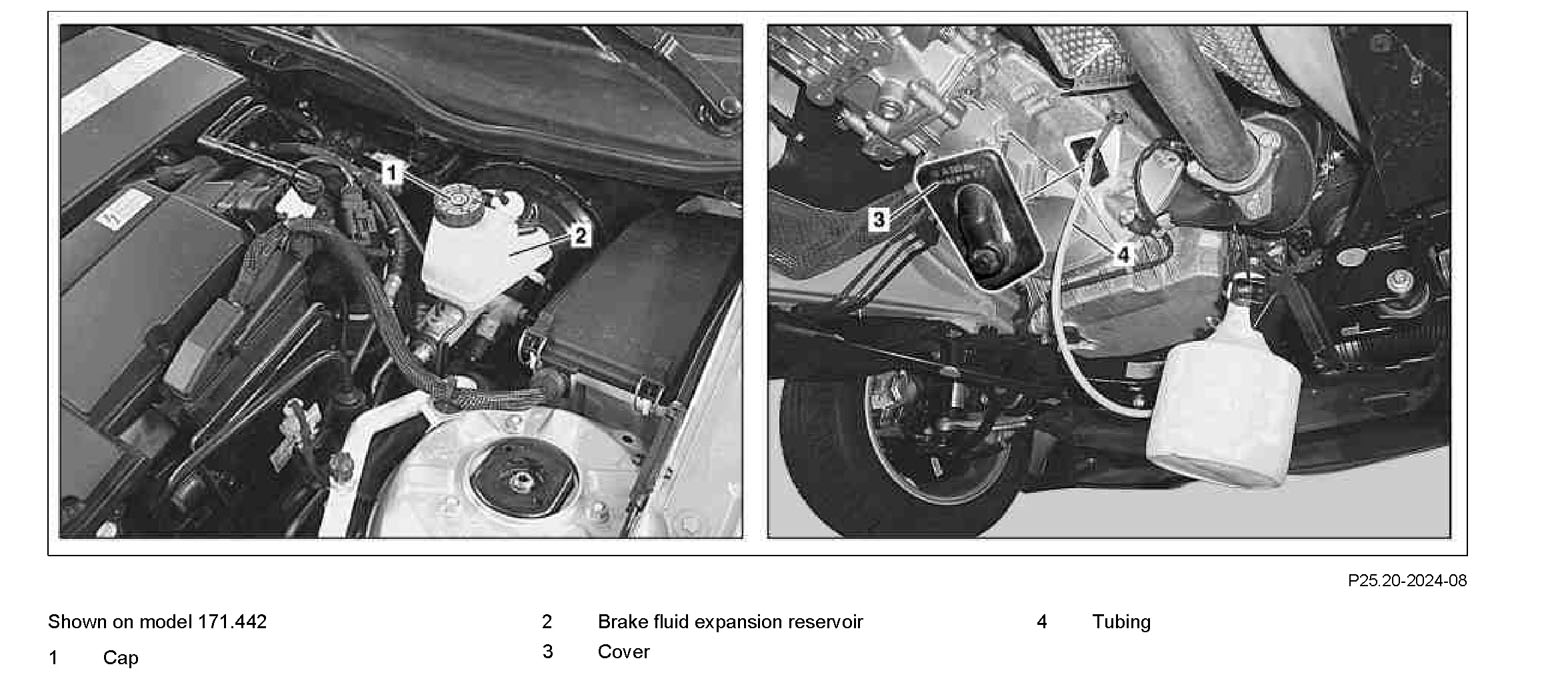

Component Identification:
Modifications Notes:
Steps 1 - 13:

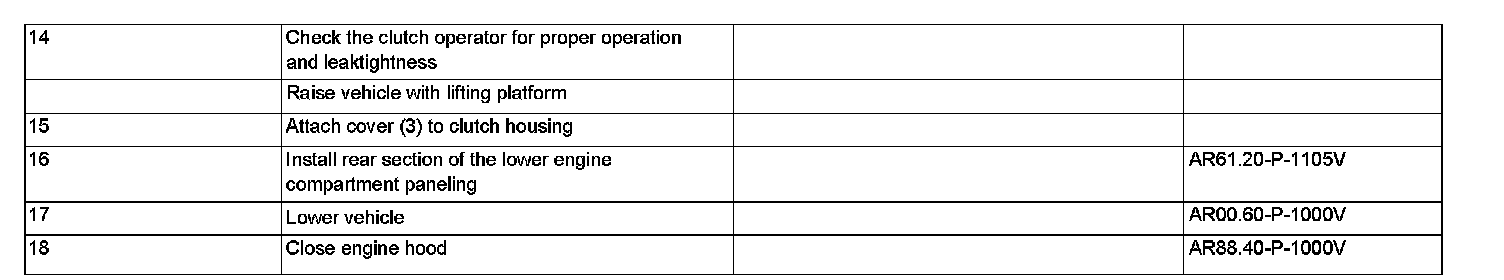

Steps 14 - 18:

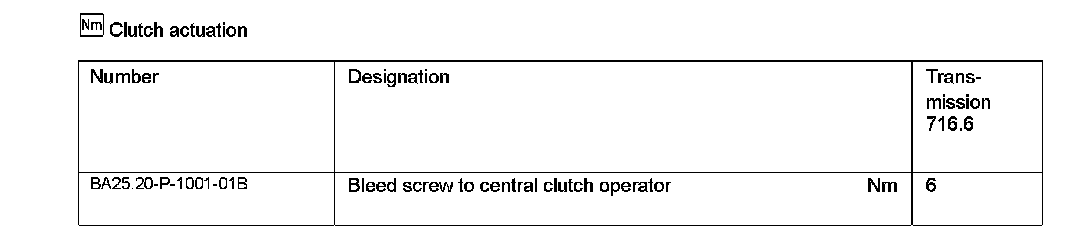

Clutch Actuation:

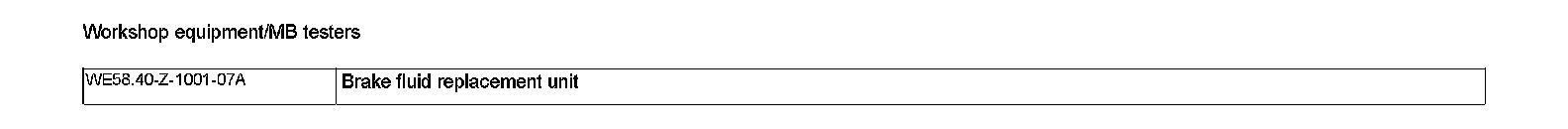

Workshop Equipment M/B Testers:
