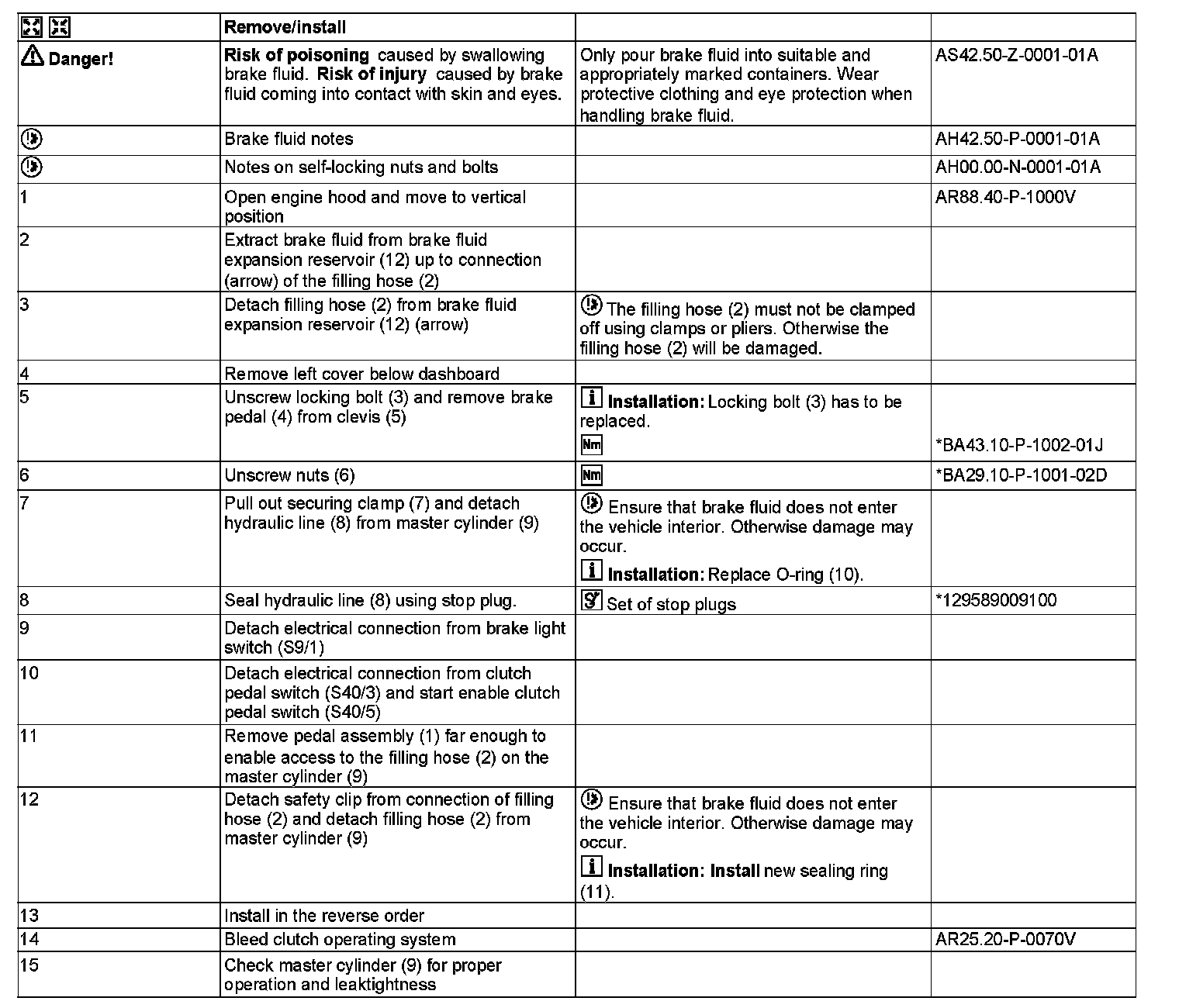

AR29.10-P-0300WA Remove/Install Pedal Assembly

AR29.10-P-0300WA Remove/Install Pedal Assembly
MODEL 172 with TRANSMISSION 711.6, 716.6

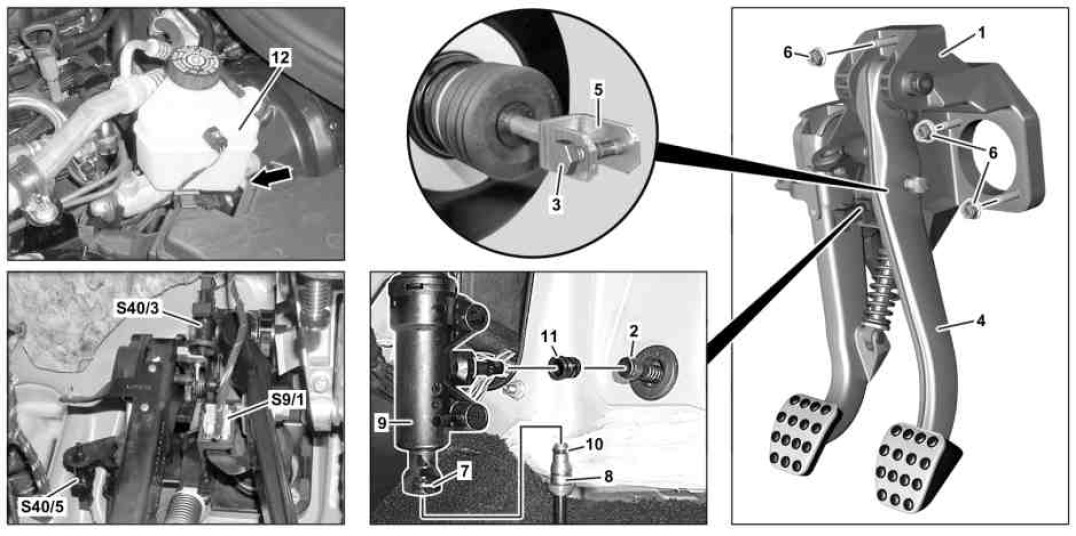

1 Pedal assembly
2 Filling hose
3 Security bolt
4 Brake pedal
5 Clevis
6 Nuts
7 Securing clamp
8 Hydraulic line
9 Master cylinder
10 O-ring
11 Sealing ring
12 Brake fluid expansion reservoir
S9/1 Stop lamp switch
S40/3 Clutch pedal switch
S40/5 Start enable clutch pedal switch














129 589 00 91 00
Set of stop plugs
