AR29.10-P-0300W Remove/Install Pedal Assembly

AR29.10-P-0300W Remove/Install Pedal Assembly
MODEL 166
MODEL 172 with TRANSMISSION 722

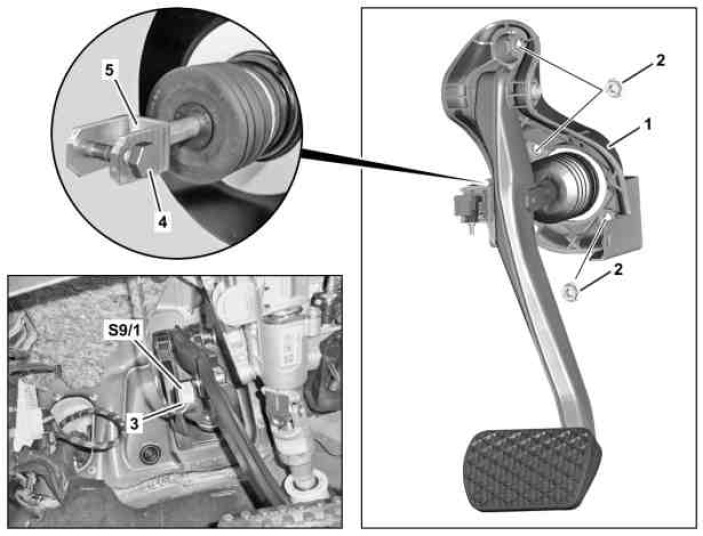

Shows model 172

1 Pedal assembly
2 Nuts
3 Electrical connector
4 Security bolt
5 Clevis

S9/1 Stop lamp switch

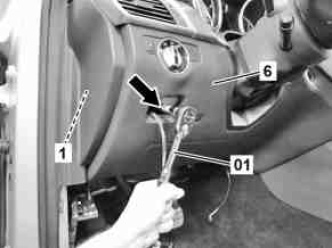

Shows model 166

01 Tool
1 Pedal assembly
6 Instrument panel lower section
