Clutch Master Cylinder: Service and Repair

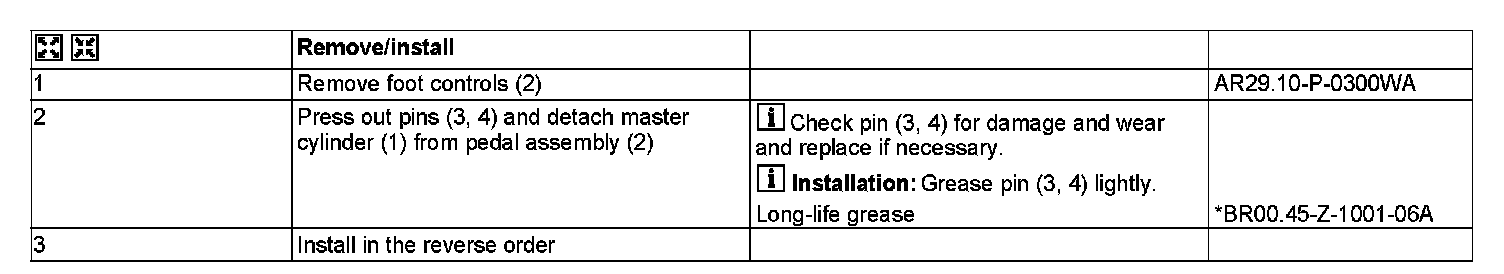

AR25.20-P-0100W Remove/Install Master Cylinder
MODEL 172 with TRANSMISSION 711.6, 716.6

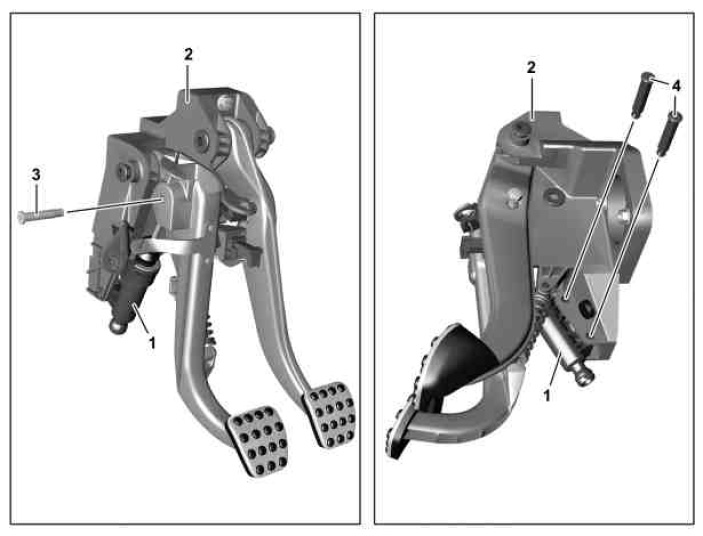

1 Master cylinder
2 Pedal assembly
3 Pin
4 Pin
