AR27.60-P-0901W Remove/Install Electronic Selector Lever Module (ESM)

AR27.60-P-0901W Remove/Install Electronic Selector Lever Module (ESM)
TRANSMISSION 722.9 in MODEL 172

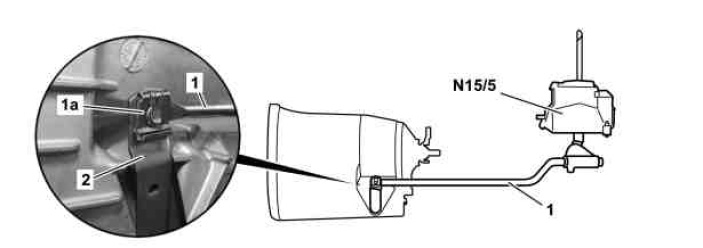

1 Shift rod
1a Locking plate
2 Range selector lever

N15/5 Electronic selector lever module control unit

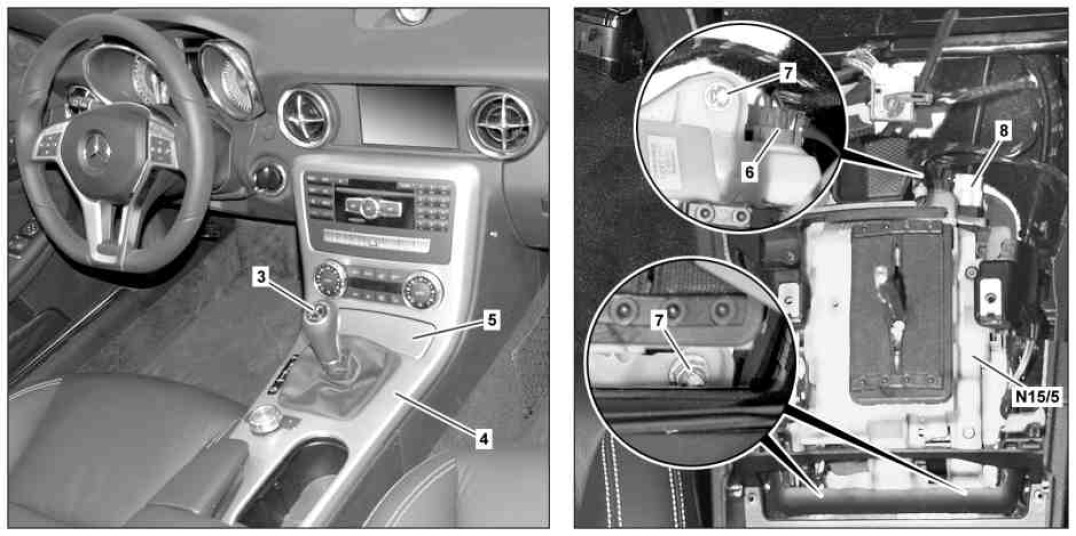

3 Selector lever handle
4 Center console trim
5 Stowage compartment or ashtray housing
6 Electrical connector
7 Nut
8 Ignition lock control cable

N15/5 Electronic selector lever module control unit
