Shift Linkage: Service and Repair
AR27.60-P-0990VA Remove/install and set shift rod

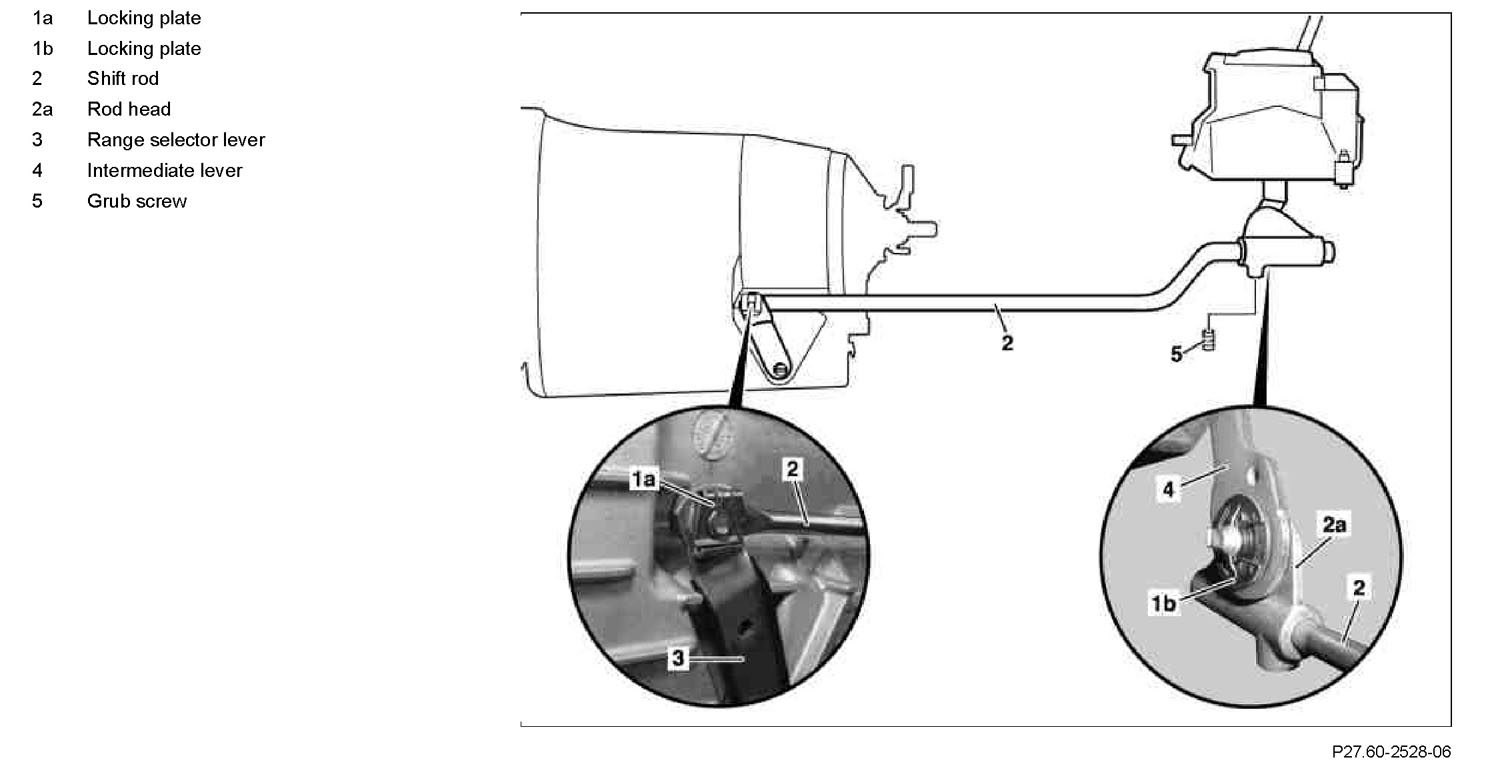

Component Identification:

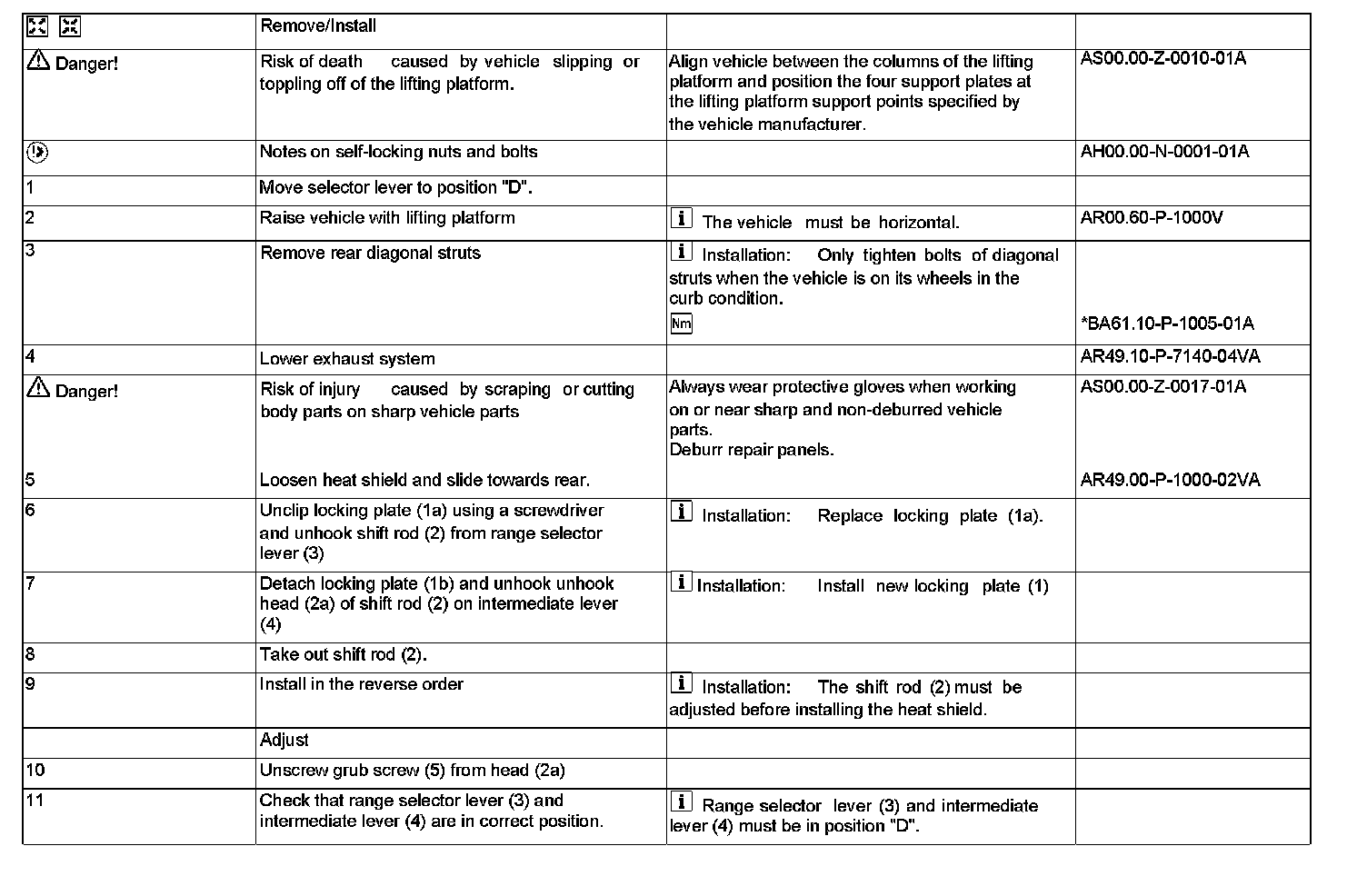

Steps 1 - 11:

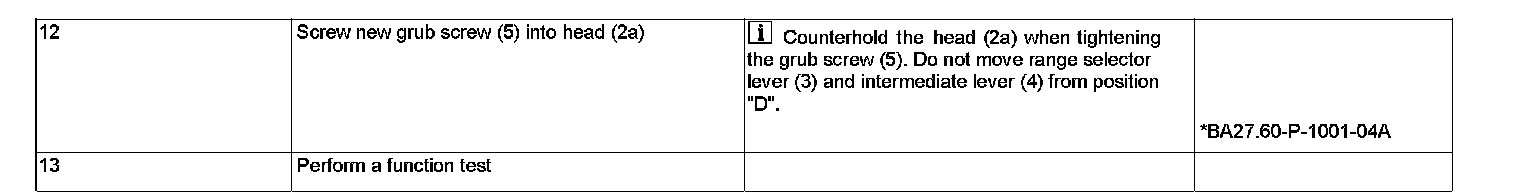

Steps 12 - 13:

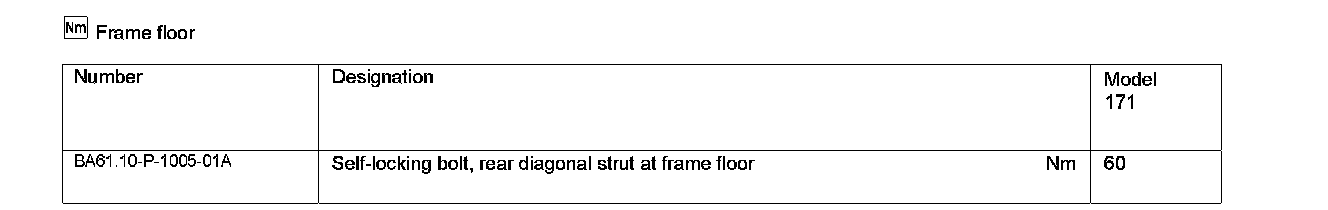

Frame Floor:

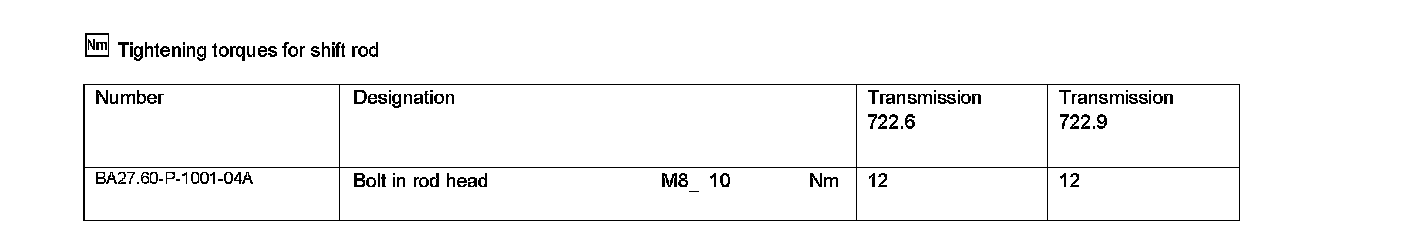

Tightening Torques For Shift Rod:
