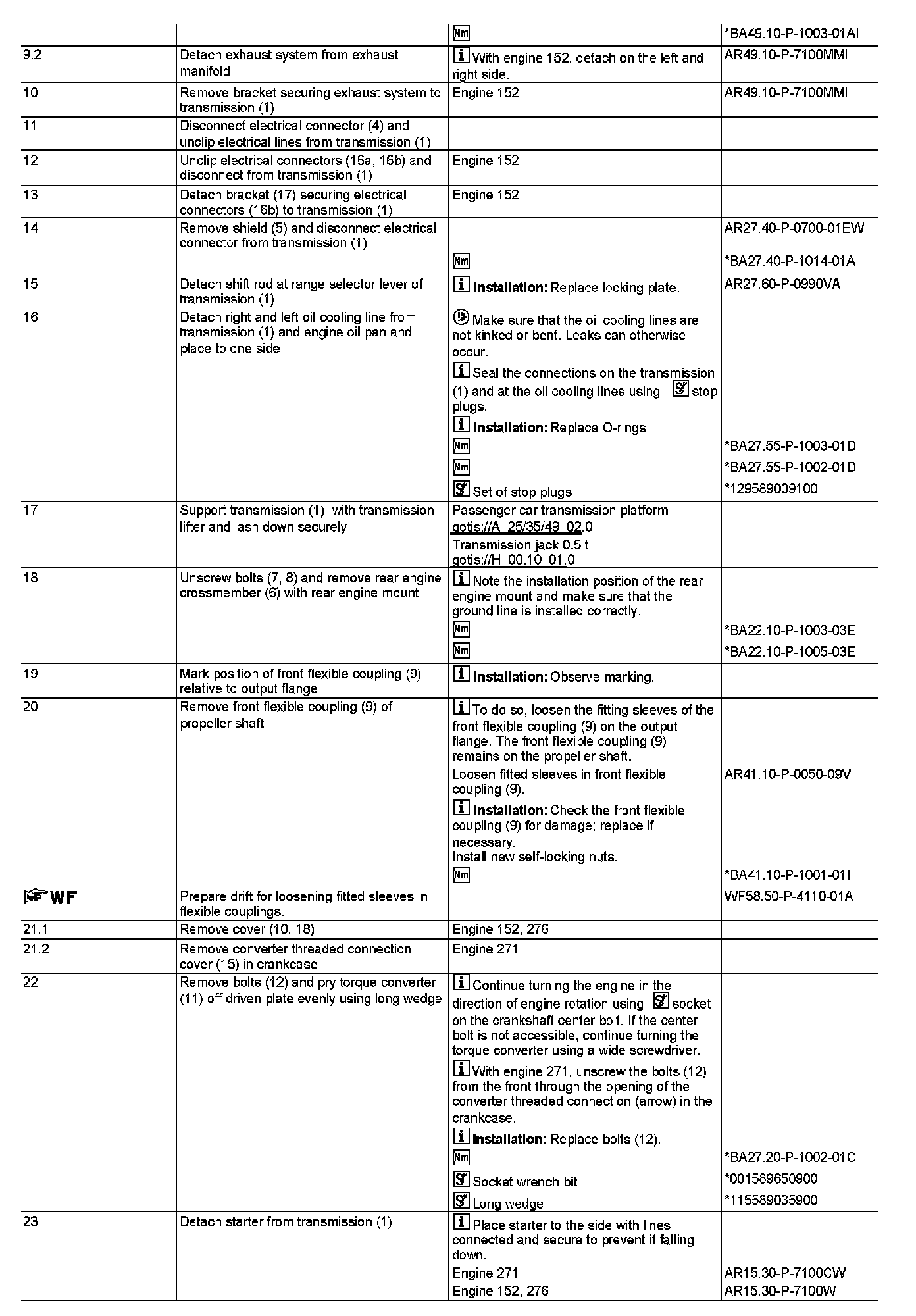

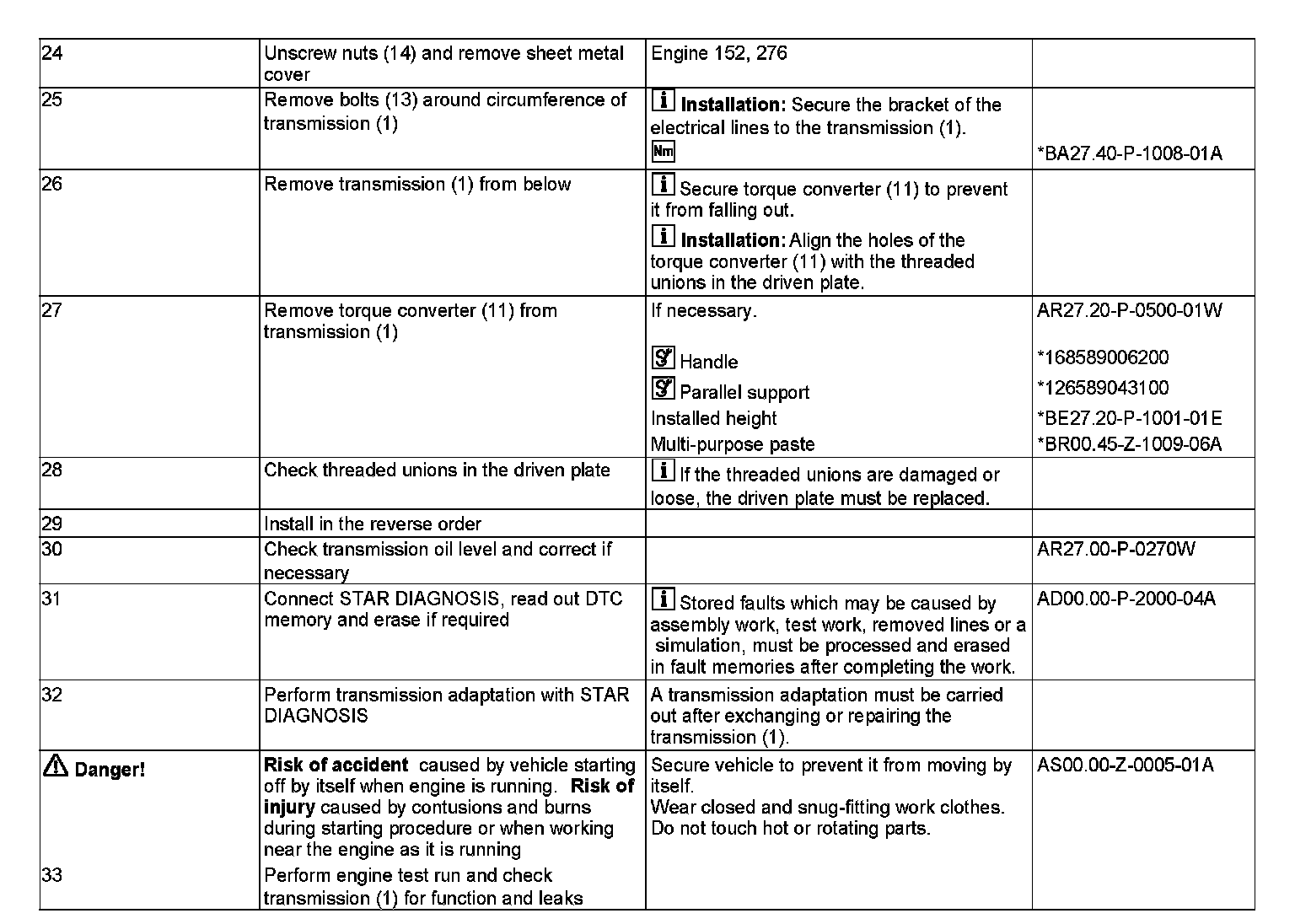

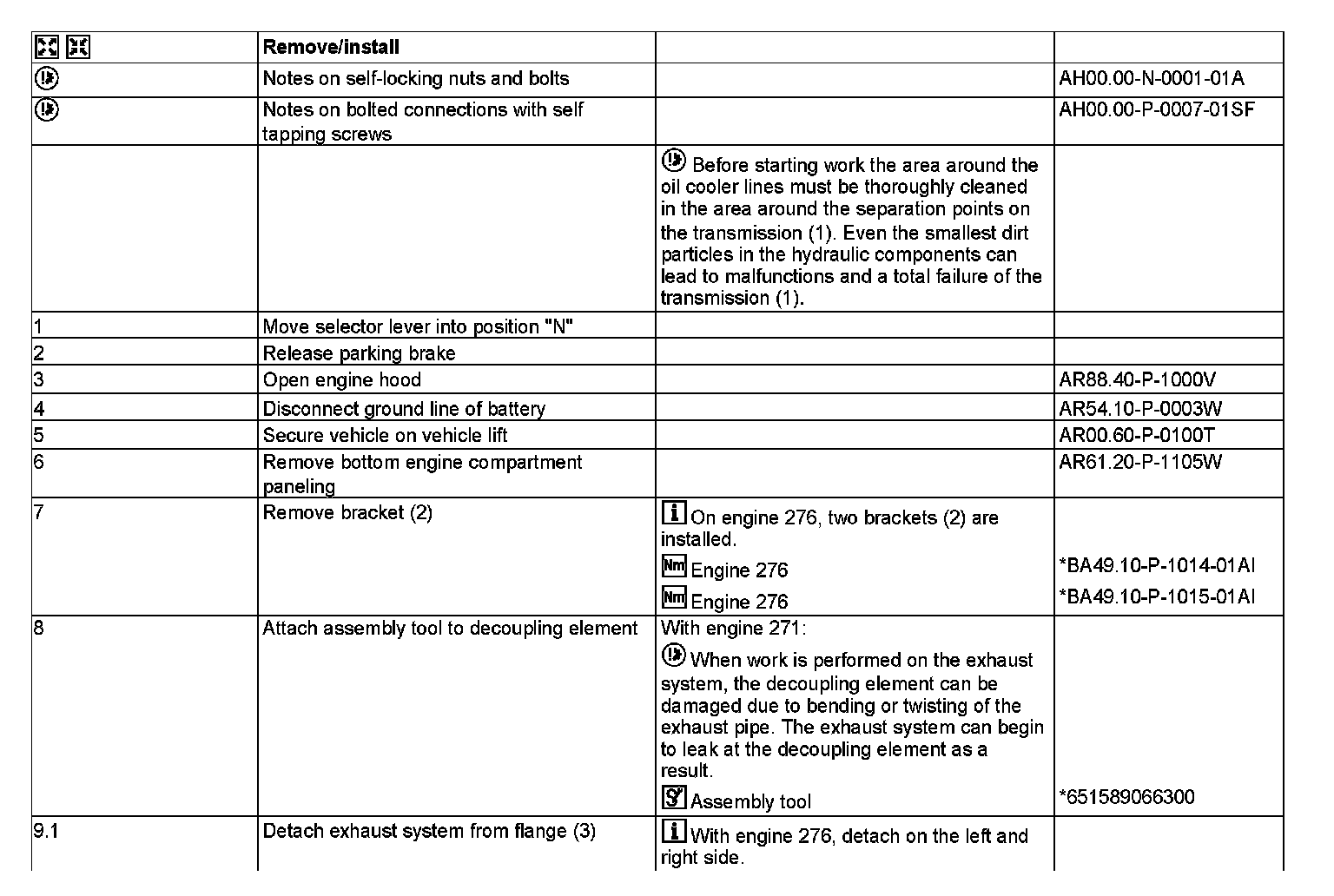

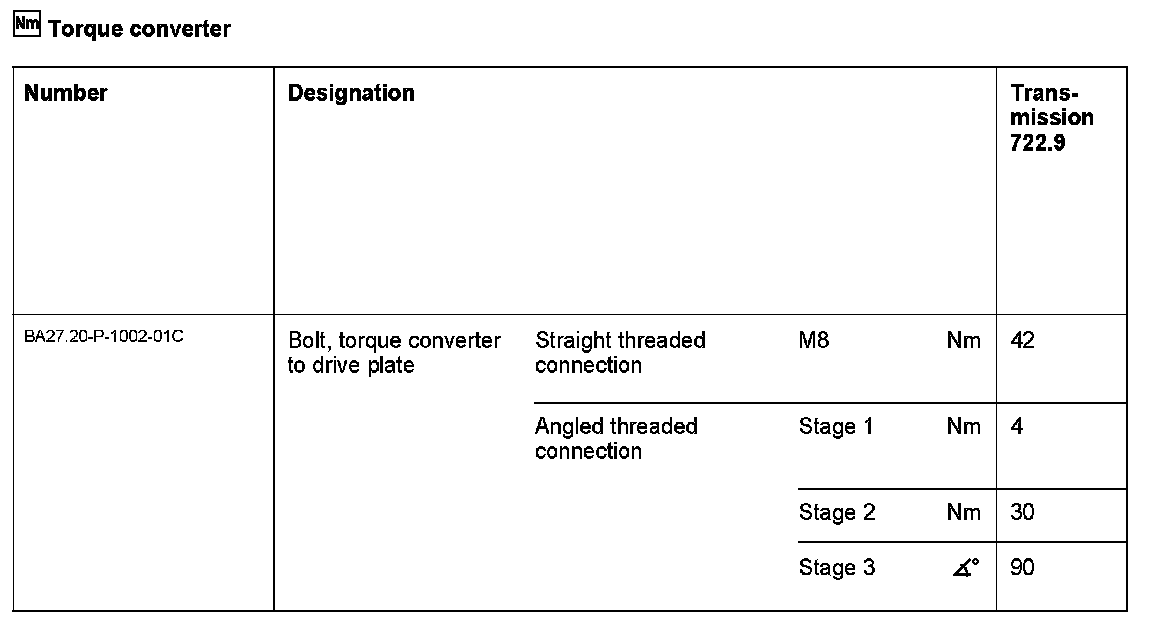

AR27.10-P-0500W Remove/Install Transmission With Torque Converter

AR27.10-P-0500W Remove/Install Transmission With Torque Converter
TRANSMISSION 722.9 in MODEL 172 with ENGINE 152, 271, 276





Shown on engine 276

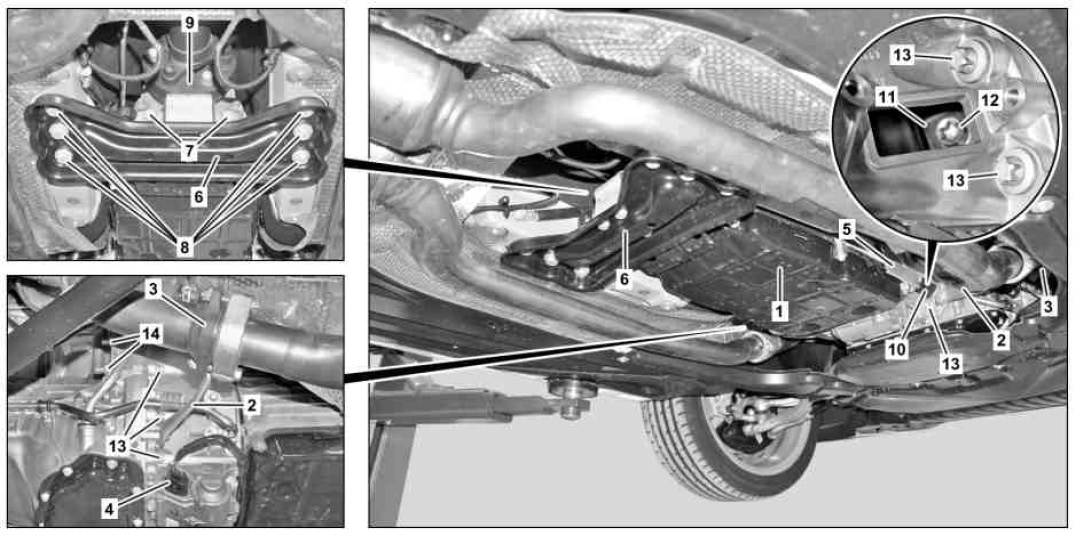

1 Transmission
2 Bracket
3 Flange
4 Electrical connector
5 Shield
6 Engine crossmember
7 Bolts
8 Bolts
9 Front flexible coupling
10 Cover (for engine 276)

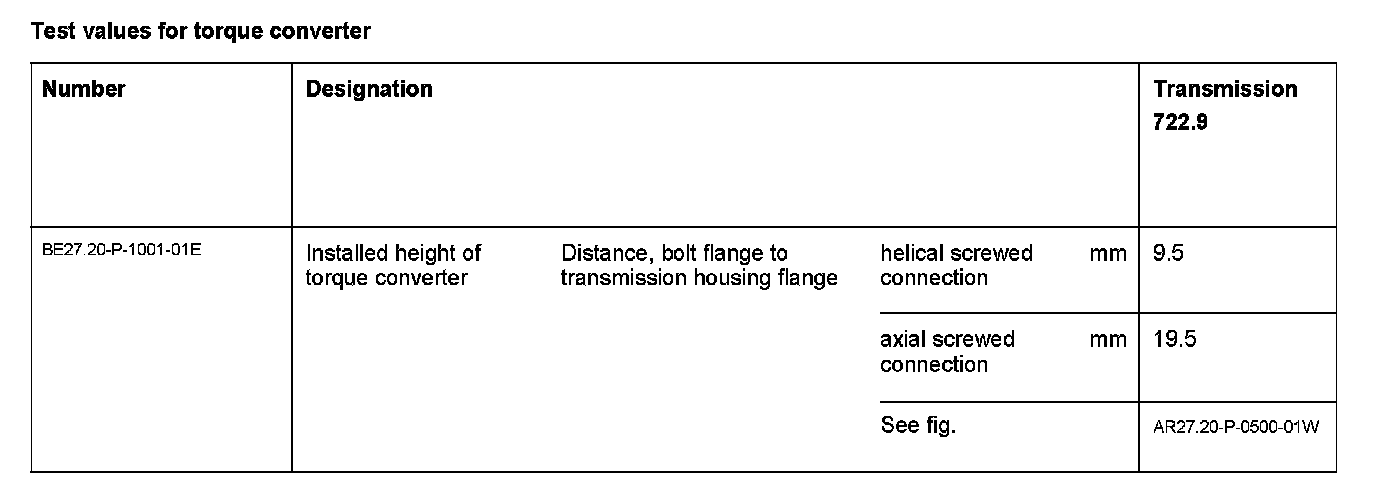

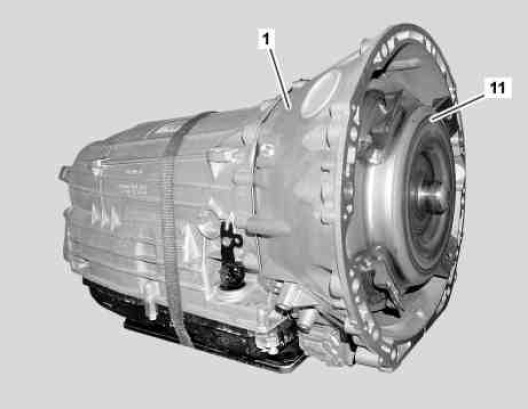

11 Torque converter
12 Screw
13 Screw
14 Nuts





Shown on engine 271

1 Transmission

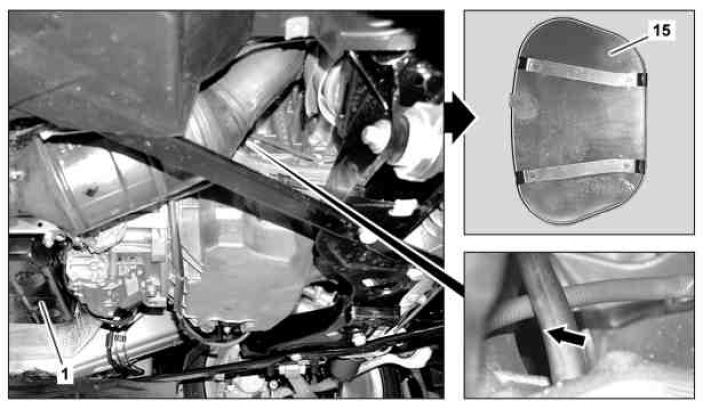

15 Converter threaded connection cover (with engine 271)

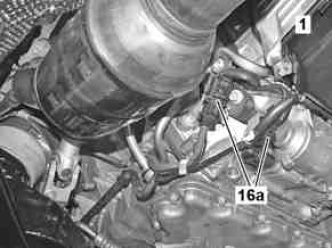

Shown on left side of transmission with engine 152

1 Transmission
16a Electrical connectors





Shown on right side of transmission with engine 152

1 Transmission

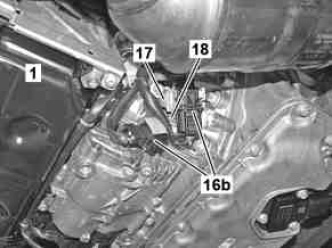

16b Electrical connectors
17 Bracket
18 Cover (for engine 152)





1 Transmission
11 Torque converter






































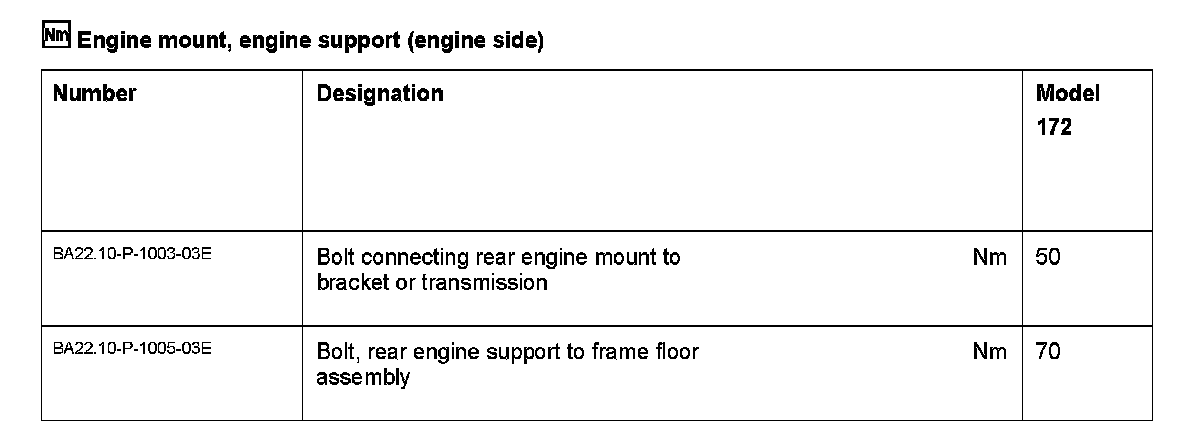

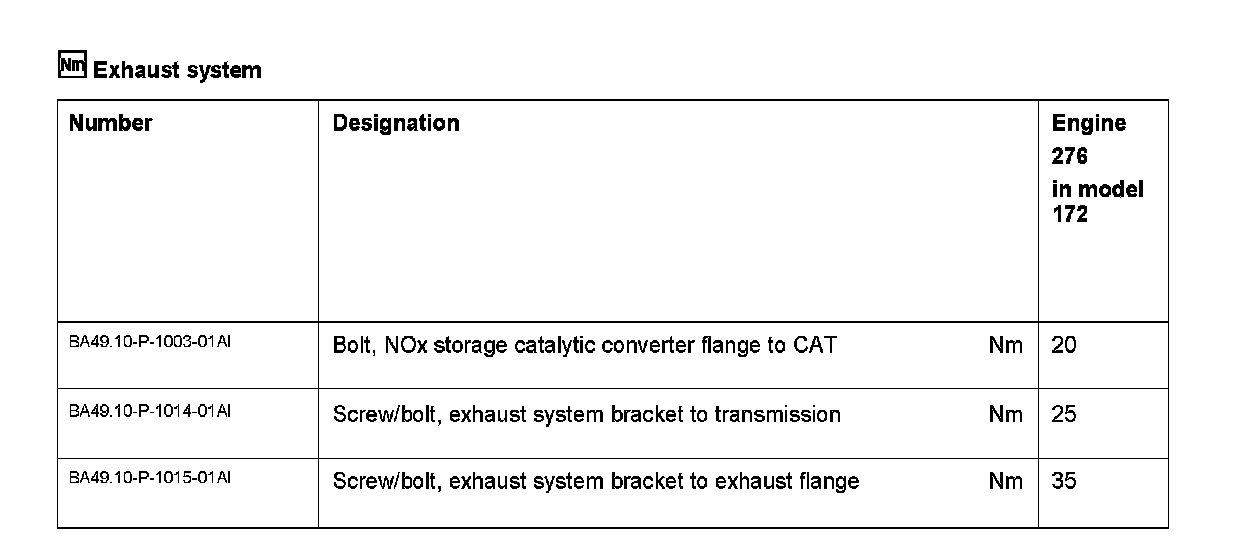

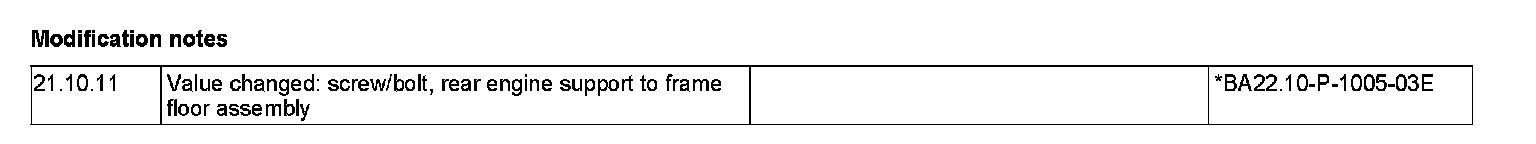

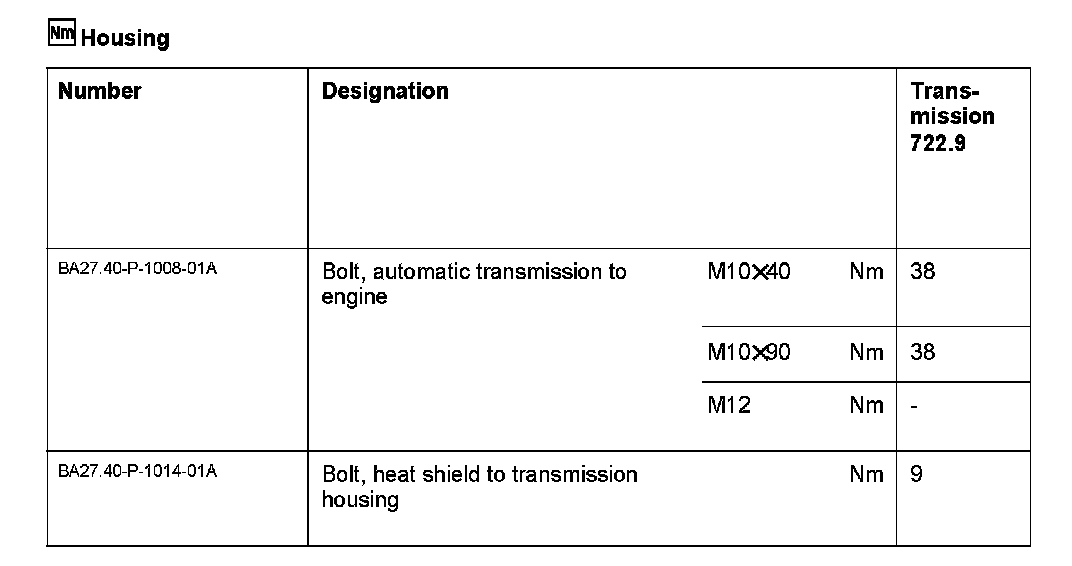

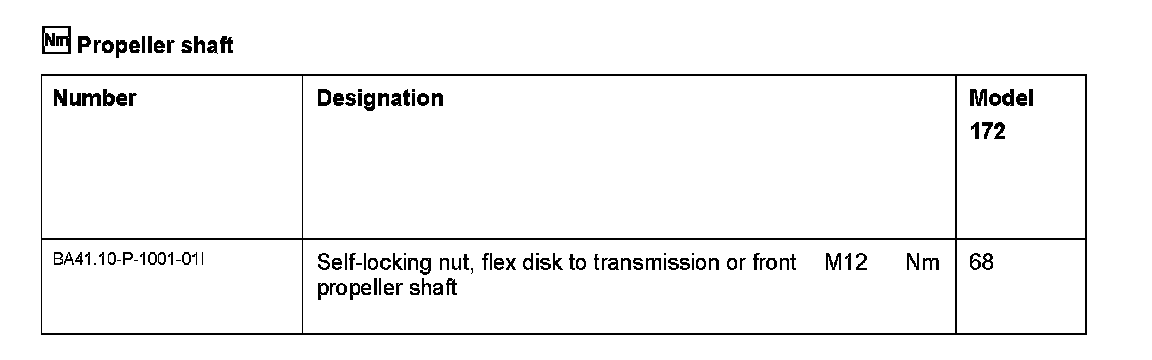

001 589 65 09 00
Wrench socket





115 589 03 59 00
Long wedge





126 589 04 31 00
Parallel support





129 589 00 91 00
Set of stop plugs





168 589 00 62 00
Grab handle





651 589 06 63 00
Assembly tool
