Seals and Gaskets: Service and Repair

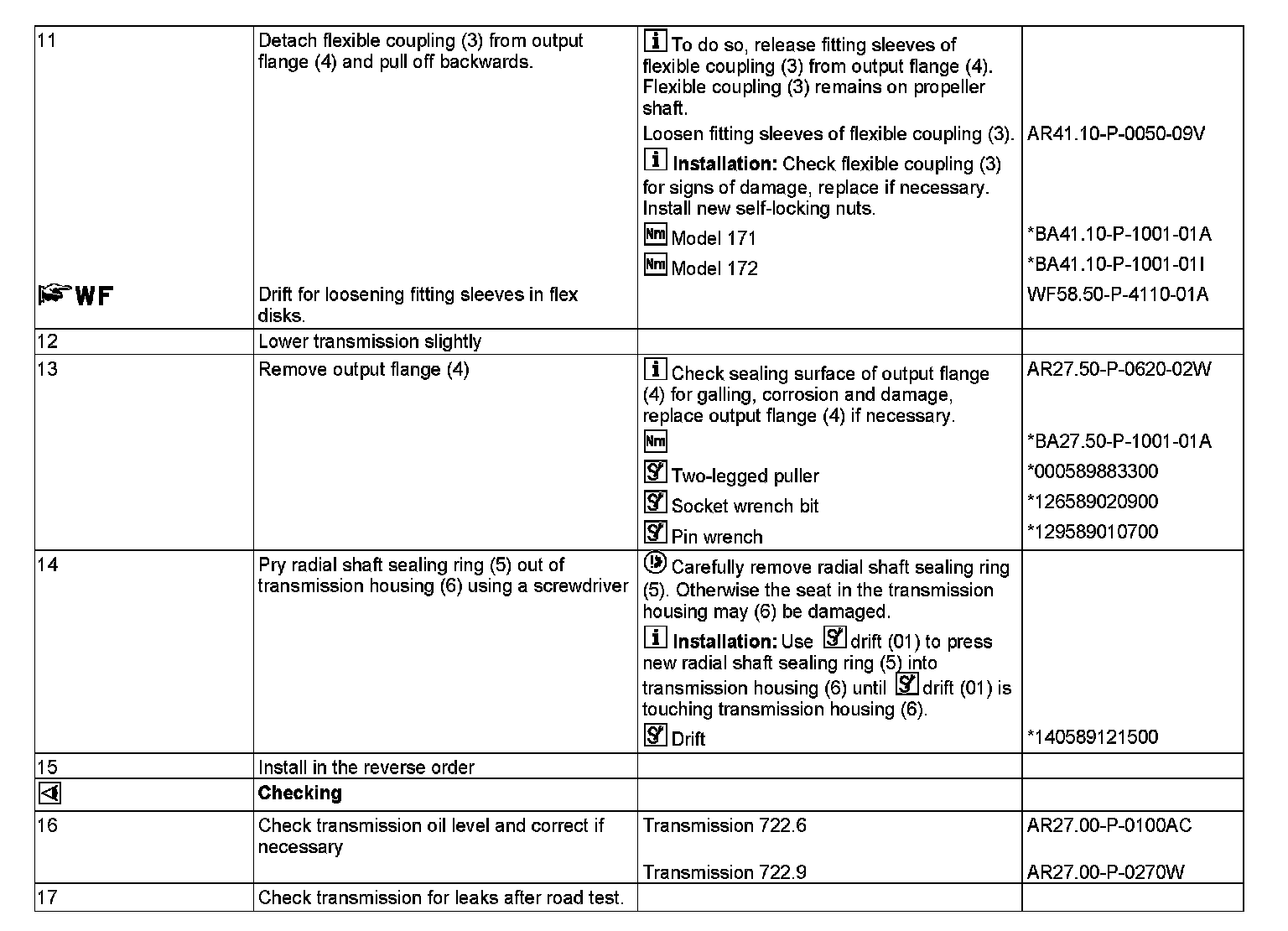

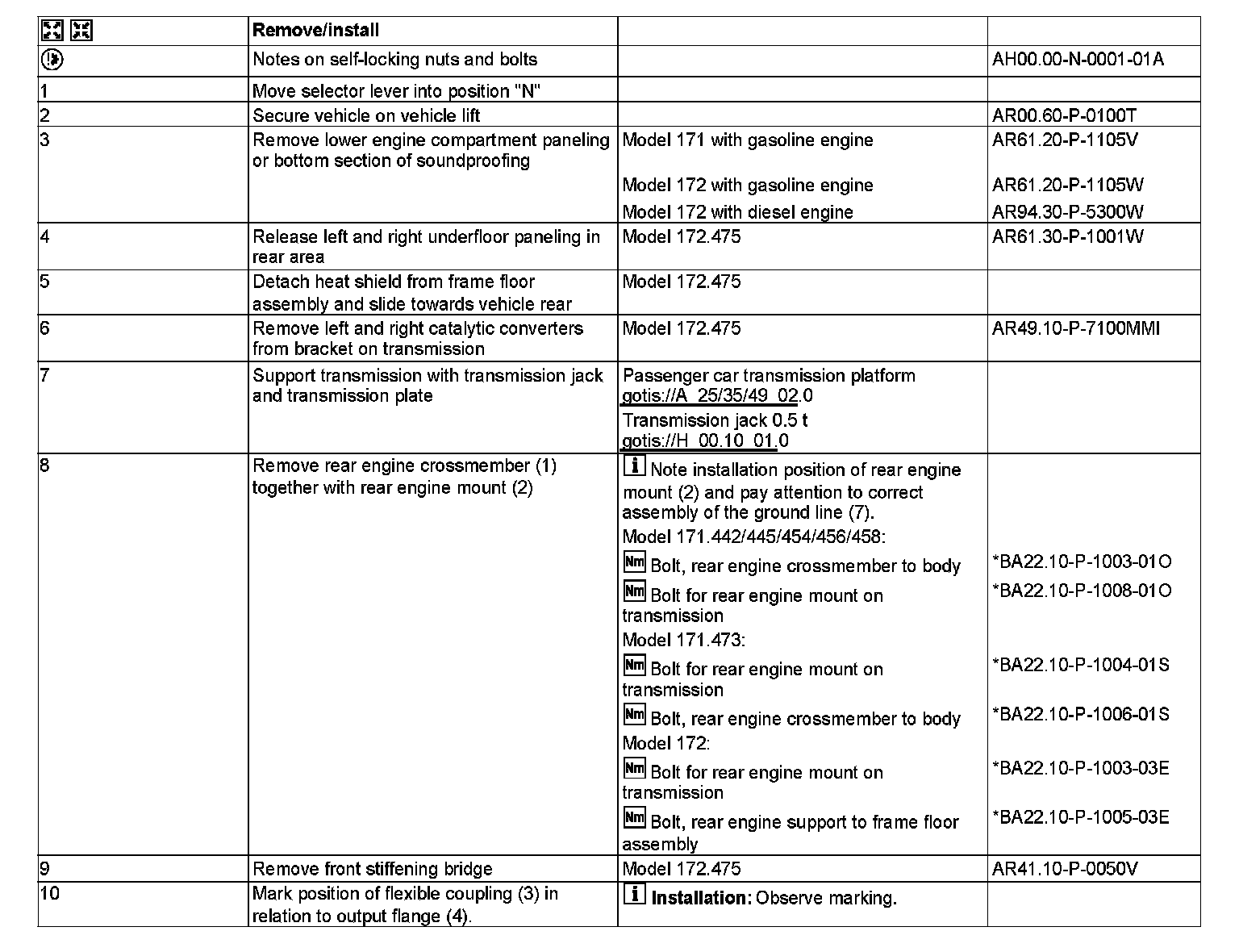

AR27.40-P-0205VA Remove/Install Radial Shaft Sealing Ring At Output Flange
TRANSMISSION 722.6 /9 in MODEL 171
TRANSMISSION 722.9 in MODEL 172





Shown on model 171.456

01 Drift
1 Rear engine crossmember
2 Rear engine mount
3 Flex disk
4 Output flange
5 Radial shaft seal
6 Transmission housing

7 Ground cable


























000 589 88 33 00
Two-armed puller





126 589 02 09 00
Wrench socket





129 589 01 07 00
Pin wrench





140 589 12 15 00
Drift
