AR27.55-P-0600W Remove/Install Oil Lines of Oil Cooling For Automatic Transmission

AR27.55-P-0600W Remove/Install Oil Lines of Oil Cooling For Automatic Transmission
TRANSMISSION 722.9 in MODEL 172 with ENGINE 271, 276

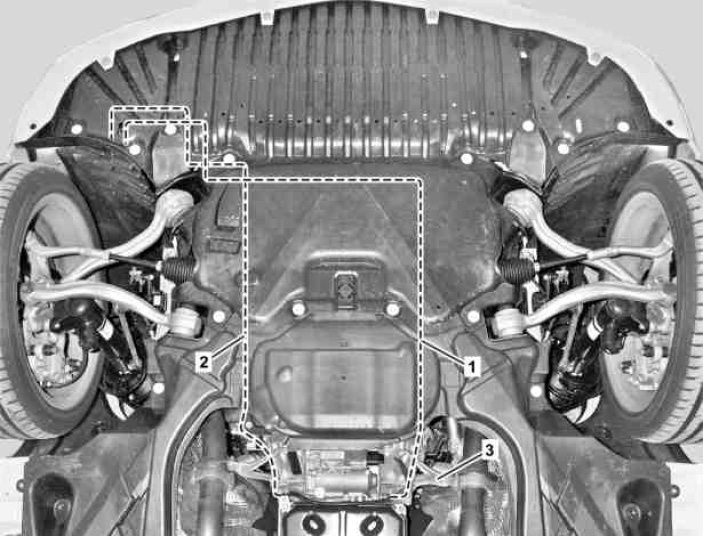

Shown on engine 276

1 Left oil cooling line
2 Right oil cooling line
3 Left exhaust pipe bracket

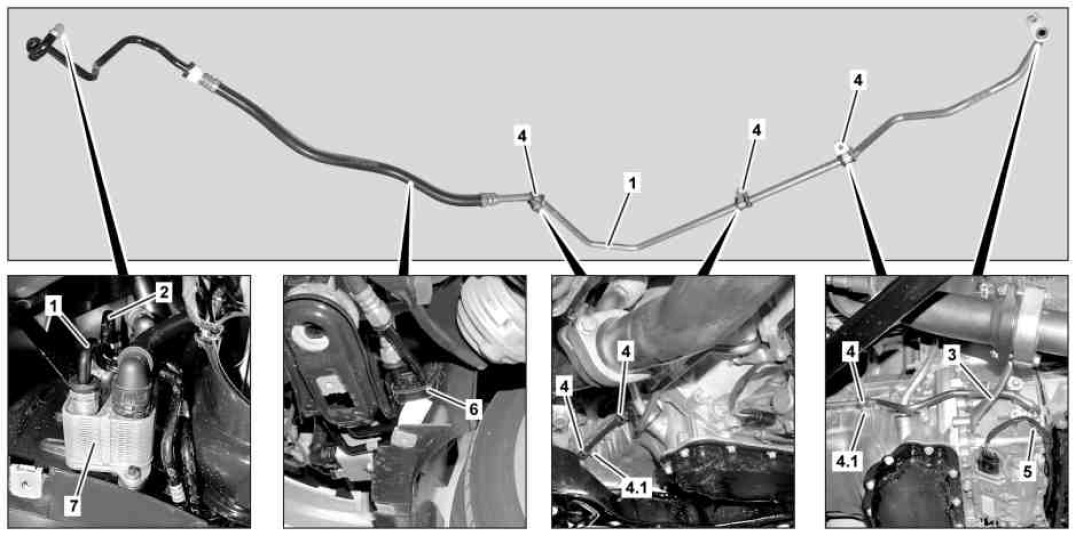

Shown on engine 276

1 Left oil cooling line
2 Right oil cooling line
3 Left exhaust pipe bracket
4 Clip
4.1 Screw
5 Screw
6 Bracket
7 Transmission oil heat exchanger

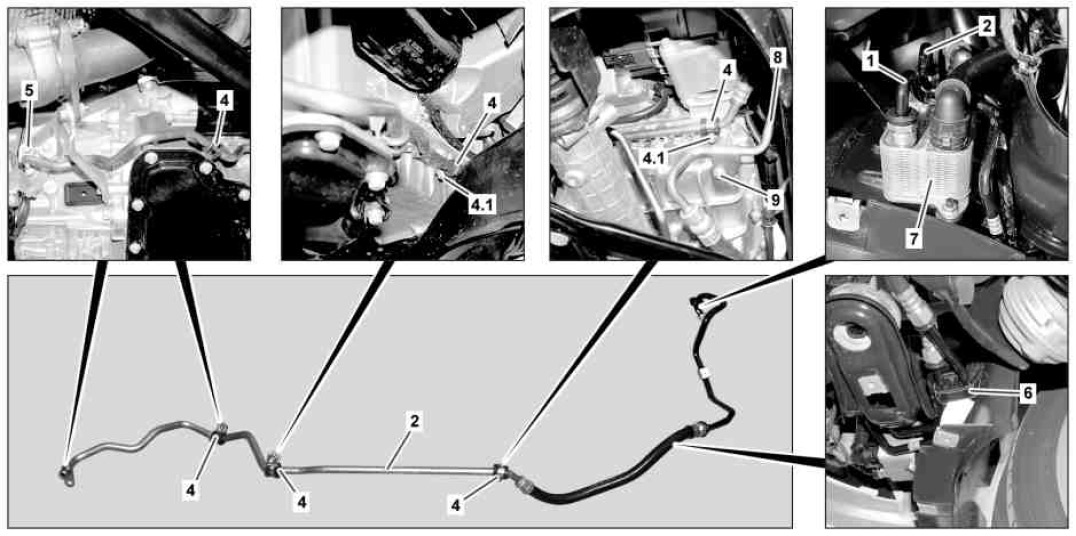

Shown on engine 276

1 Left oil cooling line
2 Right oil cooling line
4 Clip
4.1 Screw
5 Screw
6 Bracket
7 Transmission oil heat exchanger
8 Steering oil line
9 Screw














129 589 00 91 00
Set of stop plugs
