Torque Rod: Service and Repair

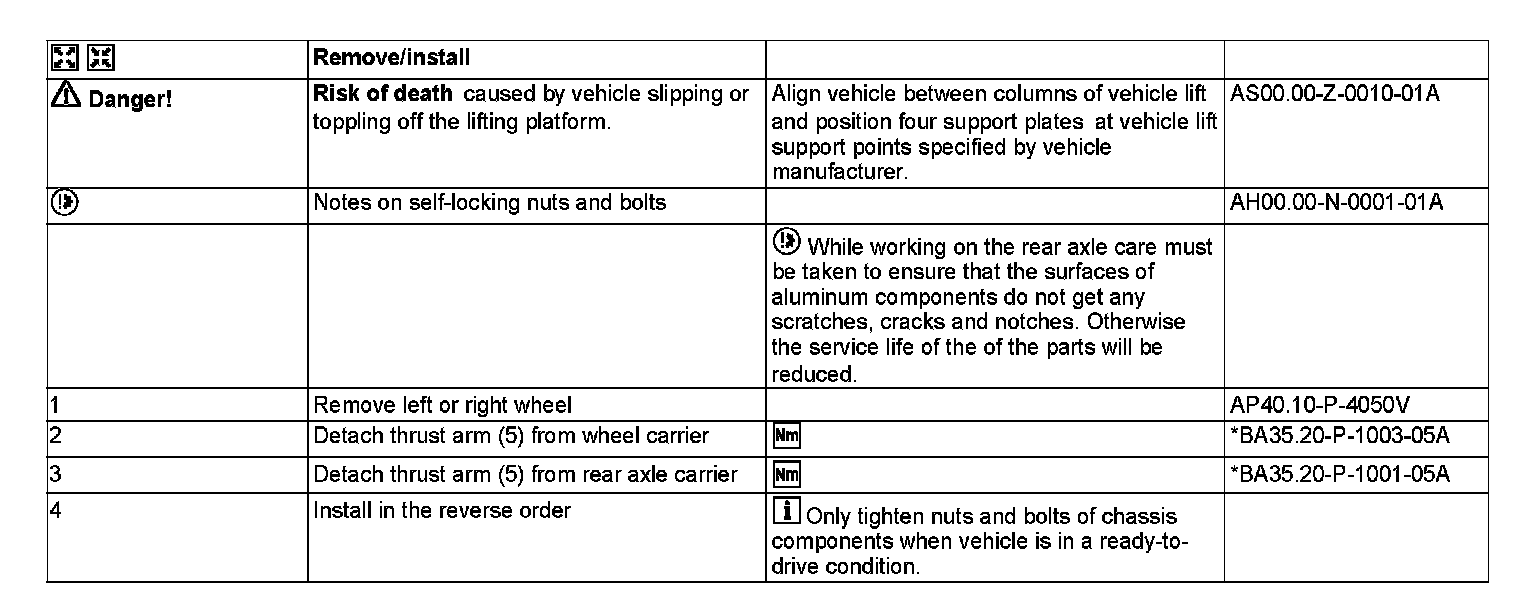

AR35.20-P-0113V Remove/Install Thrust Arm
MODEL 171, 172

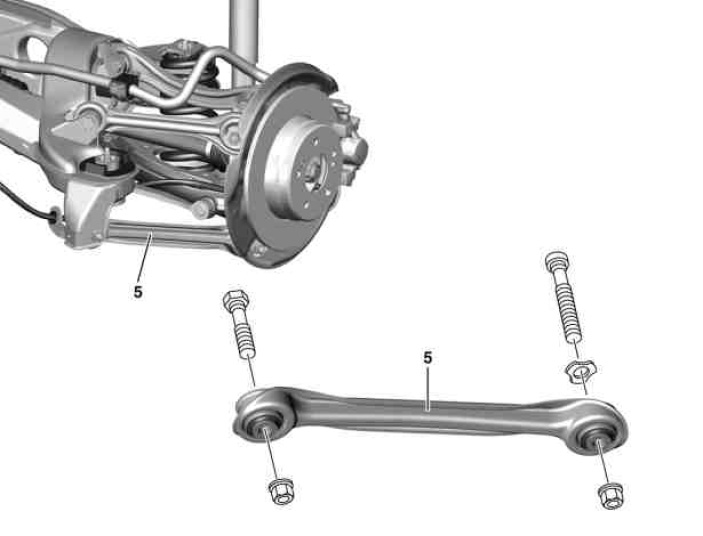

Illustrated on model 171

5 Thrust arm
