AR32.25-P-1017CW Remove/Install Suspension Strut

AR32.25-P-1017CW Remove/Install Suspension Strut
MODEL 172, 204, 207

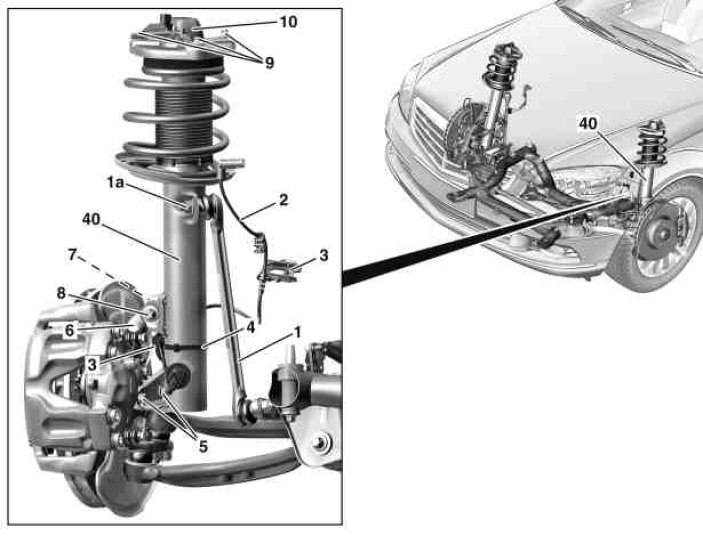

Shown on model 204.0/2 without 4MATIC

1 Link rod
1a Nut
2 Electrical line
3 Line bracket
4 Cable tie
5 Bolts
6 Steering knuckle
7 Nut
8 Screw
9 Bolts
10 Cap
40 Suspension strut

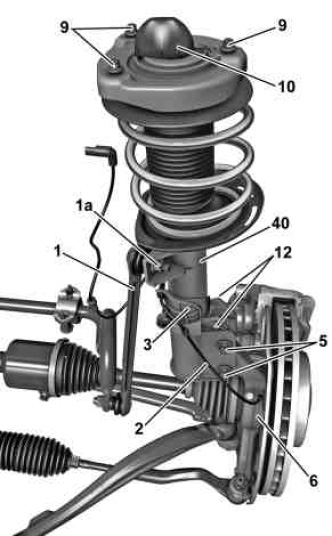

Illustrated on model 204.98

1 Link rod
1a Nut
2 Electrical line
3 Line bracket
5 Bolts
6 Steering knuckle
9 Bolts
10 Cap
12 Clips
40 Suspension strut





01 Drift
10 Cap
11 Retaining clamp
41 Spring cup

















164 589 01 37 00
Pliers
