AR32.25-P-1018CW Disassemble/assemble
suspension
strut

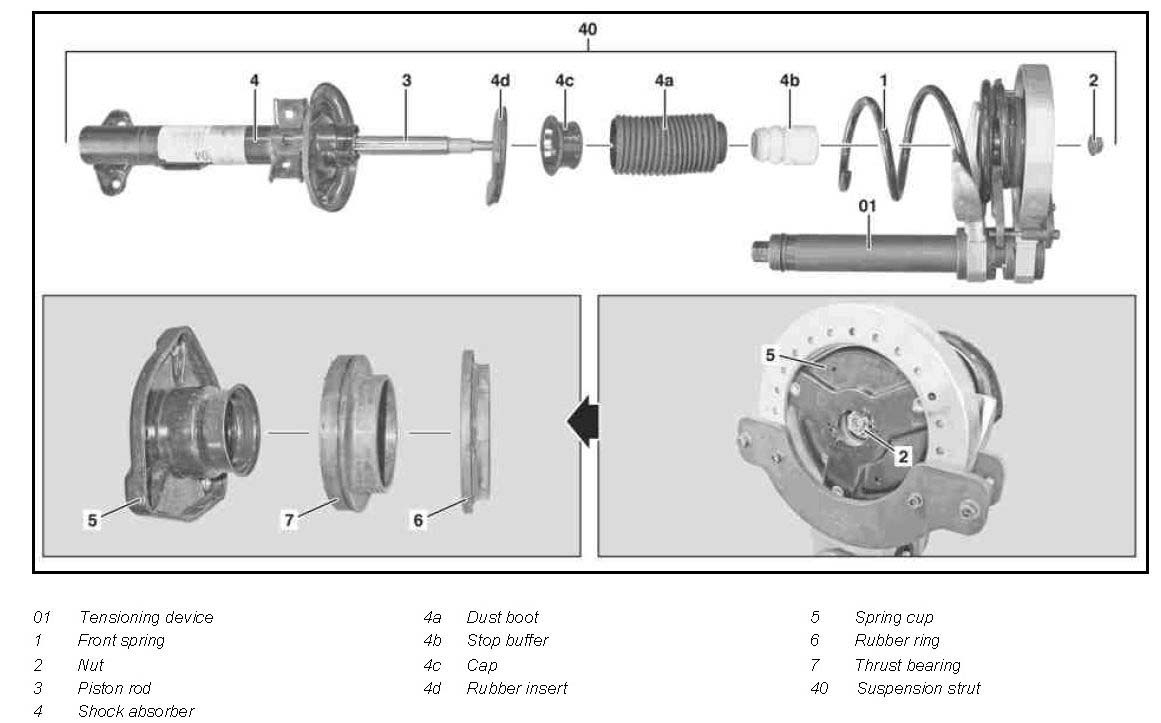

Component Identification:

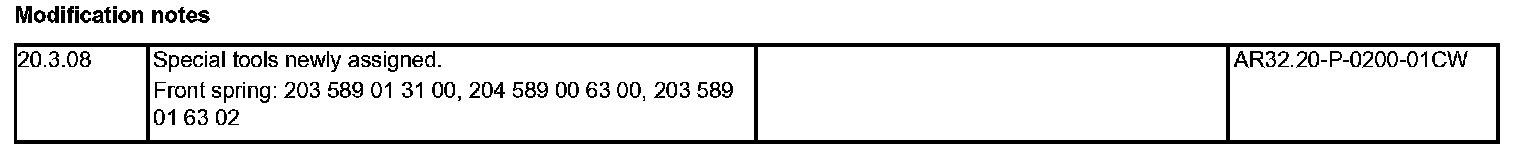

Modification notes:

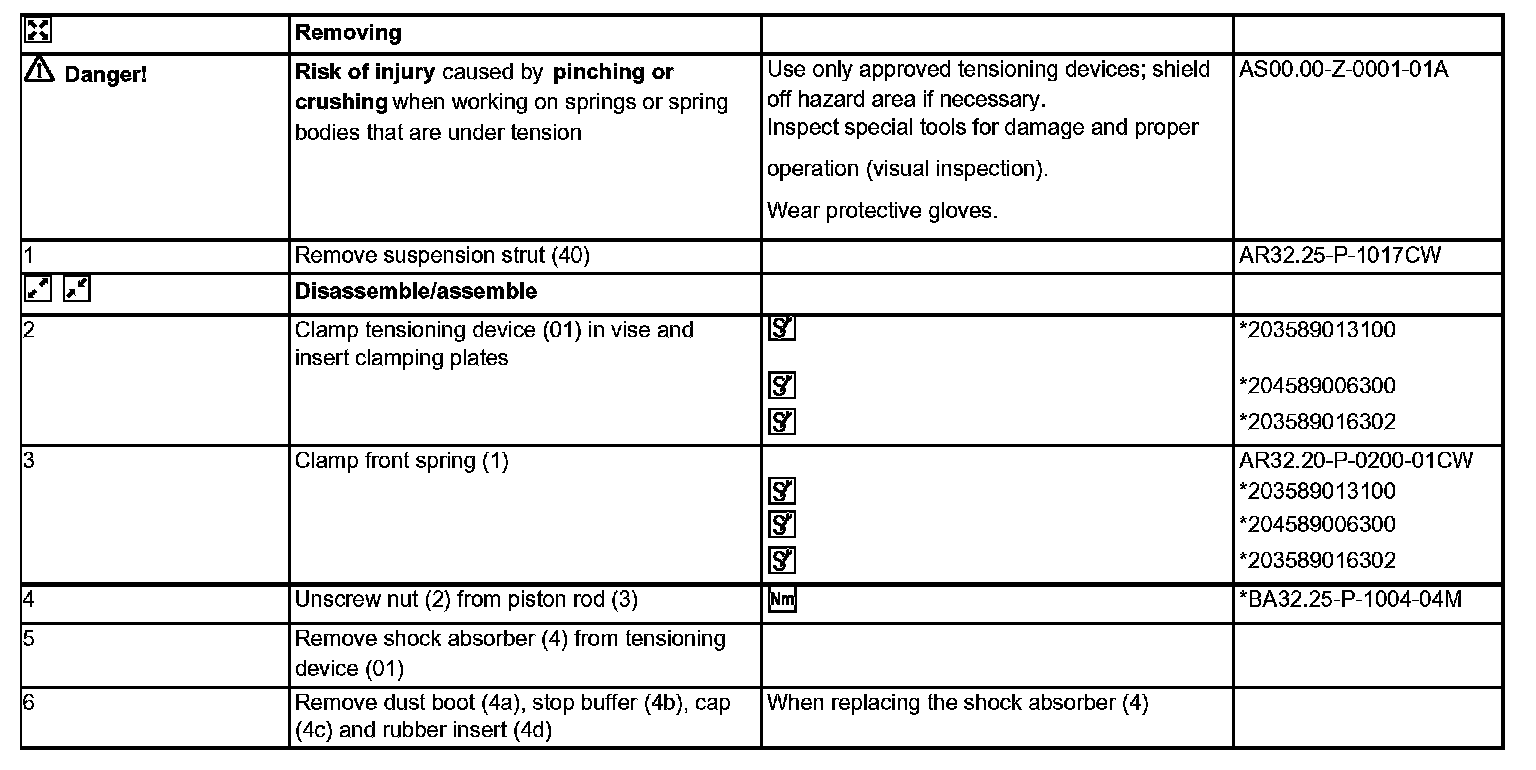

Steps 1-6:

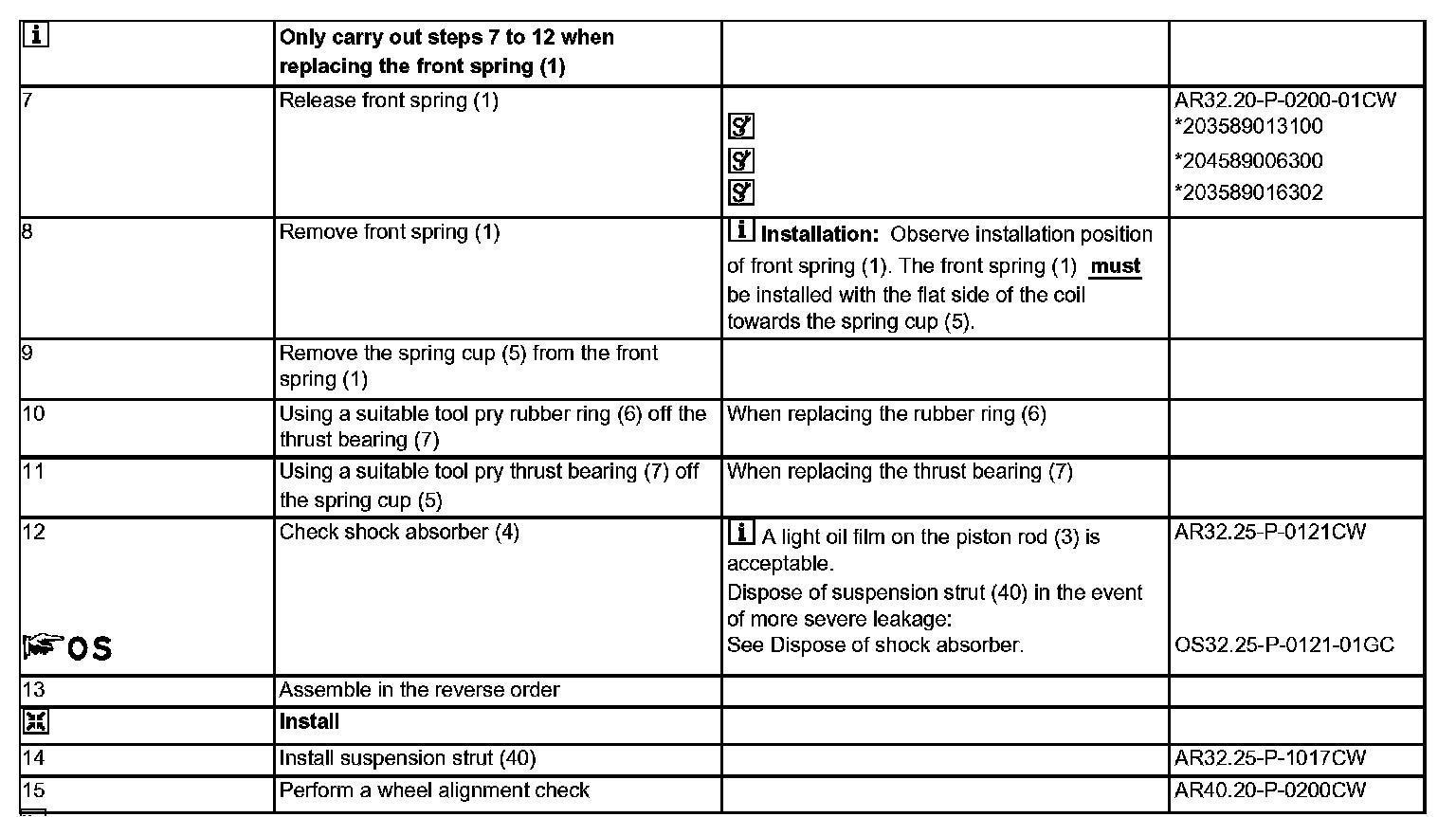

Steps 7-15:

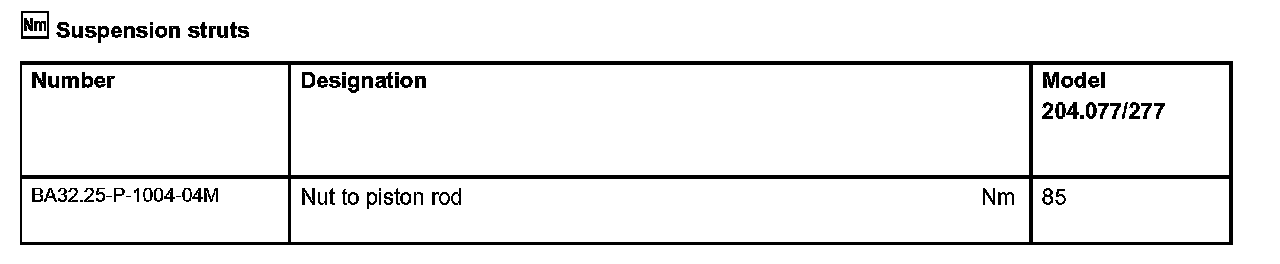

Suspension struts:
Suspension struts:

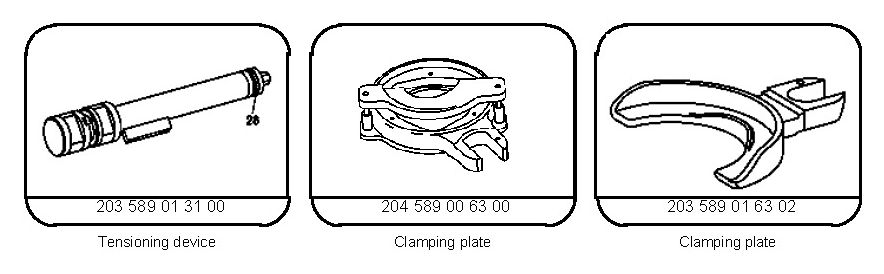

Special Tools:
