AR32.20-P-0230V Remove/install rear spring

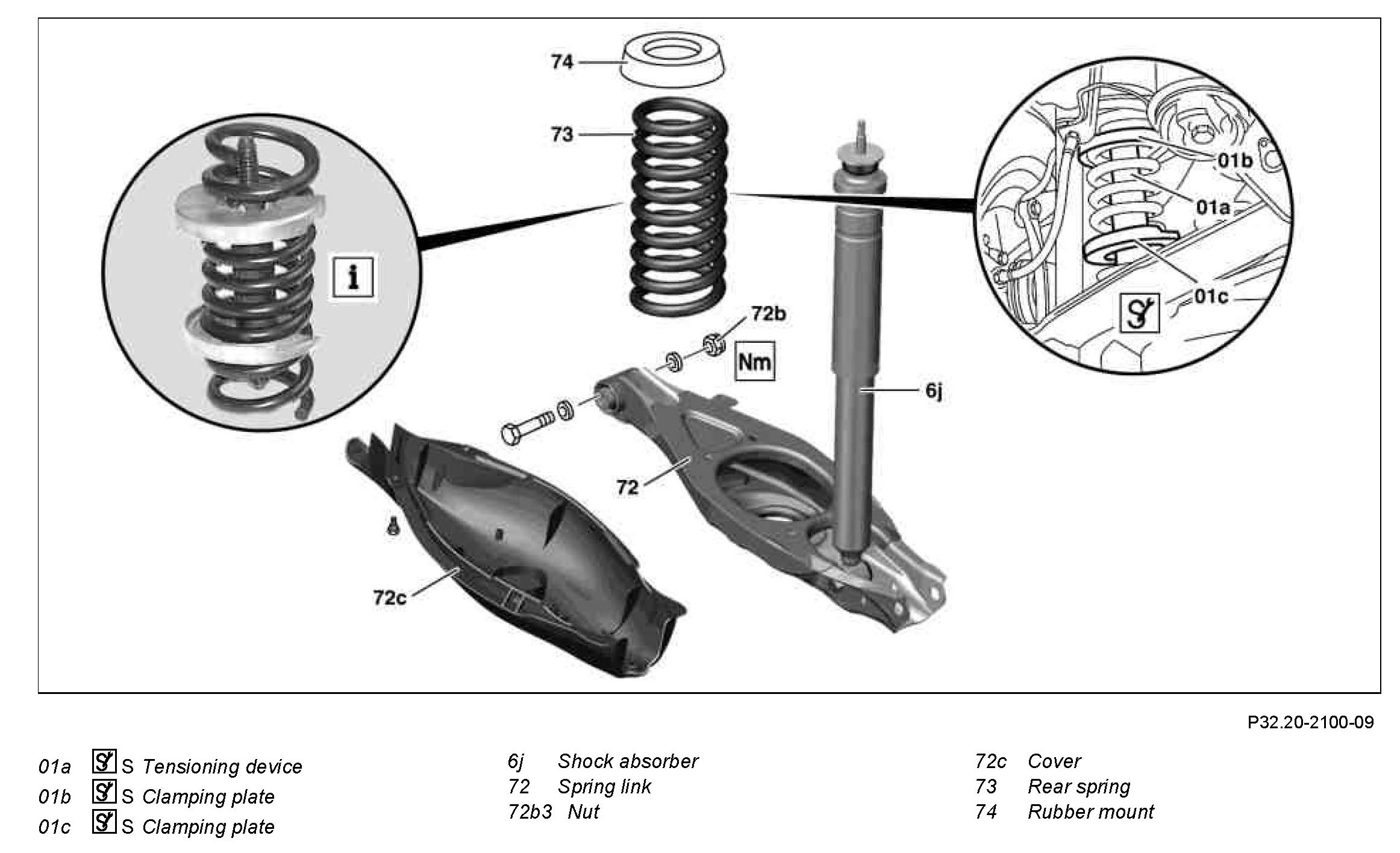

Component Identification:

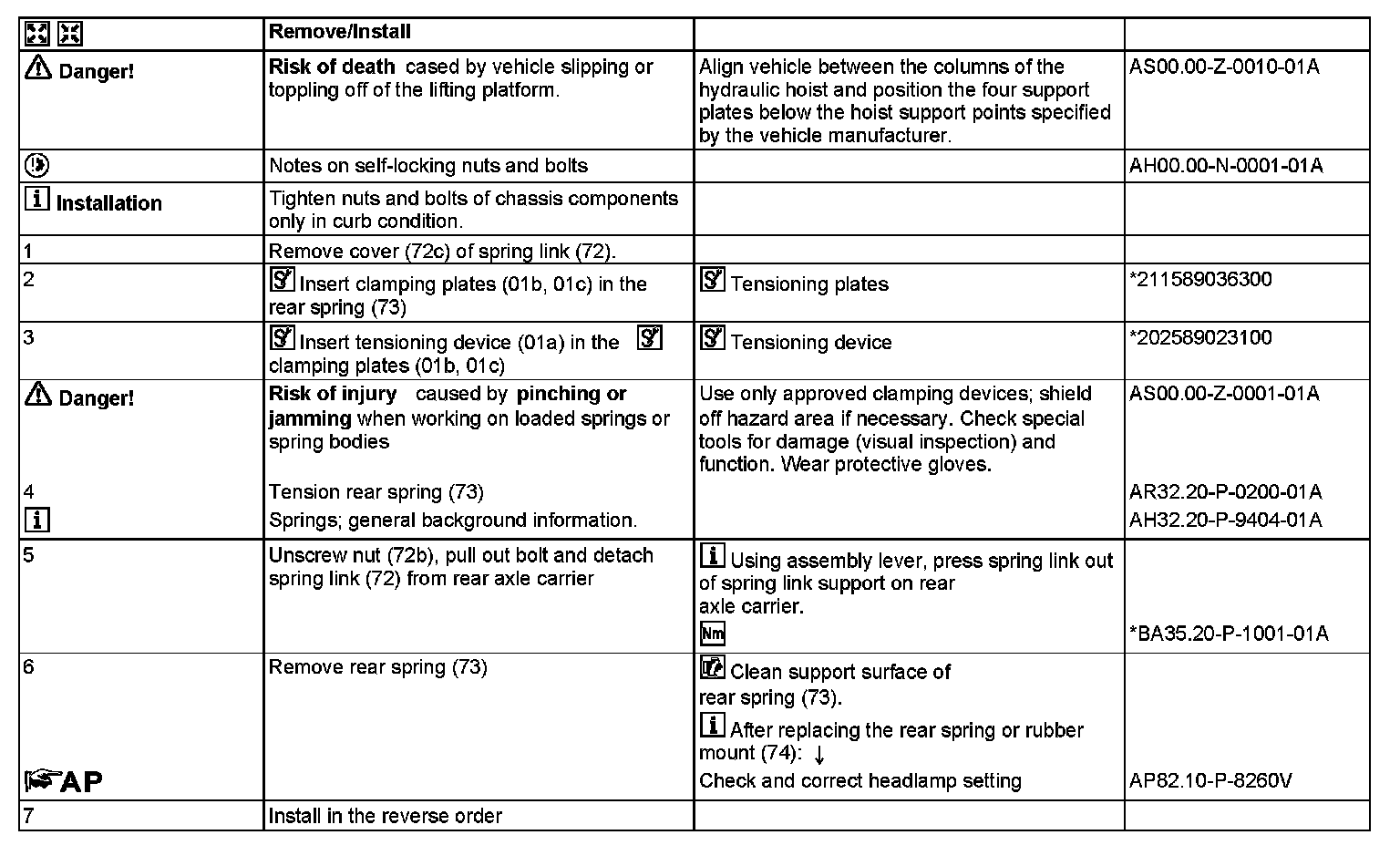

Steps 1-7:

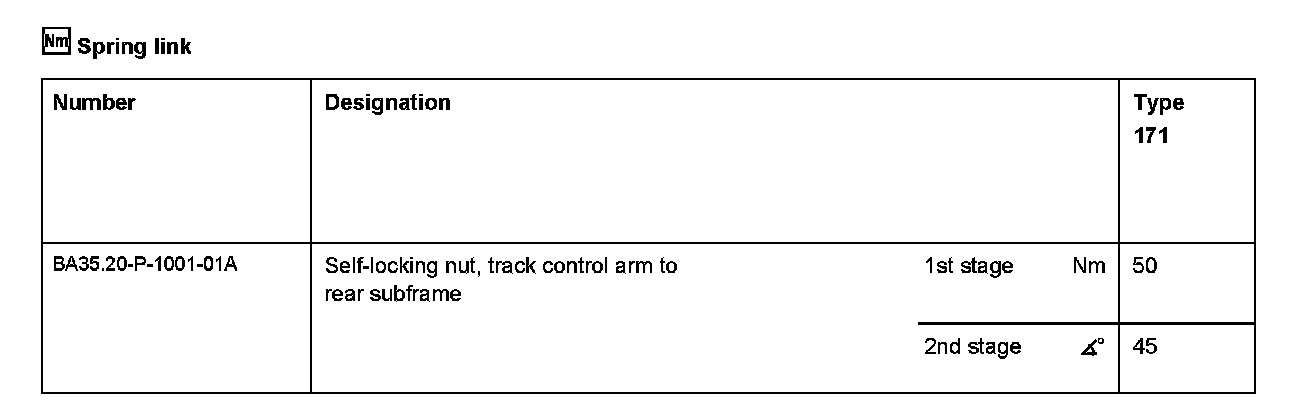

Spring Link:

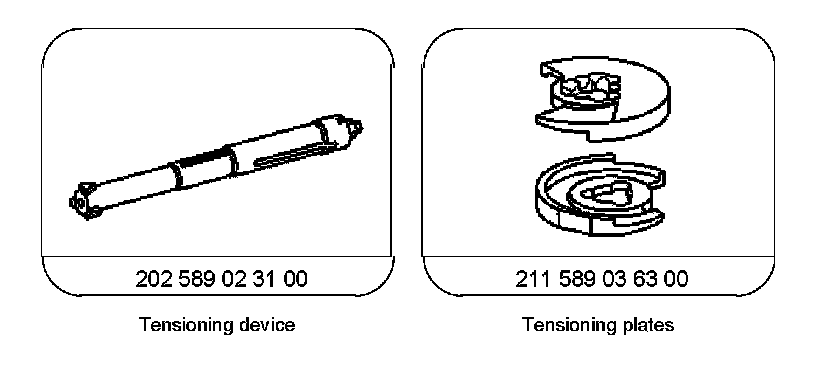

Special Tools:
